VOLT

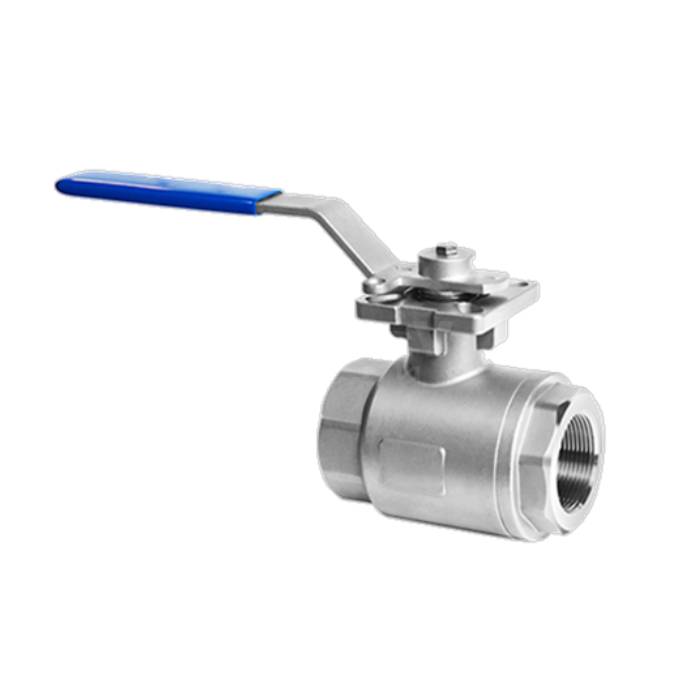

3000 PSI High Pressure Ball Valve - Stainless Steel
SKU BV5184
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- High Pressure Ball Valve
- CF8M Stainless Steel Body
- Screwed BSPP (NPT on request)
- ISO 5211 Mounting Pad
- 3000 PSI (PN250) Pressure Rating
- -20°C to +80°C
- Supplied with Lever Handle
- Sizes: 1/2" to 2"
Description
This 2 Piece Stainless steel standard bore High Pressure Ball Valve offers rugged reliability over a range of high pressure applications.
Offered in screwed BSPP end connections (NPT available on request), the valve is investment cast in ASTM A315 CF8M Stainless Steel.
For manual operation, the valve is supplied with a lockable and insulated lever, however for automation the valve is easily actuated due to the ISO5211 mounting pad.
The valve has a maximum pressure rating of 3000 PSI and working temperatures of -20°C up to 80°C.
Typical uses are on high pressure liquid and gas applications (excluding Oxygen).
A maintenance free, lever operated ball valve. NOT suitable for Oxygen duties. Tested to API598
Technical specification
- End Connection
- BSP, BSPP
- Body Material
- Stainless Steel
- Seat Material
- Delrin
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 2 Piece, Female x Female
- Industry / Approvals
- High Pressure
- Lever
- Lockable Manual Lever
- Temperature Range
- -20°C to +80°C
- Pressure
- 3000 PSI Rated
- Actuatable?
- Yes
- Main Features
- Screwed BSP Sizes: 1/2" to 2" 3000 PSI Pressure Rating
