Images are illustrative and may not show every size or variation.
VOLT

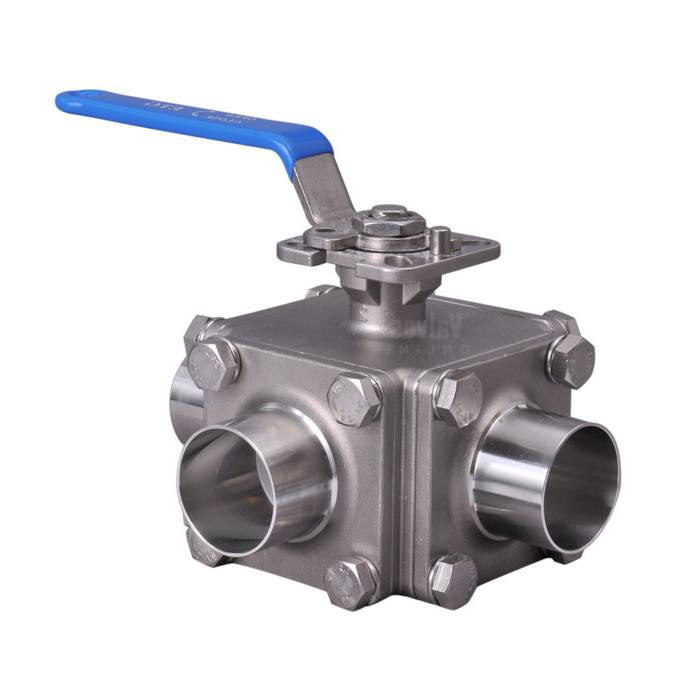

3 Way Sanitary Weld End Direct Mount Ball Valve
SKU BV5103
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- 3 Way Sanitary Weld Ball Valve
- ASTM A315 CF8M 316 Stainless Steel Body
- 316 Trim
- Virgin PTFE Seals
- Cavity Filled Ball Seats
- 3 Way, L or T Port
- ISO 5211 Mounting Top for Easy Actuation
- OD Weld End Connections to Suit Imperial O/D Tube
- Sizes: 1/2" to 4"
- Full Bore (except 4") Suitable for use on Pigged Pipework
Description
Our Stainless-Steel ball valve is a 3 Way sanitary valve with ISO 5211 direct mount top works and O/D weld end connections suitable for imperial O/D tube.
This valve is fully maintainable and particularly suited for on / off and diverting operation, in food processing, pharmaceutical and high velocity sanitary applications.
Classed as a high-performance valve it has the benefit of full bore up to 3”, with cavity filled PTFE seats and is supplied with a lockable lever handle.
Suitable for CIP / SIS in-line cleaning.
All sanitary valve components are cleaned and inspected to ensure they are free from contamination of grease, dust and additional hydrocarbon residues.
Stainless Steel Ball Valve 3 Way Hygienic Direct Mount Weld End Datasheet
Technical specification
- End Connection
- Butt Weld OD
- Body Material
- Stainless Steel
- Seat Material
- Cavity Filled PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Way, Full Bore
- Industry / Approvals
- Hygienic
- Lever
- Manual Lockable Lever
- Temperature Range
- See Chart
- Pressure
- Up to: 1000 PSI/G
- Actuatable?
- Yes - ISO 5211 Mounting Pad with Square Drive
