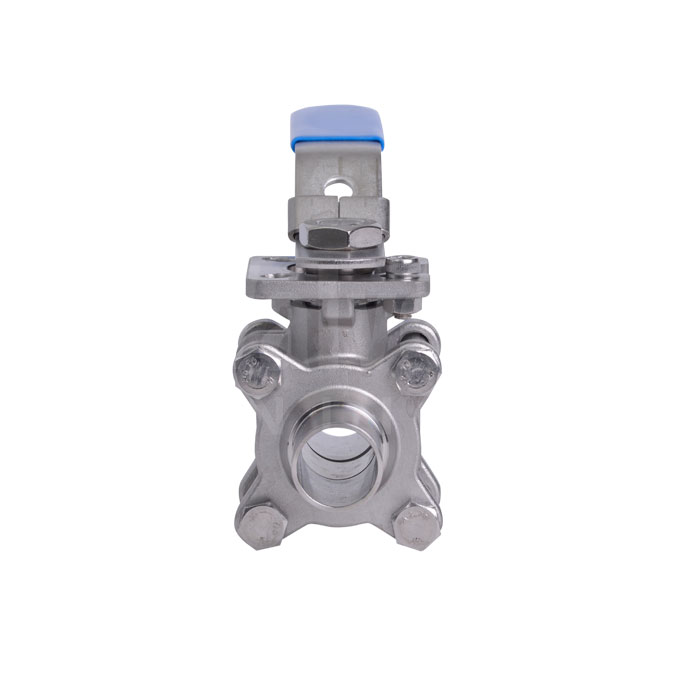

3 Piece Stainless Steel Sanitary Ball Valve - Weld OD
SKU BV5509
from£127.76ex VAT Not the right one? Identify your valve by photo
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- 3 Piece, Full Bore Sanitary Ball Valve
- A351 CF8M Stainless Steel Body
- 316 Stainless Steel Ball
- Cavity Filled Seats
- 1000 PSI (1/2" to 1")
- 800 PSI (1 1/2" to 2")
- 600 PSI (2 1/2" to 4")
- Sizes: 1/2" to 4"
- Weld End or Extended Weld End
Description
A 3 piece Sanitary Stainless Steel Weld End Ball Valve complete with ISO 5211 direct mounting pad for easy actuation.
Suitable for hygienic environments, the valve comprises of an A351 CF8M Body, 316 stainless steel ball with internal finish of Ra 40uin/25uin. The valve features a true tube port which offers no dead space in the through path.

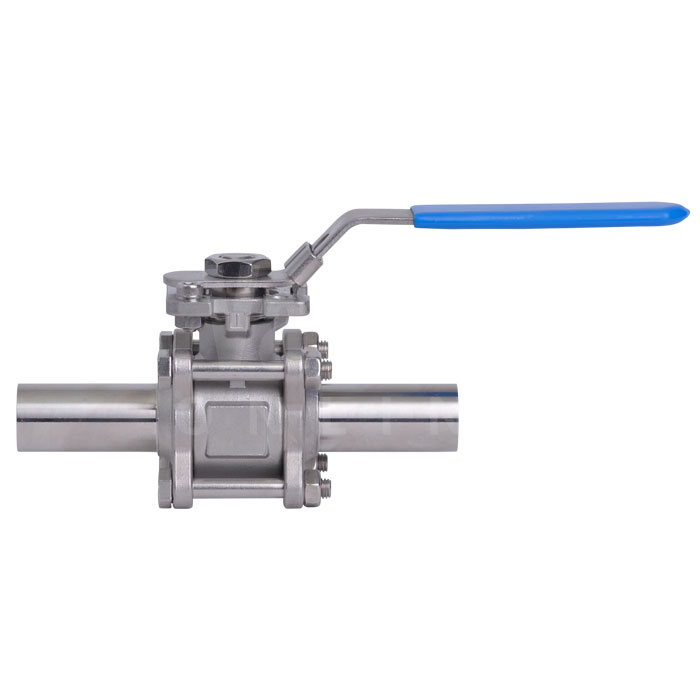

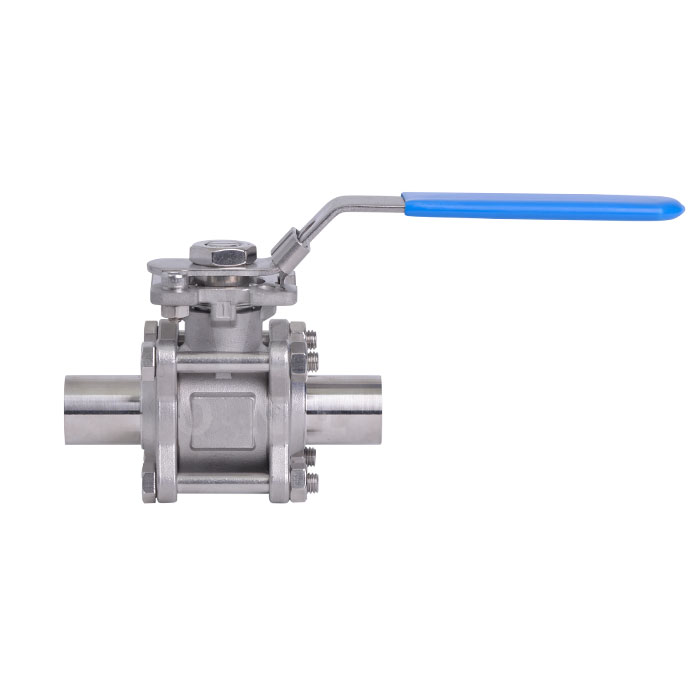

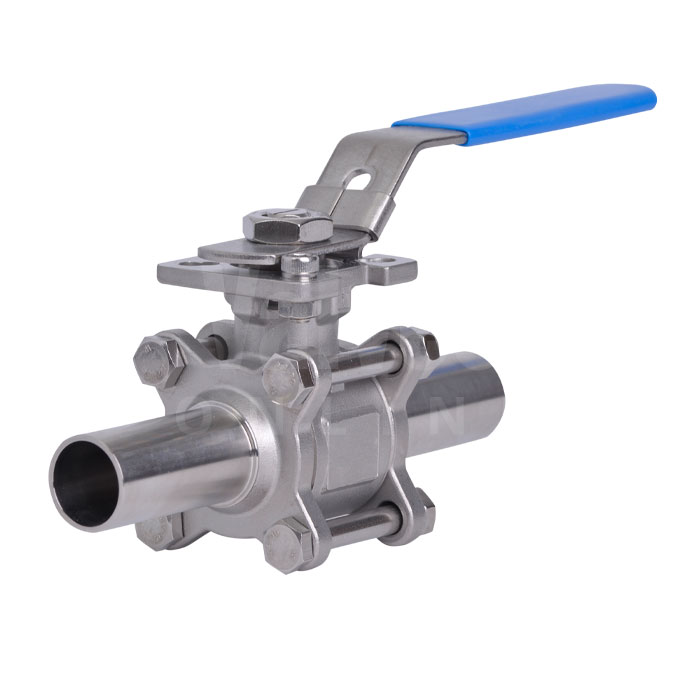

End connections are available in weld end or extended weld end.
3 Piece Stainless Steel Sanitary Ball Valve PDF datasheet
Technical specification
- End Connection
- Butt Weld OD
- Body Material
- Stainless Steel
- Seal Material
- PTFE
- Seat Material
- Cavity Filled
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Piece, Full Bore
- Industry / Approvals
- Hygienic
- Lever
- Lockable Manual Lever
- Temperature Range
- -10ºC to 180ºC
- Pressure
- Up to: 1000 PSI (1/2" to 1"), 800 PSI (1 1/2" to 2"), 600 PSI (2 1/2" to 4")
- Actuatable?
- Yes - features Direct Mounting Pad
