VOLT

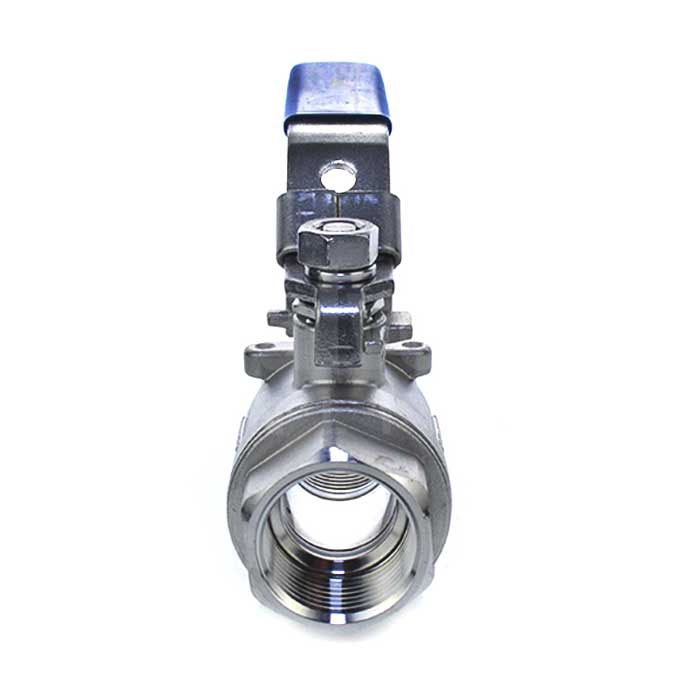

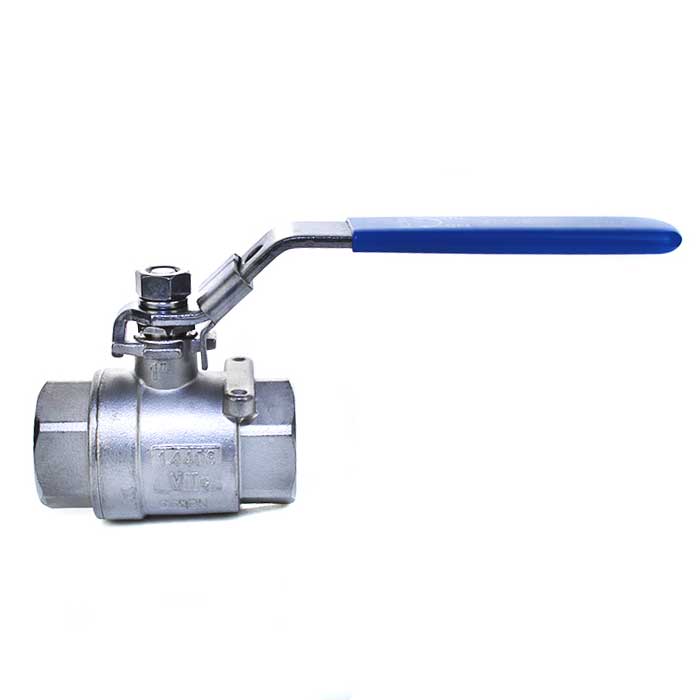

2 Piece Stainless Steel Economy BSPP Ball Valve - WRAS
SKU BV5105
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Economy Ball Valve
- CF8M Stainless Steel Body
- Screwed BSPP
- Full bore, two piece
- Sizes: 1/4" to 3"
- WRAS Approved (1/4" to 2")
- Temperature range: -10°C to +180°C
- PN63 Rated
- Free Handle Printing Available - See details below
Description
Economy 2 Piece Stainless Steel Ball Valve is a non-maintainable full bore ball valve; providing safe operation for both general and industrial chemical applications.
An economical, compact and reliable ball valve with CF8M Stainless Steel body and PTFE seat.
Used to 'shut-off' medium flows on a wide range of liquid and gaseous duties including drain and blow down, gauge isolation and test points.
Features a blow-out proof stem and insulated grip, lockable lever handle.
WRAS approval on sizes 1/4" to 2" only, certificate available upon request.
Get your company noticed! Order 10 or more and have your name or logo printed on the lever handle for free. Once you have placed your order, simply email: [email protected] with your logo or company name and phone number.
A budget range of economical, unbranded products designed to offer maximum savings.
Technical specification
- End Connection
- BSP, BSPP
- Body Material
- Stainless Steel
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
- Design
- 2 Piece, Full Bore, Female x Female
- Industry / Approvals
- General / Industrial / Process
- Lever
- Lockable Manual Lever
- Temperature Range
- -10°C to +180°C
- Pressure
- PN63 Rated
- Actuatable?
- No - Manual Operation Only
