Images are illustrative and may not show every size or variation.
VOLT

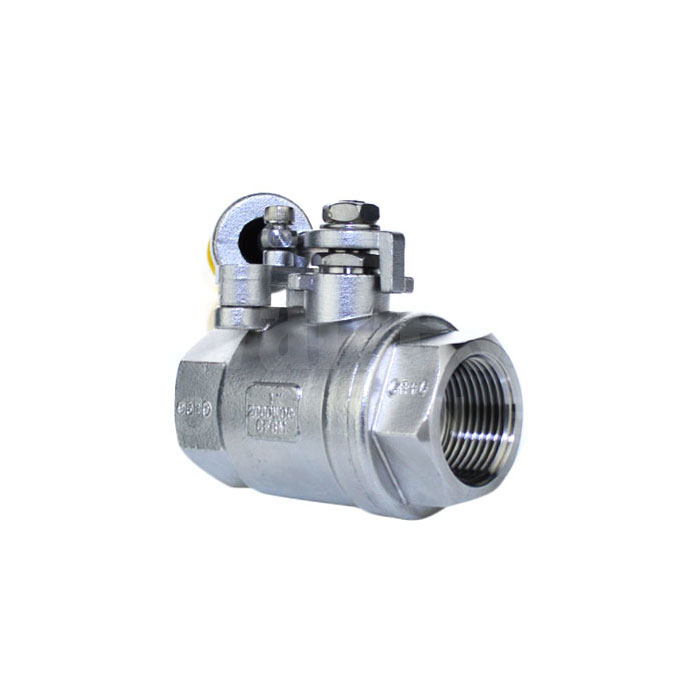

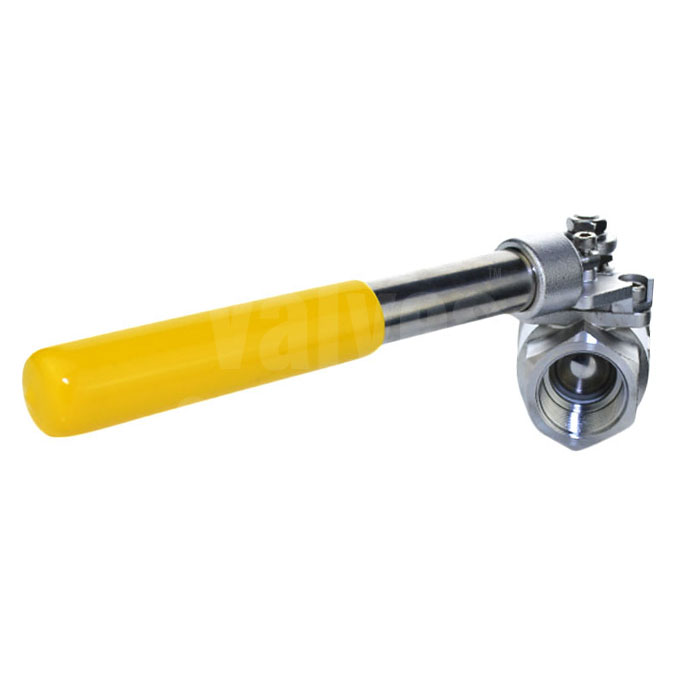

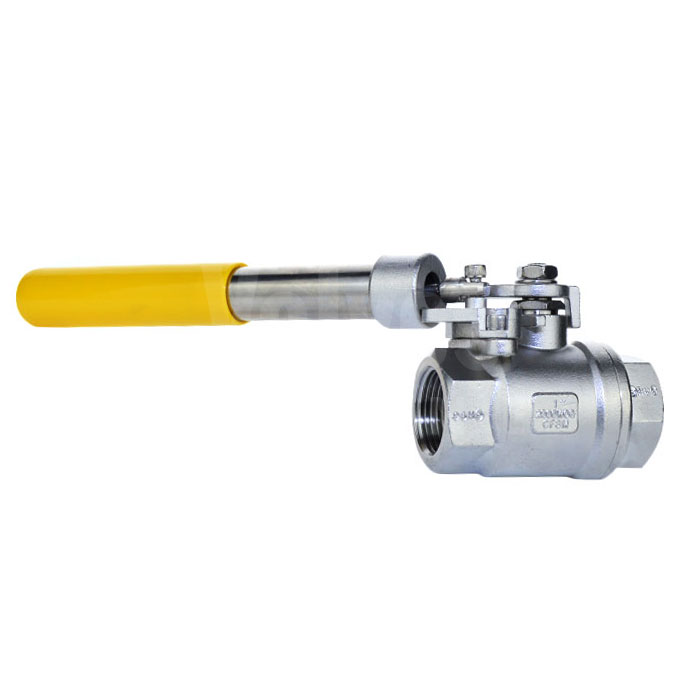

2 Piece Stainless Steel Ball Valve - Spring Lever
SKU BV5083
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- 2 Piece Ball Valve with Spring Lever
- CF8M Stainless Steel Body
- PTFE Seat
- Full Bore
- Spring Return Lever (Dead Mans Handle)
- BSPP End Connections
- Sizes: 1/4" to 2"
- Temperature range: -20°C to +180°C
- Operating pressure: 1000 PSI WOG
Description
2 Piece Stainless Steel Ball Valve with Spring Return Lever (dead-mans handle) is a non-maintainable full bore female / female ball valve; providing safe operation for both general and industrial chemical applications.
An economical, compact and reliable ball valve with CF8M Stainless Steel body and PTFE seat.
Used to 'shut-off' medium flows on a wide range of liquid and gaseous duties including drain and blow down, gauge isolation and test points.
Features a blow-out proof stem and insulated grip, spring return handle.
A maintenance free valve.
Technical specification
- End Connection
- BSP, BSPP
- Body Material
- Stainless Steel
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 2 Piece, Full Bore, Female x Female
- Industry / Approvals
- General / Industrial / Process
- Lever
- Spring Return Lever (dead mans handle)
- Temperature Range
- -20°C to +180°C
- Pressure
- Up to: 1000 PSI WOG
- Actuatable?
- No - Manual Only
