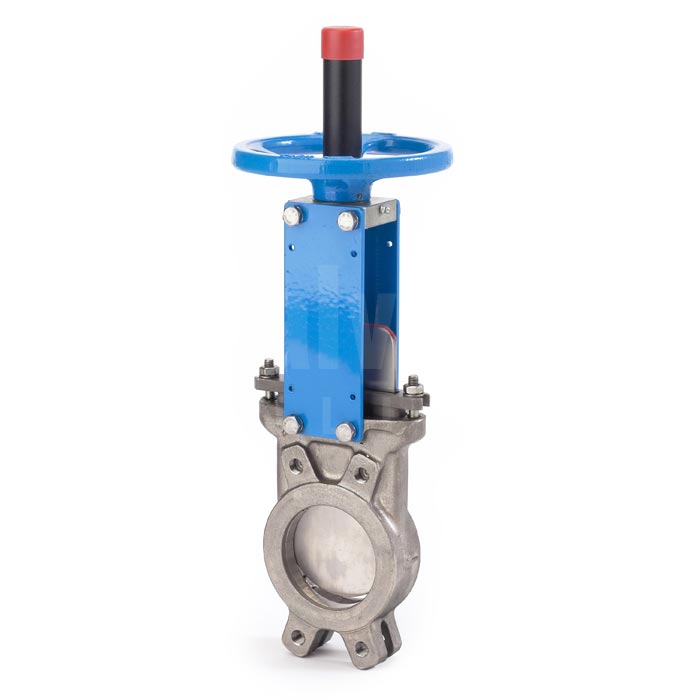

Images are illustrative and may not show every size or variation.
Zubi
Zubi Stainless Steel Knife Gate Valve
SKU KG4233
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Zubi Stainless Steel Knife Gate Valve
- Handwheel Operated
- Uni-Directional
- To fit between PN10 flanges
- Stainless Steel CF8M Body
- 304 Stainless Gate
- EPDM or NBR Seats
- Sizes 2" (DN50) to 12" (DN300)
Description
This stainless steel knife gate valve is a robust and reliable manual handwheel operated knife gate valve, with a stainless steel CF8M body and 304 stainless steel gate.
Used for general industrial service applications, this uni-directional knife gate valve offers a full circular bore resulting in high flow capacities and low pressure drops. It is suitable to fit between PN10 flanges and designed for PN10 pressure rating (PN16 available on request).
Supplied as standard with EPDM or NBR seats (Viton, Silicone & Metal are available on request). Suitable for use in water treatment, food, chemical and pulp industries.
Valves are manufactured following European Pressure Equipment Directive PED 97/23/CE.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical specification
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Body Material
- Stainless Steel
- Design
- Wafer, Handwheel, Metal Seat, EPDM Seat, NBR Seat, Uni-directional
- Industry / Approvals
- Water Treatment / Desalinization, Mining / Slurry, Bulk Handling, Power Plant, Pulp / Paper
- Flange Accommodation
- PN10
