Zubi

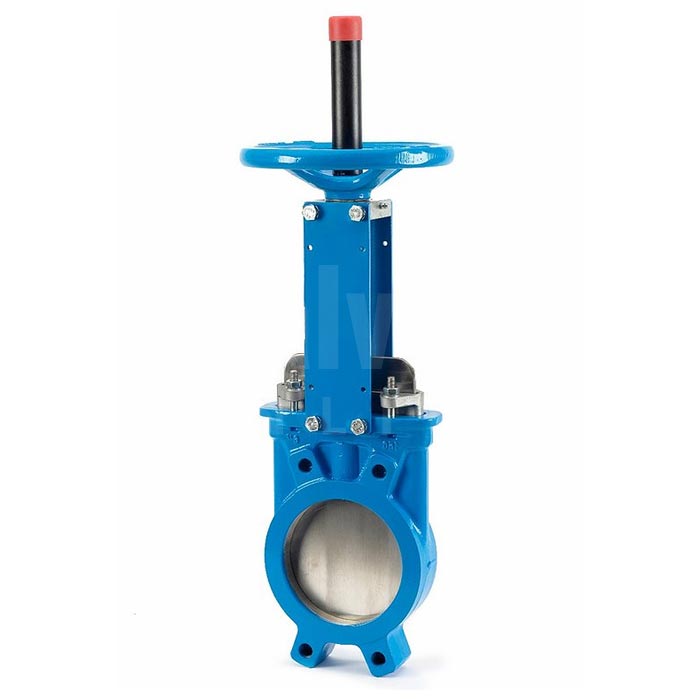

Zubi Cast Iron Knife Gate Valve
SKU KG4234
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Zubi Cast Iron Knife Gate Valve
- Handwheel Operated
- Uni-Directional
- To fit between PN10 flanges
- Cast Iron GG25 Body
- 304 Stainless Gate
- EPDM or NBR Seats
- Sizes 2" (DN50) to 12" (DN300)
Description
A robust and reliable manual handwheel operated knife gate valve, offered with a cast iron GG25 body and 304 stainless steel gate.
Our Manual Knife Gate Valve is suitable to fit between PN10 flanges and designed for PN10 pressure rating (PN16 available on request).
Used for general industrial service applications, this uni-directional knife gate valve offers a full circular bore resulting in high flow capacities and low pressure drops.
Supplied as standard with EPDM or NBR seats (Viton, Silicone & Metal are available on request). Suitable for use in water treatment, food, chemical and pulp industries.
Valves are manufactured following European Pressure Equipment Directive PED 97/23/CE.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical specification
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Body Material
- Cast Iron
- Design
- Wafer, Handwheel, EPDM Seat, NBR Seat, Uni-directional
- Industry / Approvals
- Water Treatment / Desalinization, Mining / Slurry, Bulk Handling, Power Plant, Pulp / Paper
- Flange Accommodation
- PN10
