Zubi

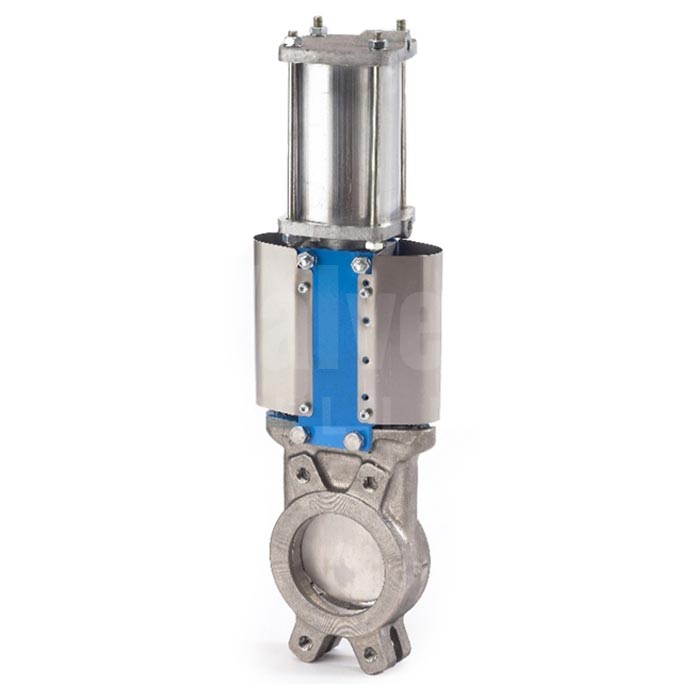

Zubi Stainless Steel Actuated Knife Gate Valve
SKU KG4236
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Zubi Pneumatic Actuated Stainless Steel Knife Gate Valve
- Uni-Directional
- Double Acting as Standard
- Stainless Steel CF8M Body
- 304 Stainless Gate
- To fit between PN10 Flanges
- EPDM or NBR Seats
- Side Protection Plates Fitted as Standard
- Sizes 2" (DN50) to 12" (DN300)
Description
This powerful air operated stainless steel knife gate valve features a stainless steel body (CF8M) with a 304 stainless steel gate, fitted to a double acting pneumatic actuator suitable for on/off operation.
Suitable to fit between flanges and designed for PN10 pressure rating with the option of PN16 on request.
Used for general industrial service applications, this uni-directional, knife gate offers a full circular bore, resulting in high flow capacities and low pressure drops.
Supplied as standard with EPDM or NBR seats, (with options for Viton, Silicone or Metal on request). Used for water (not WRAS Approved) in water treatment, food, chemical and pulp industries.
Valves are manufactured following European Pressure Equipment Directive PED 97/23/CE.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical specification
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Body Material
- Stainless Steel
- Design
- Wafer, EPDM Seat, NBR Seat, Uni-directional
- Industry / Approvals
- Water Treatment / Desalinization, Mining / Slurry, Bulk Handling, Power Plant, Pulp / Paper
- Flange Accommodation
- PN10
