Images are illustrative and may not show every size or variation.
Zubi

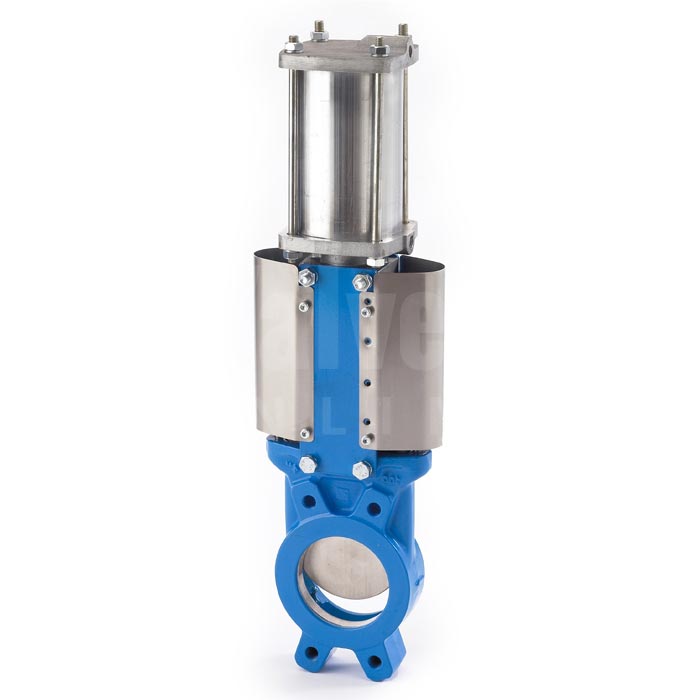

Zubi Cast Iron Actuated Knife Gate Valve
SKU KG4235
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Zubi Pneumatic Actuated Knife Gate Valve
- Uni-Directional
- Double Acting as Standard
- Cast Iron GG25 Body
- 304 Stainless Gate
- To fit between PN10 Flanges
- EPDM or NBR Seats
- Sizes 2" (DN50) to 12" (DN300)
Description
A powerful pneumatic operated knife gate valve, comprising of the valve in cast iron body (GG25) with a 304 stainless steel gate, fitted to a double acting pneumatic actuator suitable for on/off operation.
Suitable to fit between flanges and designed for PN10 pressure rating with the option of PN16 on request.
Used for general industrial service applications, this uni-directional, knife gate offers a full circular bore, resulting in high flow capacities and low pressure drops.
Supplied as standard with EPDM or NBR seats, with options for Viton, Silicone or Metal on request. Used for water (not WRAS Approved) in water treatment, food, chemical and pulp industries.
Valves are manufactured following European Pressure Equipment Directive PED 97/23/CE.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical specification
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Body Material
- Cast Iron
- Design
- Wafer, EPDM Seat, NBR Seat, Uni-directional
- Industry / Approvals
- Water Treatment / Desalinization, Mining / Slurry, Bulk Handling, Power Plant, Pulp / Paper
- Flange Accommodation
- PN10
