Mars

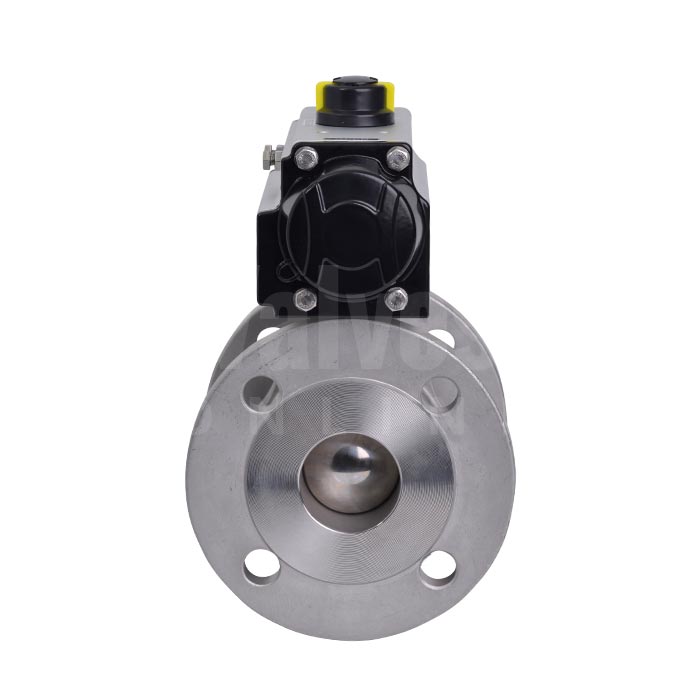

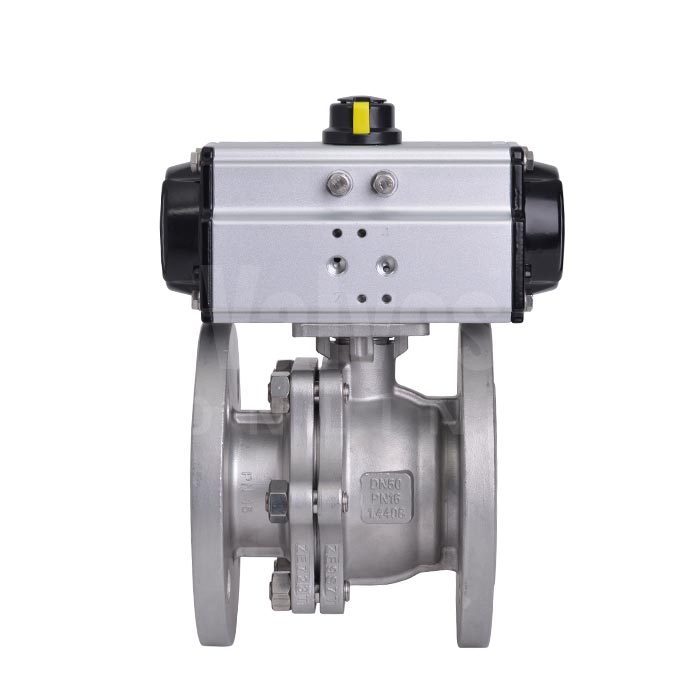

90D Pneumatic Actuated ANSI 150 Stainless Steel Ball Valve
SKU PA5051
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Air Operated Mars 90D ANSI 150 Ball Valve
- Double Acting or Spring Closed/Open
- High Performance
- Stainless Steel Body
- Flanged ANSI 150, Full Bore
- RPTFE Seats, Graphite Seals
- Sizes: ½” – 6“
Description
A combination of high performance and easy automation, this unit offers a powerful pneumatic actuator, fitted to a full bore stainless steel ANSI 150 rated heavy-duty ball valve. The valve comprises of a split 2- piece body with RPTFE Seats and graphite seals. The Pneumatic actuator offers single acting (fail closed or open) or Double acting options. Sized on 5.5 bar pilot air supply with 30% added safety factor.

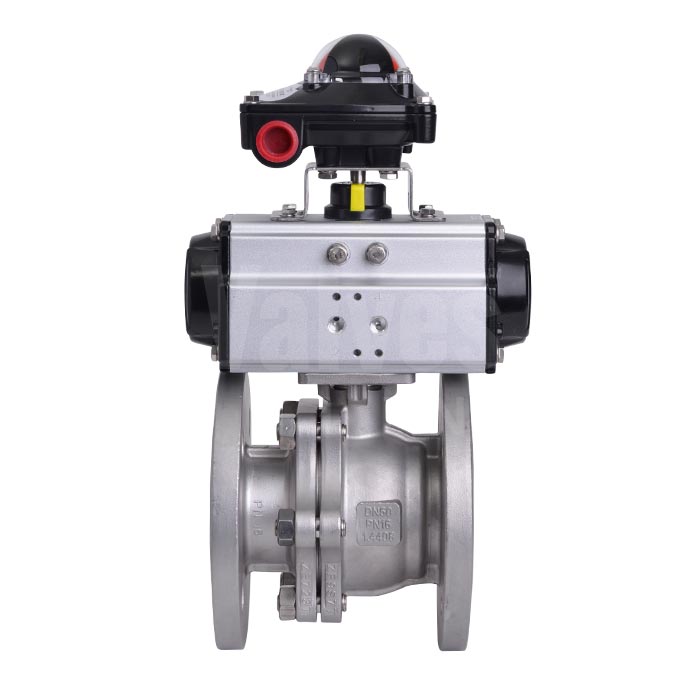

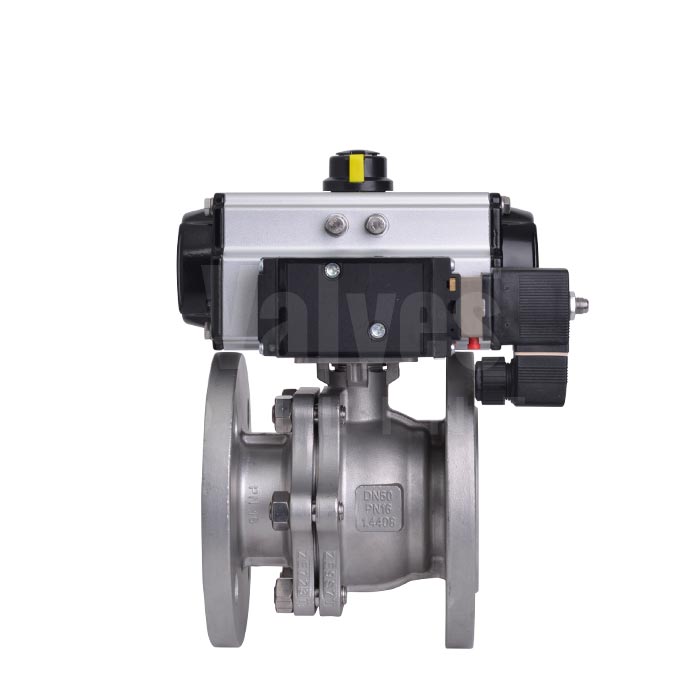

This unit gives you an exceptional combination, that’s trouble free. We offer various accessories that can be fitted onto the actuator such as switch boxes, solenoids and positioners.
90D Pneumatic Actuated ANSI 150 Stainless Steel Ball Valve Datasheet
Technical specification
- End Connection
- Flanged ANSI 150
- Body Material
- Stainless Steel
- Seal Material
- Graphite
- Seat Material
- RPTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
- Design
- 2 Piece, Full Bore
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- Up to: 180°C
- Pressure
- Class 150 Rated
- Actuator
- HP Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
