Mars

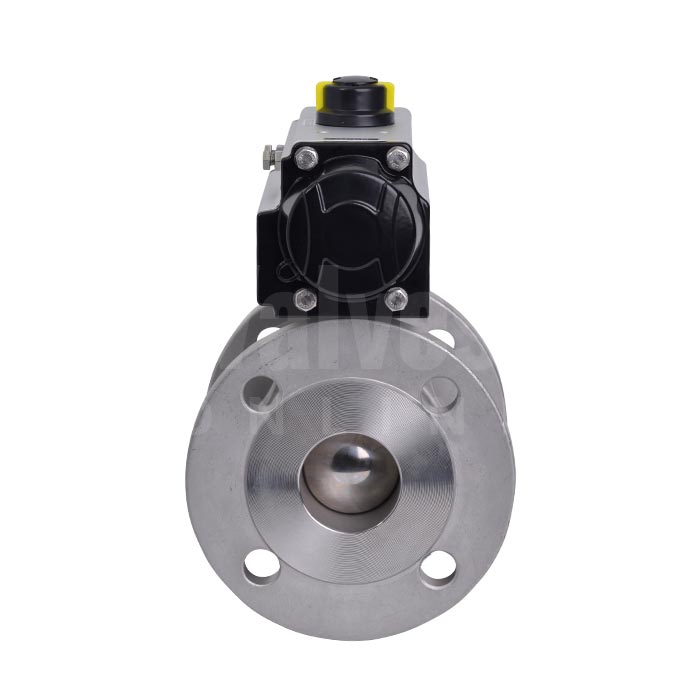

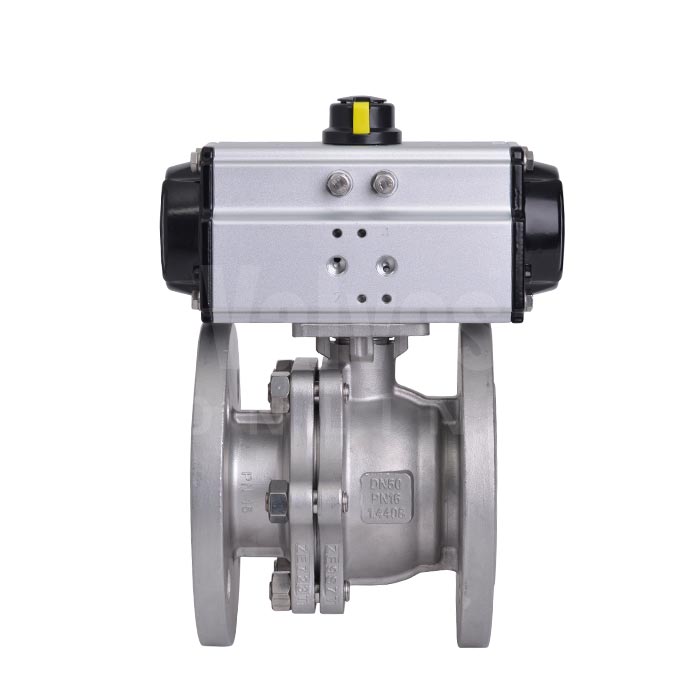

90D Pneumatically Actuated Stainless Steel PN16 Ball Valve
SKU PA5050
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Double Acting or Spring Closed/Open
- High Performance
- Stainless Steel Body
- Flanged PN16, Full Bore
- RPTFE Seats, Graphite Seals
- Sizes: ½” – 6”
Description
A combination of high performance and easy automation, this unit offers a powerful pneumatic actuator, fitted to a full bore stainless steel PN16 rated heavy-duty ball valve. The valve comprises of a split 2-piece body with RPTFE Seats and graphite seals. The Pneumatic actuator offers single acting (fail closed or open) or Double acting options. Sized on 5.5 bar pilot air supply with 30% added safety factor.

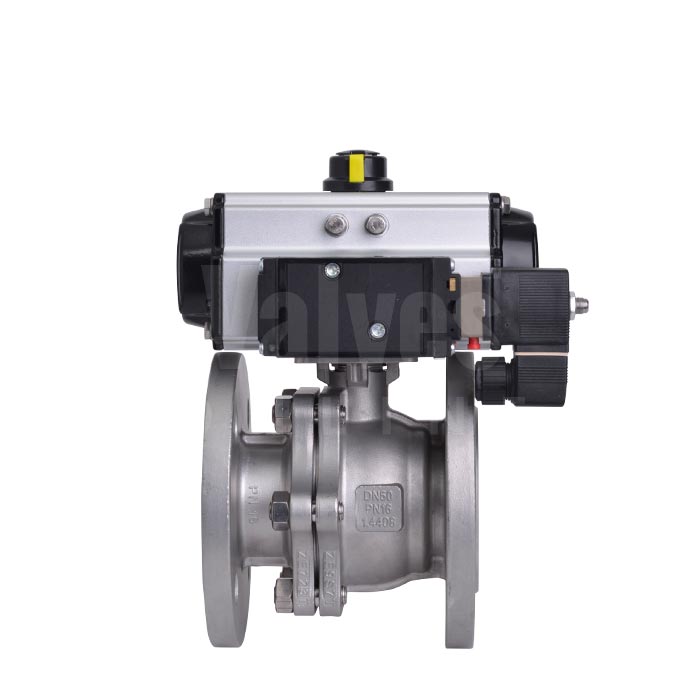

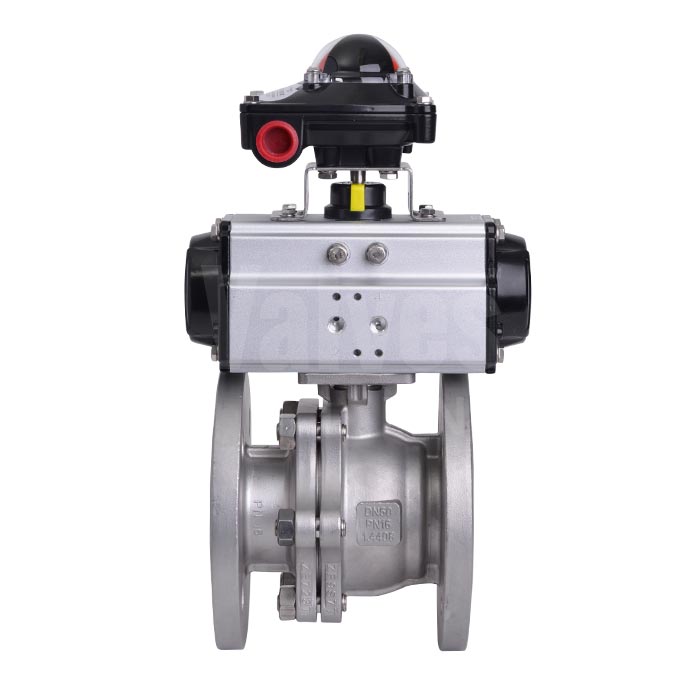

This unit gives you an exceptional combination, that’s trouble free. We offer various accessories that can be fitted onto the actuator such as switch boxes, solenoids and positioners.
Technical specification
- End Connection
- Flanged PN16
- Body Material
- Stainless Steel
- Seal Material
- Graphite
- Seat Material
- RPTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
- Design
- 2 Piece, Full Bore
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- -20°C to + 200°C
- Actuator
- HP Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
