Images are illustrative and may not show every size or variation.
Starline

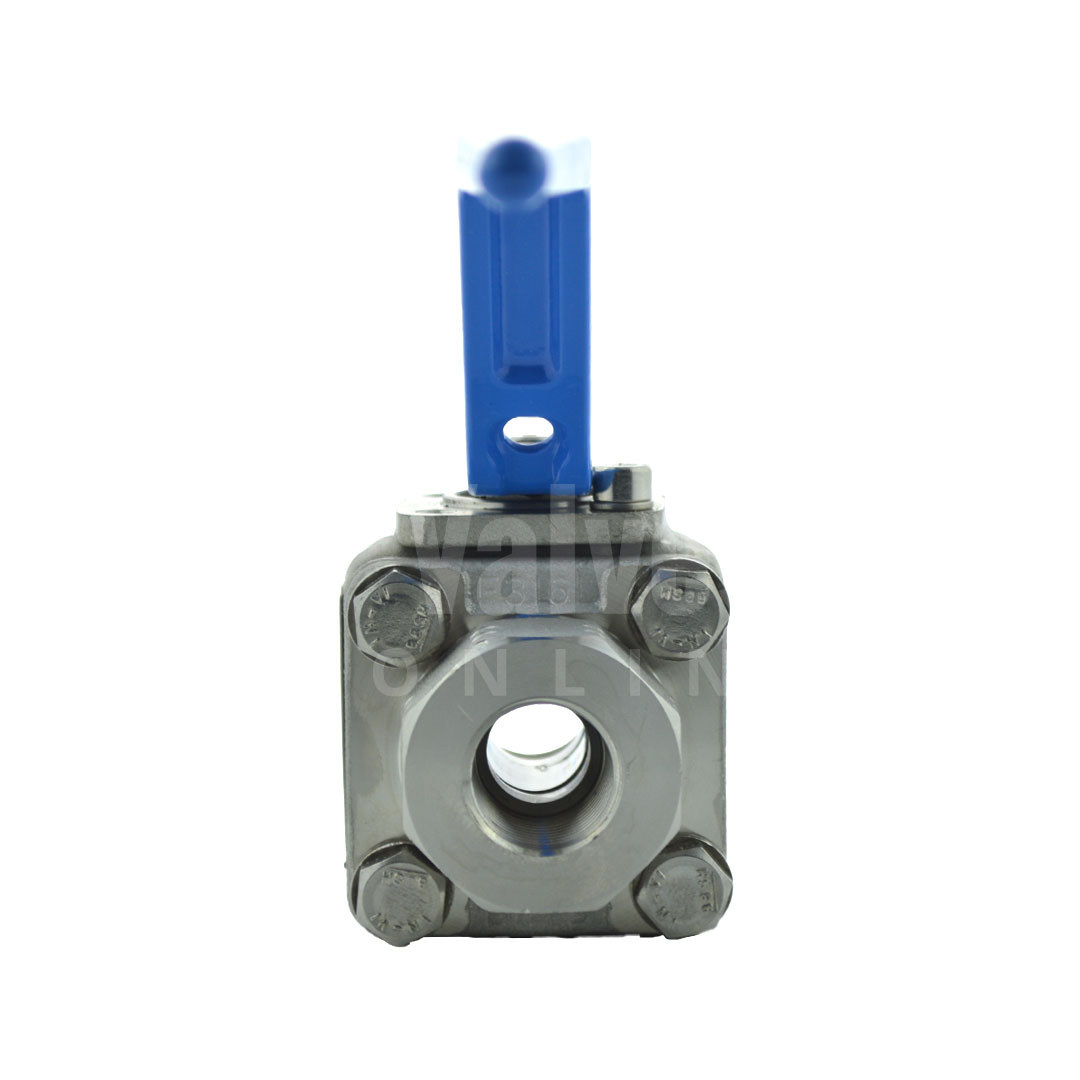

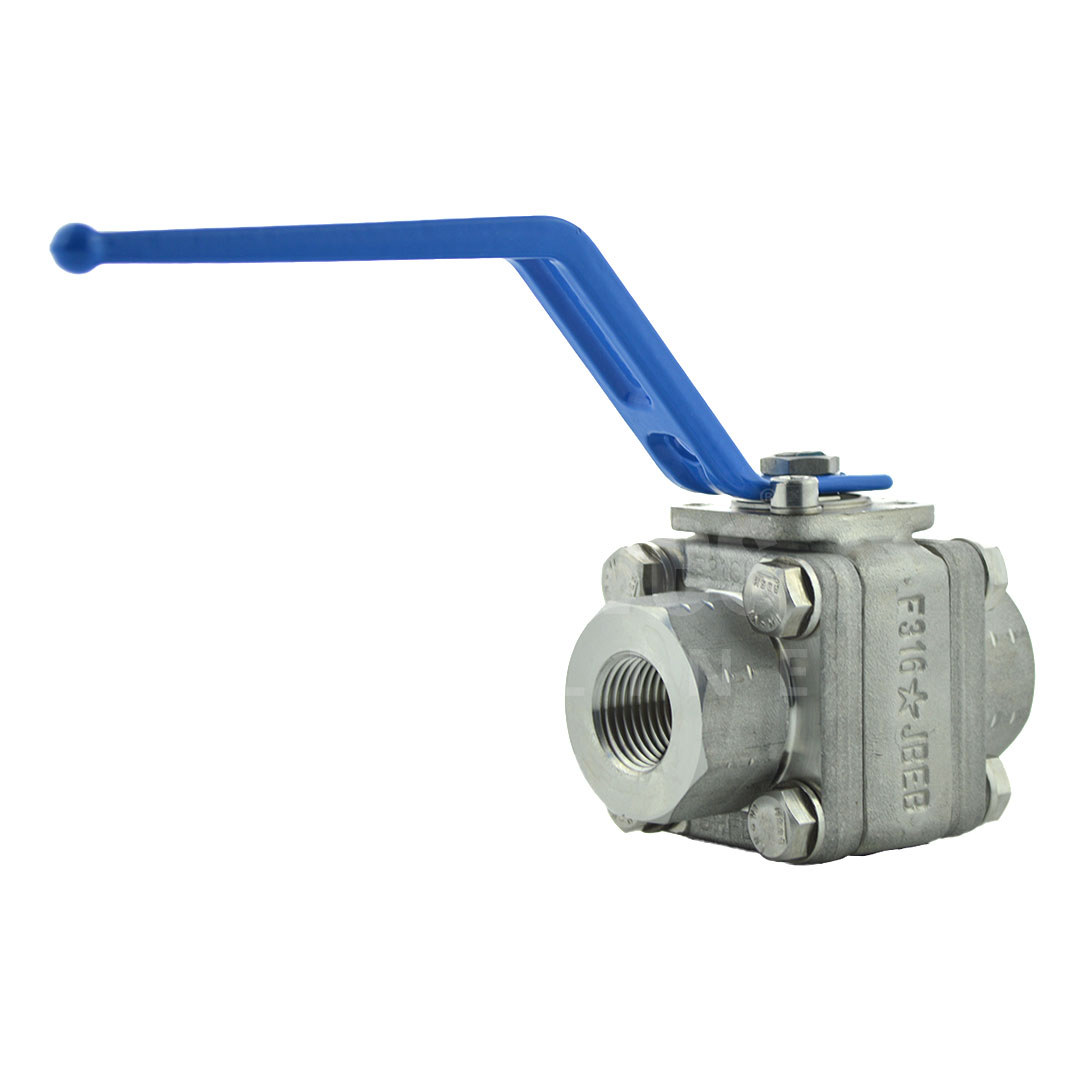

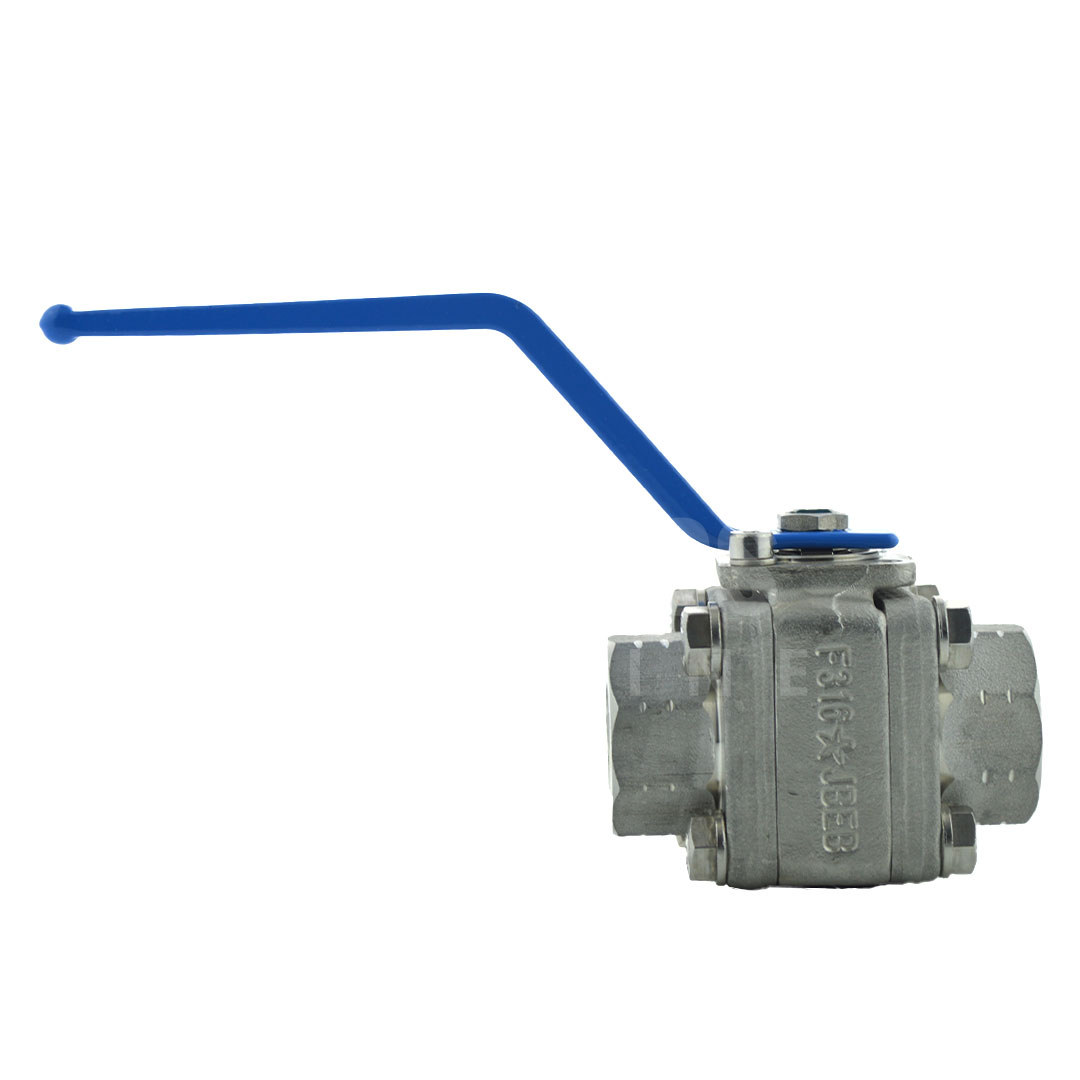

Starline Stainless Steel Reduced Bore Ball Valve
SKU BV5713
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Starline Masterstar & Superstar
- Stainless Steel Body
- Reduced Bore
- 3 Piece Design
- Sizes 1/2" to 4"
- BSPP, BSPT, NPT, Butt Weld, Socket Weld
- ATEX Approved
- Class 800 (1/2" to 2"), Class 600 (2 1/2" & 3"), Class 400 (4")
Description
This Starline Masterstar (1/2" to 2") and Starline Superstar (2 1/2" to 4") 3 Piece Reduced Bore ball valve features a Stainless Steel Body with Stainless Steel Trim, PTFE Seats as Standard with a wide range of alternative seats and seal materials for increased temperature ratings are available on request.
All end connections are available (BSPT, BSPP, NPT, Socket Weld & Butt Weld), if alternative ends are required per valve (e.g socket weld x butt weld) please contact our sales team.
Suitable for a wide range of processes and applications.
Technical specification
- End Connection
- BSP, BSPT, BSPP, NPT, Socket Weld, Butt Weld OD
- Body Material
- Stainless Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Piece
- Industry / Approvals
- General / Industrial / Process
- Lever
- Manual Lever
- Main Features
- BSPP, BSPT, NPT, Butt Weld, Socket Weld Reduced Bore 1/2" to 4"
