Starline

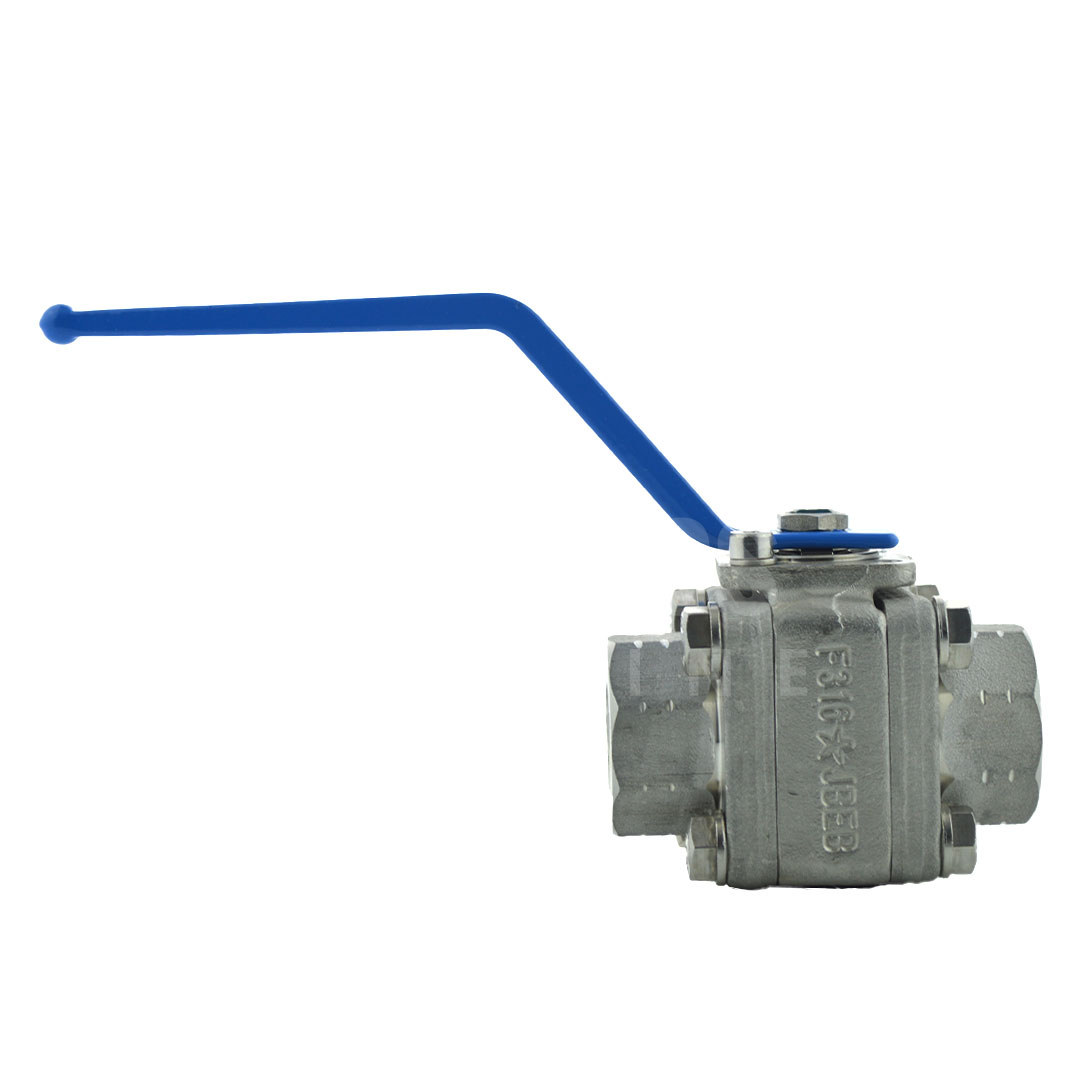

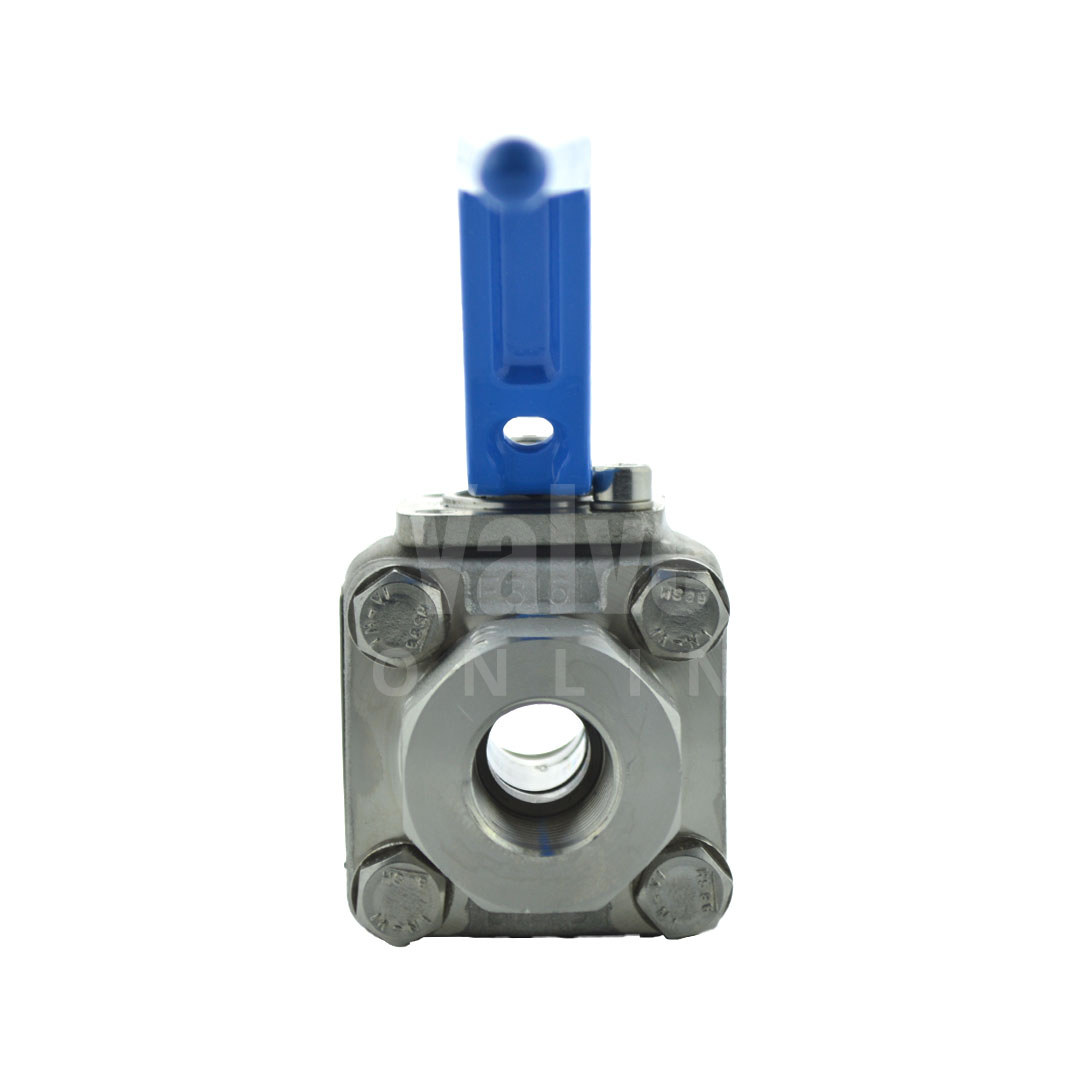

Starline Stainless Steel Full Bore Ball Valve
SKU BV5712
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Starline Masterstar & Superstar
- Stainless Steel Body
- Sizes: 1/4" to 3"
- 3 Piece Design
- BSPP, BSPT, NPT, Butt Weld, Socket Weld
- ATEX Approved
- Class 800 (1/4" to 1 1/2"), Class 600 (2" & 2 1/2"), Class 400 (3")
Description
This Stainless Steel Starline Masterstar (1/4" to 1 1/2") and Starline Superstar (2" to 3") 3 Piece Full Bore ball valve features a Stainless Steel Body with Stainless Steel Trim, PTFE Seats as Standard with a wide range of alternative seats and seal materials for increased temperature ratings are available on request.
All end connections are available (BSPT, BSPP, NPT, Socket Weld & Butt Weld), if alternative ends are required per valve (e.g socket weld x butt weld) please contact our sales team.
Suitable for a wide range of processes and applications.
Technical specification
- End Connection
- BSP, BSPT, BSPP, NPT, Socket Weld
- Body Material
- Stainless Steel
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
- Design
- 3 Piece
- Lever
- Manual Lever
- Main Features
- BSPP, BSPT, NPT, Butt Weld, Socket Weld Full Bore 1/4" to 3"
