Mars
Series 22 Pneumatic Actuated 2 Piece Stainless Steel Ball Valve
SKU PA4104
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumatic Actuated
- Stainless Steel Ball Valve Body
- Two Piece, Full Bore
- PTFE seat
- BSP or NPT
- Sizes 1/4" to 3"
- Pressure range: 1000 PSI
- Temperature range: -20°C to 180°C
Description
Our Pneumatic Actuated Screwed 2 Way Stainless Steel Ball Valve is a non-maintainable two piece, full bore ball valve for general purpose, industrial and chemical applications; water treatment, chemical, slightly corrosive and semi aggressive fluids. A reliable pneumatically actuated valve with Stainless Steel body and PTFE seat.

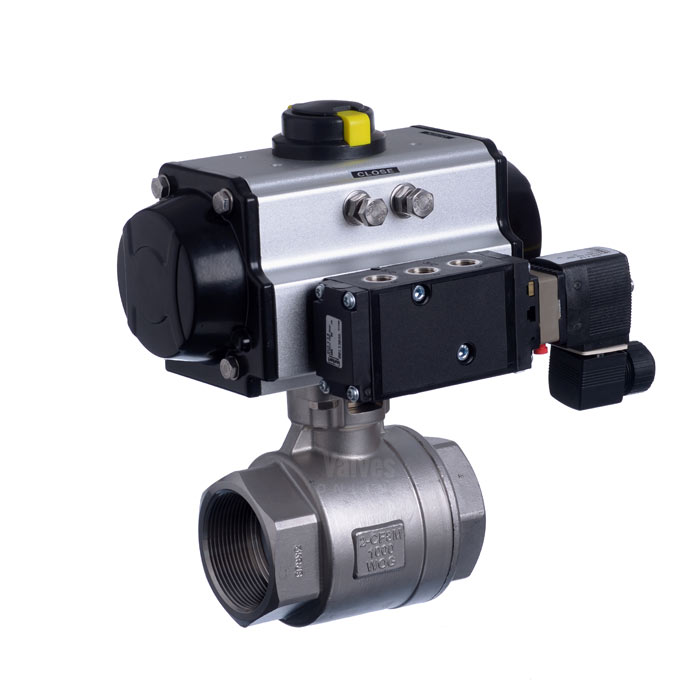

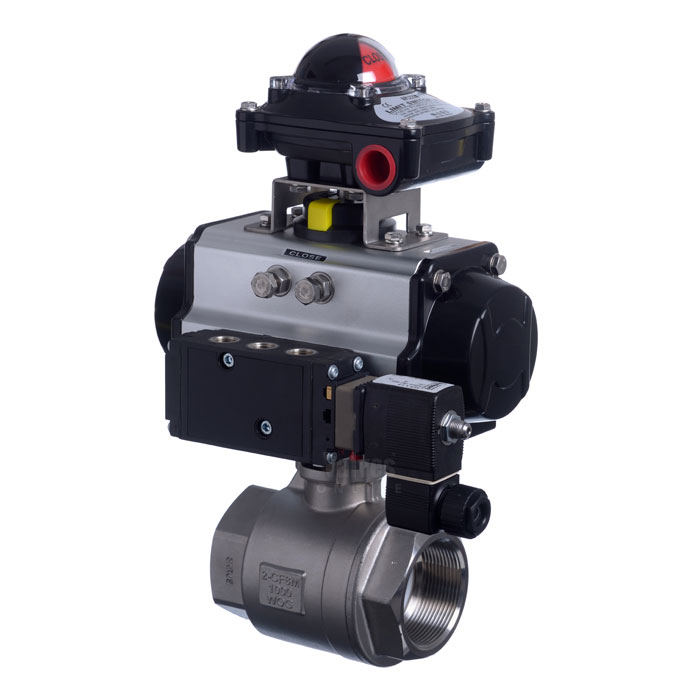

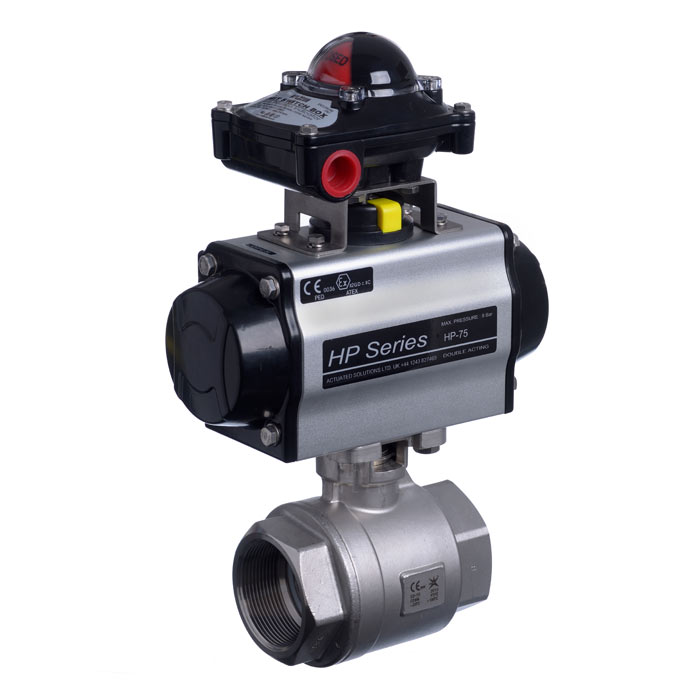

Actuation is either Single or Double acting with a range of configurable options including limit switches, solenoid valves and positioners.
In addition, our pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.
Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- BSP, NPT
- Body Material
- Stainless Steel
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
- Design
- 2 Piece, Female x Female
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- -20°C to 180°C
- Pressure
- Up to 1000 PSI
- Actuator
- HP Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
