Images are illustrative and may not show every size or variation.
Mars

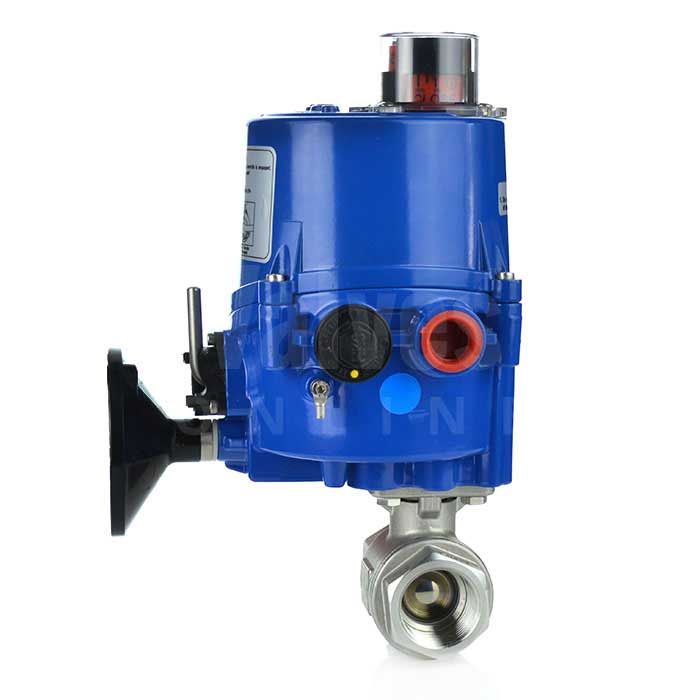

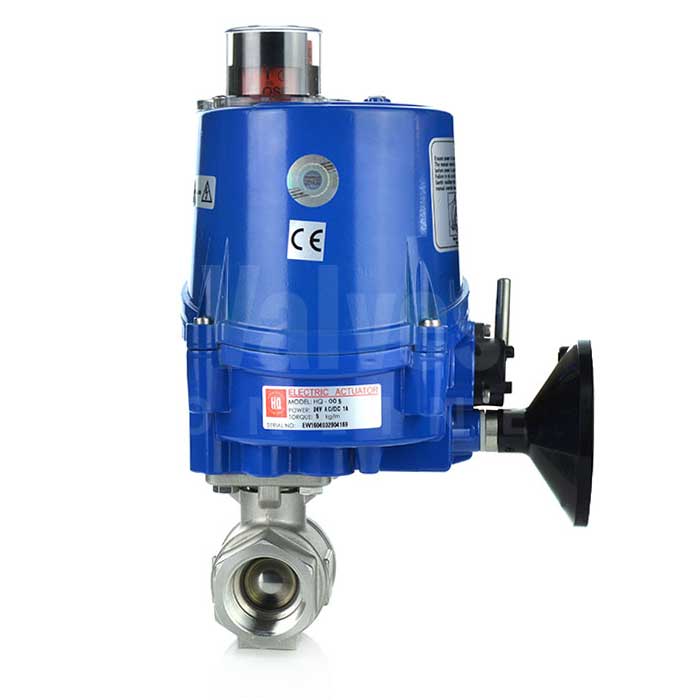

Series 22 Electric Actuated 2 Piece Screwed Stainless Steel Ball Valve
SKU EA4104
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Electric Actuated
- Two piece, Stainless Steel, full bore
- PTFE seat
- BSP or NPT End Connections
- Sizes 1/4" to 3"
- Pressure range: 1000 PSI
- Temperature range: -20°C to 180°C
Description
Electric Actuated 2 Piece, Screwed, full bore Stainless Steel Ball Valve, offering an economical solution and alternative to the three-piece equivalent valves. Ideally suited for general purpose, industrial and chemical applications; water treatment, slightly corrosive and semi aggressive fluids.
The actuator offers on/off control with the addition of manual override, limit switches, optical indicator and ani-condensation heater, available in various voltages and fits directly onto the valve.
Electric Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- BSP, NPT
- Body Material
- Stainless Steel
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
- Design
- 2 Piece, Female x Female
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- -20°C to 180°C
- Pressure
- Up to 1000 PSI
- Actuator
- HQ Electric Actuator
- Actuator Voltages
- 24V DC, 24V AC, 110V AC, 230V AC
- Actuator Features
- On/Off, Manual Override, Limit Switches, Optical Indicator
