PEKOS

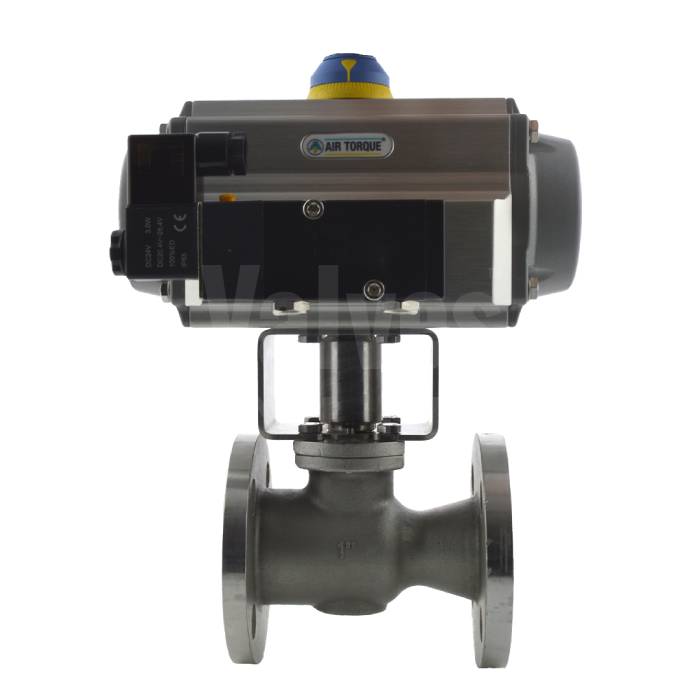

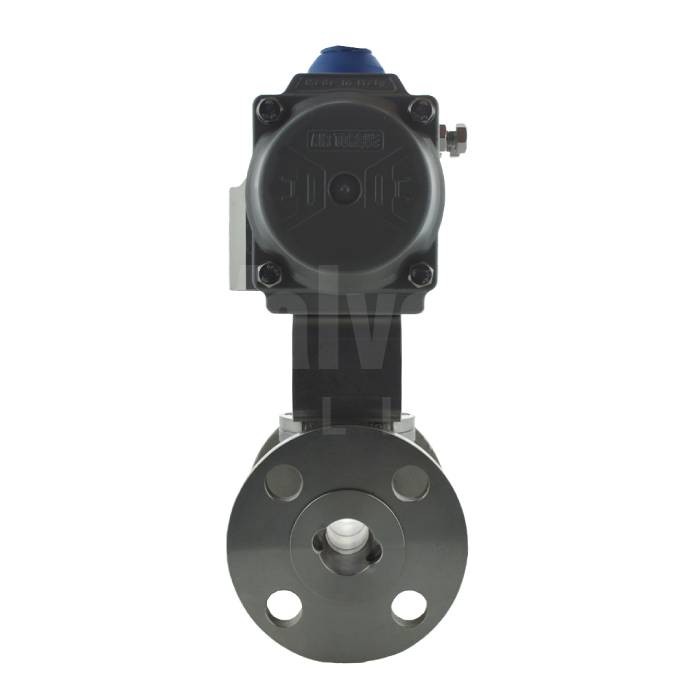

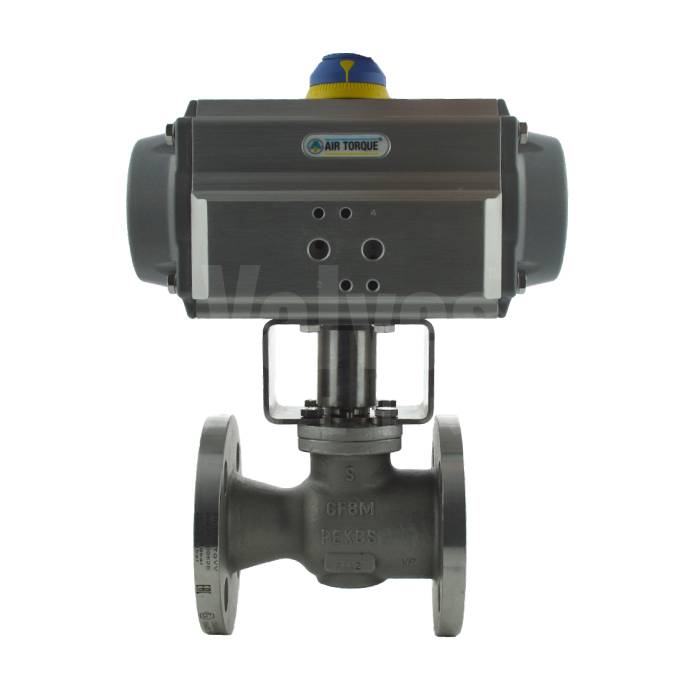

Pneumatic Actuated PEKOS Stainless Steel Reduced bore ANSI 150 Ball Valve
SKU PA5717
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 3" (DN80), 4" (DN100), 6" (DN150), 8" (DN200)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
Description
This Air Operated Pekos Fig ZRB 16 TTTGV ANSI 150 Stainless Steel Reduced Bore Ball Valve is a stainless steel 1 piece body, reduced bore ball valve suitable with Air Torque Pneumatic Actuator.
This industry leading ball valve is manufactured to many standards including: API 598,API 6D, BS 6755-1, API 6D, B16.34, ANSI B16.5, ANSI B16.10, ISO 5211 and NACE MR0175 and carries a wide range of approvals including: Fire Safe, TA-Luft, ATEX 94-9EC, API 6D, PED 97/23/CE, SIL 3 Capable and EN161/EN264.
As standard we offer this Pekos ball valve with PTFE seats, however a wide range of alternative seats materials are available for different applications (cryogenic, elevated temperature duties etc). If alternative seat/seal materials are required, please get in touch with our sales team for further information.
This pneumatic actuated ball valves can be configured with either double acting or spring return actuator with options for pilot solenoid valve and switchbox.
Technical specification
- End Connection
- Flanged ANSI 150
- Body Material
- Stainless Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 3" (DN80), 4" (DN100), 6" (DN150), 8" (DN200)
- Design
- 1 Piece
- Actuator
- Air Torque Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
- Main Features
- Flanged ANSI 150 Reduced Bore 1/2" to 8"
