PEKOS
Pneumatic Actuated PEKOS Carbon Steel Full Bore ANSI 300 Ball Valve
SKU PA5718
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
Description

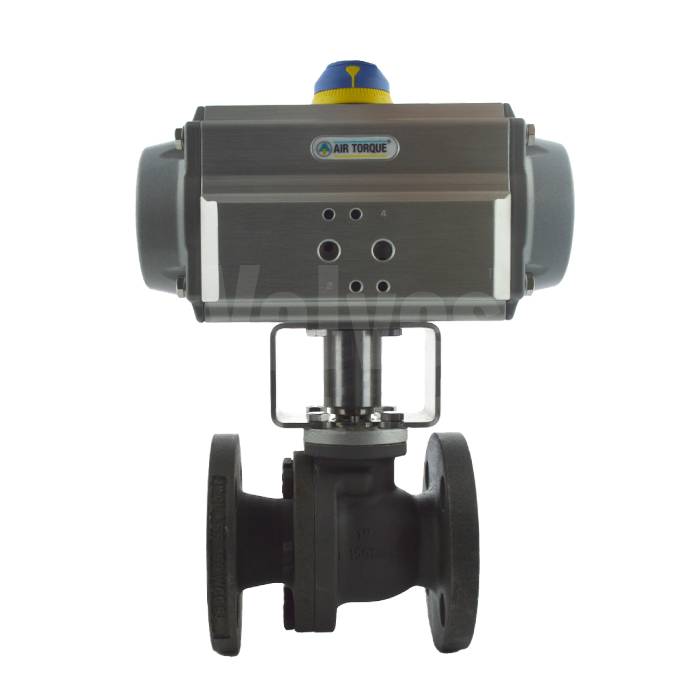

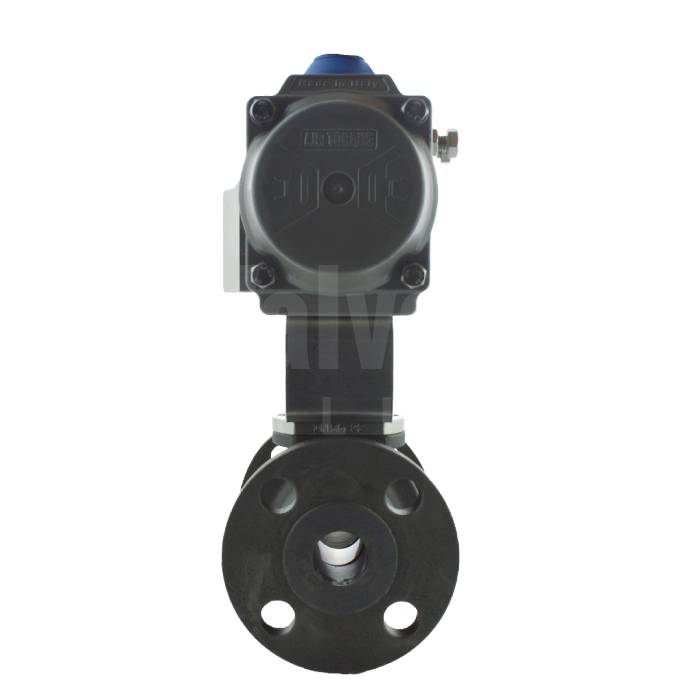

This Air Operated Pekos Fig Z 34 SSGVV ANSI 300 Carbon Steel Full Bore Ball Valve is a Carbon steel, full bore ball valve with Air Torque Pneumatic Actuator.
The valve is a split body meaning it can be easily maintained and full spares kits are available.
This industry leading ball valve is manufactured to many standards including: API 598,API 6D, BS 6755-1, API 6D, B16.34, ANSI B16.5, ANSI B16.10, ISO 5211 and NACE MR0175 and carries a wide range of approvals including: Fire Safe, TA-Luft, ATEX 94-9EC, API 6D, PED 97/23/CE, SIL 3 Capable and EN161/EN264.
As standard we offer this Pekos ball valve with PTFE seats, however a wide range of alternative seats materials are available for different applications (cryogenic, elevated temperature duties etc). If alternative seat/seal materials are required, please get in touch with our sales team for further information.

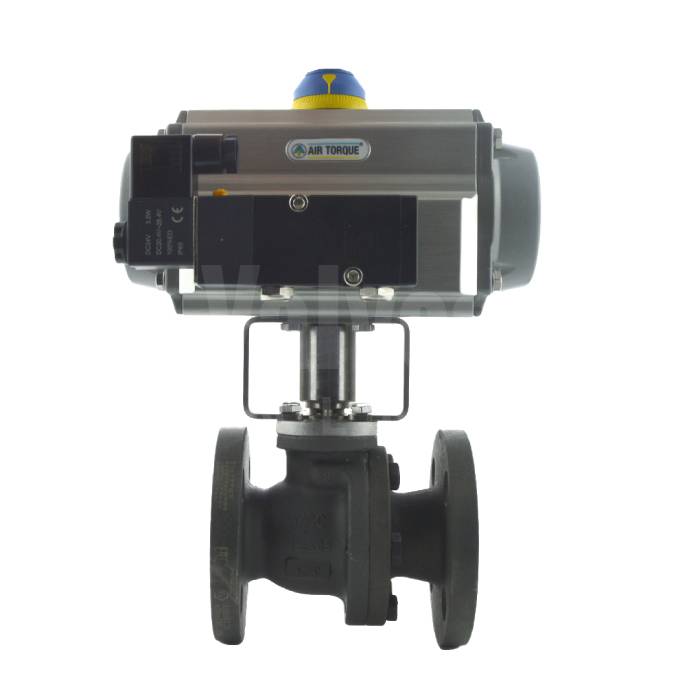

Available to configure as Double Acting or Spring Return and with Pilot Solenoid Valve and Switchbox.
Technical specification
- End Connection
- Flanged ANSI 300
- Body Material
- Carbon Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 2 Piece
- Actuator
- Air Torque Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
- Main Features
- Flanged ANSI 300 Full Bore 1/2" to 4"
