Pneumatic Actuated PEKOS Carbon Steel Full Bore PN16 Ball Valve
SKU PA5721
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
Description

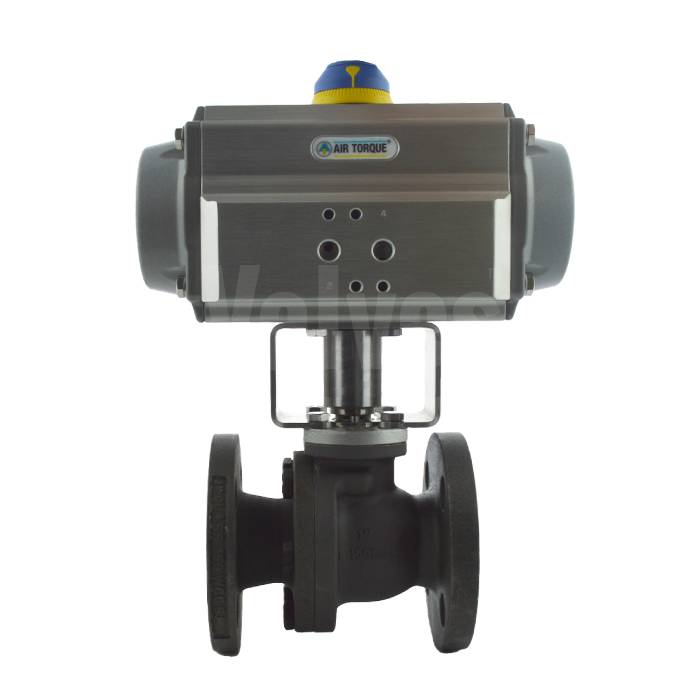

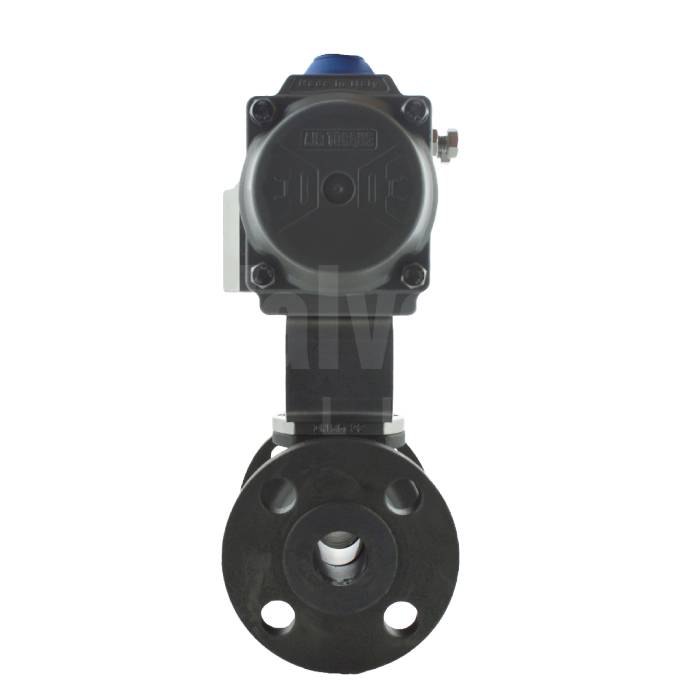

This Air Operated Pekos Fig Z 04 TTTG PN16 Carbon Steel Full Bore Ball Valve is a Carbon steel, full bore ball valve with Air Torque Pneumatic Actuator.
The valve is a split body meaning it can be easily maintained and full spares kits are available.
This industry leading ball valve is manufactured to many standards including: ISO 5211, EN 1092-01, EN 558, EN-12266, ISO 5208, EN-12516, ISO 17292 and carries a wide range of approvals including: Fire Safe, TÜV.AD-MERKBLATT WO, TA-LUFT, ATEX 94-9EC, PED 97/23/CE, SIL 3 Capable, EN 161/EN ISO 23553-1.
As standard we offer this Pekos ball valve with PTFE seats, however a wide range of alternative seats materials are available for different applications (cryogenic, elevated temperature duties etc). If alternative seat/seal materials are required, please get in touch with our sales team for further information.

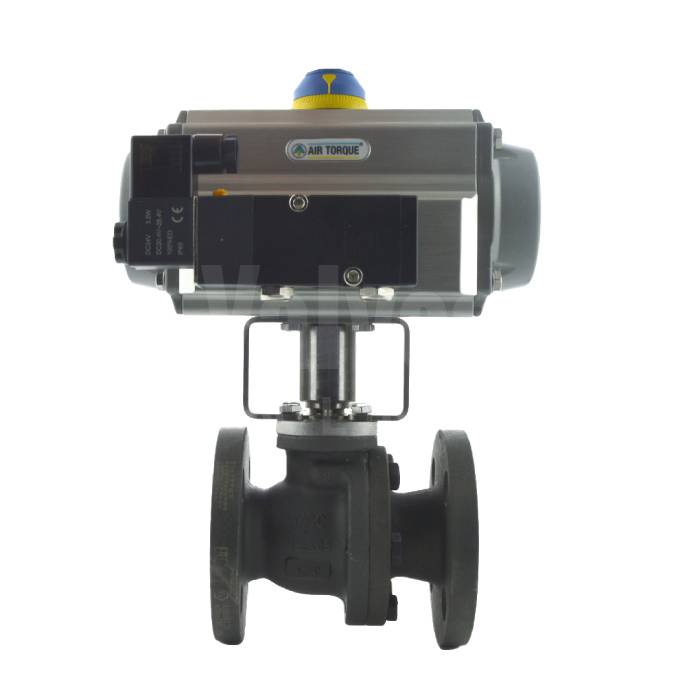

Available to configure as Double Acting or Spring Return and with Pilot Solenoid Valve and Switchbox.
Technical specification
- End Connection
- Flanged PN16
- Body Material
- Carbon Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
- Design
- 2 Piece
- Actuator
- Air Torque Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
- Main Features
- Flanged PN16 Full Bore 1/2" (DN15) to 6" (DN150)
