PEKOS

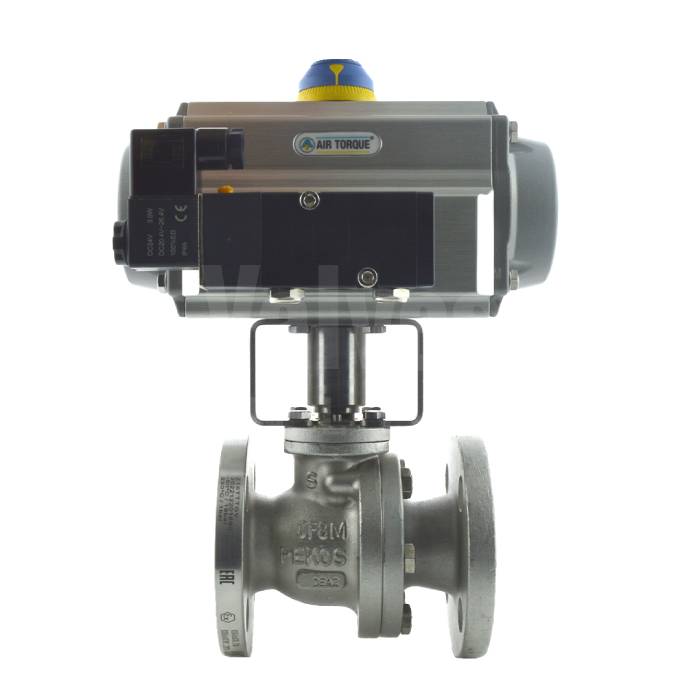

Pneumatic Actuated PEKOS Stainless Steel Full Bore PN40 Ball Valve
SKU PA5724
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
Description
This Air Operated Pekos Fig Z 06 TTTG PN40 Stainless Steel Full Bore Ball Valve is a stainless steel split body, full bore ball valve suitable with Air Torque Pneumatic Actuator.
The valve is a split body meaning it can be easily maintained and full spares kits are available.
This industry leading ball valve is manufactured to many standards including: ISO 5211, EN 1092-01, EN 558, EN-12266, ISO 5208, EN-12516, ISO 17292 and carries a wide range of approvals including: Fire Safe, TÜV.AD-MERKBLATT WO, TA-LUFT, ATEX 94-9EC, PED 97/23/CE, SIL 3 Capable, EN 161/EN ISO 23553-1.
As standard we offer this Pekos ball valve with PTFE seats, however a wide range of alternative seats materials are available for different applications (cryogenic, elevated temperature duties etc). If alternative seat/seal materials are required, please get in touch with our sales team for further information.
This pneumatic actuated ball valves can be configured with either double acting or spring return actuator with options for pilot solenoid valve and switchbox.
Technical specification
- End Connection
- Flanged PN40
- Body Material
- Stainless Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125)
- Design
- 2 Piece
- Actuator
- Air Torque Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
- Main Features
- Flanged PN40 Full Bore 1/2"(DN15) to 5"(DN125)
