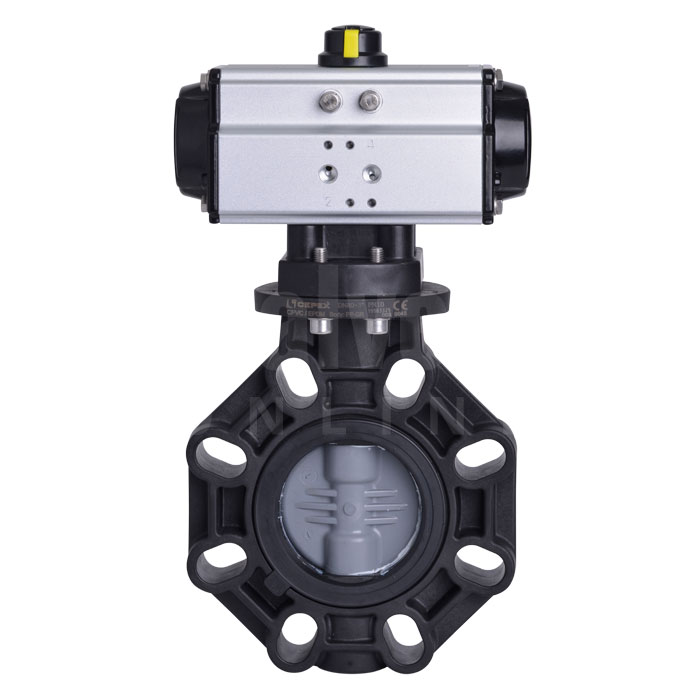

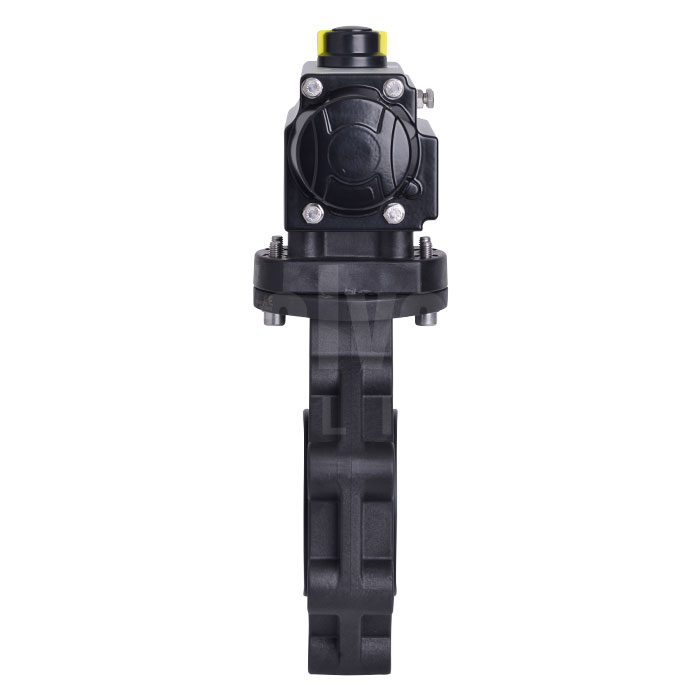

Pneumatic Actuated Extreme Butterfly Valve PVC-C Disc

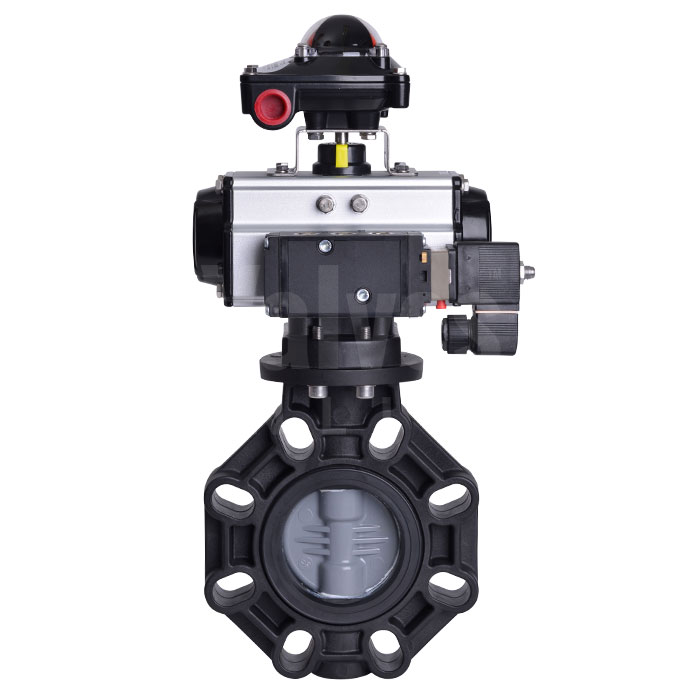

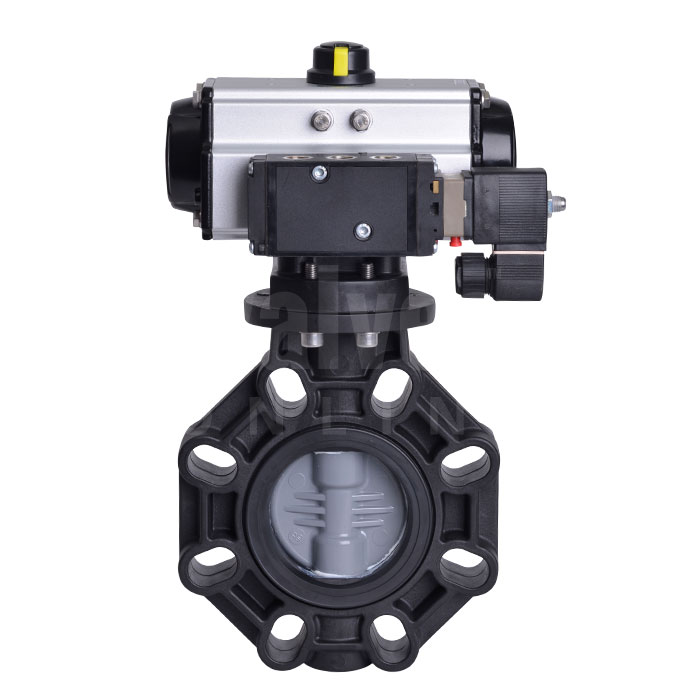

Our Pneumatic Actuated butterfly valve with PVC-C Disc from the Cepex Extreme product range, is perfect for the isolation of flows. The actuator offers either Double acting and Spring return options, sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.

The valve is a wafer pattern design based upon the EN ISO 16136 standard in accordance with the 97/23/EC directive is a compact solution suitable for processes with pressures up to 10 Bar and temperatures up to 80°C. Featuring a PVC-C Disc and EPDM or FPM Liners the valve is suitable for use with many inorganic chemicals and processes across industries such as Chemical Processing, Water Treatment and associated industries.

Like all CEPEX EXTREME valves the Butterfly valve is laser marked with the serial and batch number providing 100% traceability, coupled with 100% bench pressure tests using water, you can be assured of the quality, accuracy and reliability of CEPEX valves

Options include the operator including Handle (with lockout feature, and multi position opening), Gearbox Operator and is available bare shaft as well. If an actuated valve is required see our actuated range or enquire with one of our sales team.

Pneumatic Actuated CEPEX Extreme Butterfly Valve, PVC-C Disc Datasheet
