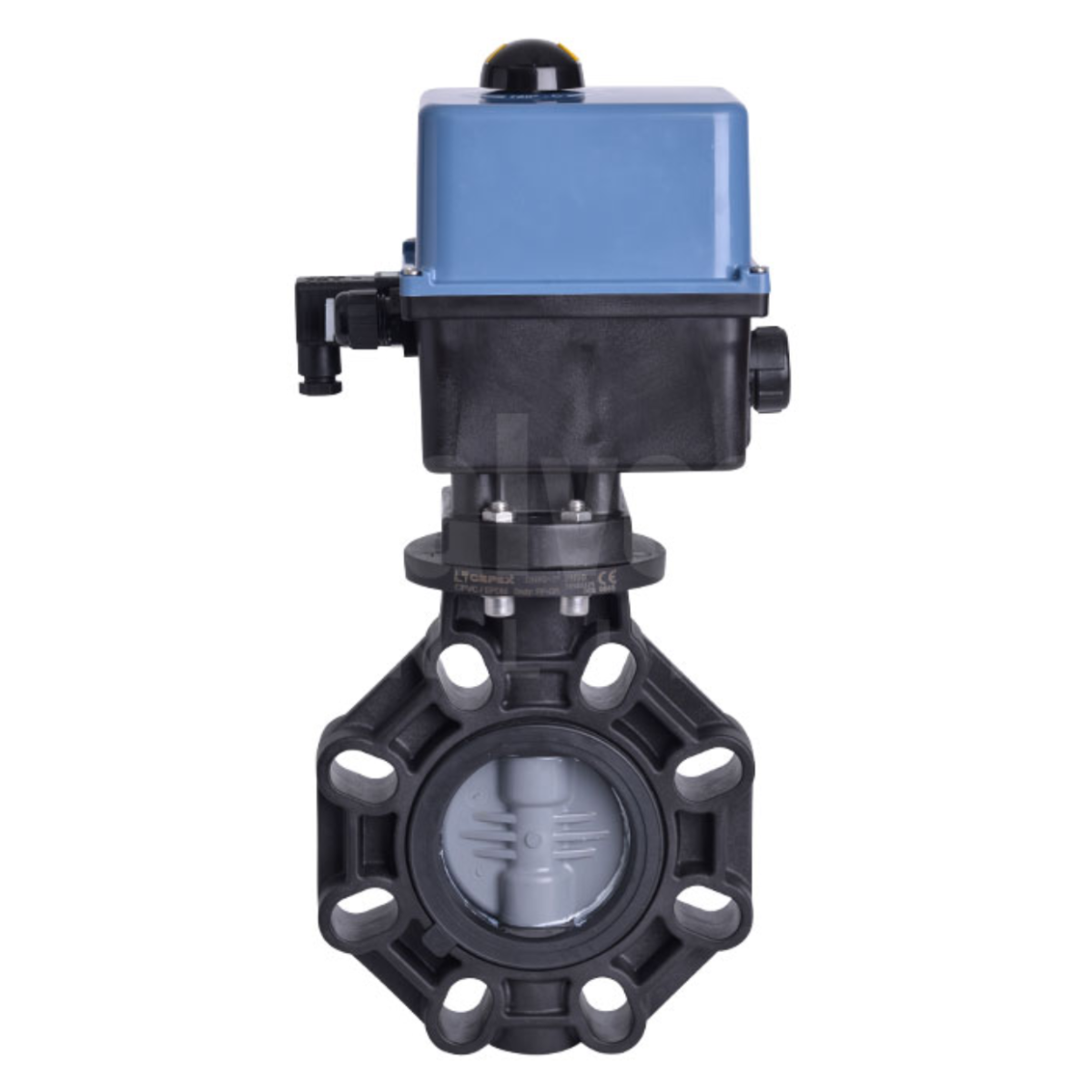

Electric Actuated Extreme Butterfly Valve ABS Disc

The Extreme range of Electric Actuated Butterfly Valves are ideal for automatic on/off operation of flow in a fluid handling system. This ABS valve is used for a range of applications because it is non-toxic and taint free and is widespread for use in food production, soft drinks and high purity water, that require high performance and long-term reliability. The valve body is manufactured in durable ABS and offered in sizes ranging from 2"-12" (DN65-DN300 & D63-D75 to D315).

Available in PVC-U with options of CPVC, PP-H, PVDF and PVC Discs. Options of EPDM or FPM for Liners, giving you perfect choice to suit the needs of your process. The actuator is supplied, fitted and tested to your valve selection, offering a powerful yet compact unit. High quality components Limit switches manual override and optical indicator are supplied as standard all in various voltages.

The actuator varies between two models type 3003 and 3005 and optional additions can be added for Fail safe battery (in the event of power failure the actuator closes the valve), Modulation and actuators for EX environments.

Fluid and working temperature (please check resistance tables and temperature/pressure chart).

Acrylonitrile - Butadiene - Styrene (ABS) is a rigid piping system and is used for high impact strength even at sub-zero temperatures and durability which combine to give exceptional toughness. It is suitable for use over a wide temperature range from -40°C to 80°C at pressures up to 15 bar.
