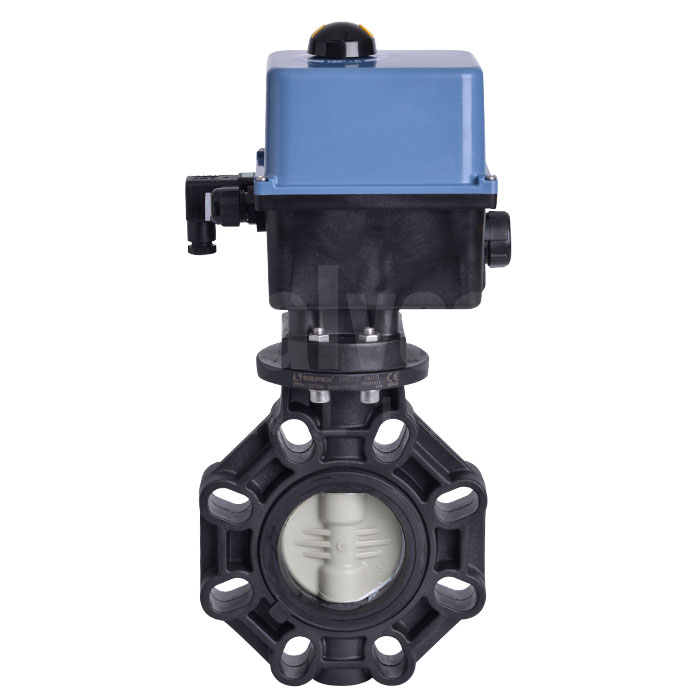

Electric Actuated Extreme Butterfly Valve, PP-H Disc

The Extreme range of Electric Actuated Butterfly Valves are ideal for automatic on/off operation of flow in a fluid handling system. This PP-H valve has good chemical resistance to aqueous solutions of acids, alkalis and salts, and to a large number of organic solvents. PP-H systems are assembled using heat fusion welding using socket weld end fittings, butt fusion of pipes and electrofusion fittings. The valve body is manufactured in durable PP-H – GR and offered in sizes ranging from 2"-12" (DN65-DN300 & D63-D75 to D315).

Available in PP-H with options of CPVC, PVC-U, PVDF and ABS Discs. Options of EPDM or FPM for Liners, giving you perfect choice to suit the needs of your process. The actuator is supplied, fitted and tested to your valve selection, offering a powerful yet compact unit. High quality components Limit switches manual override and optical indicator are supplied as standard all in various voltages.

The actuator varies between two models type 3003 and 3005 and optional additions can be added for Fail safe battery (in the event of power failure the actuator closes the valve), Modulation and actuators for EX environments.

Fluid and working temperature (please check resistance tables and temperature/pressure chart).

Polypropylene (PP-H) is widely used in industrial processing. Light with high impact strength and good abrasion resistance. PP-H is suitable for working use at temperatures up to 90°C, and withstand short term use at a maximum 110°C
