Durapipe

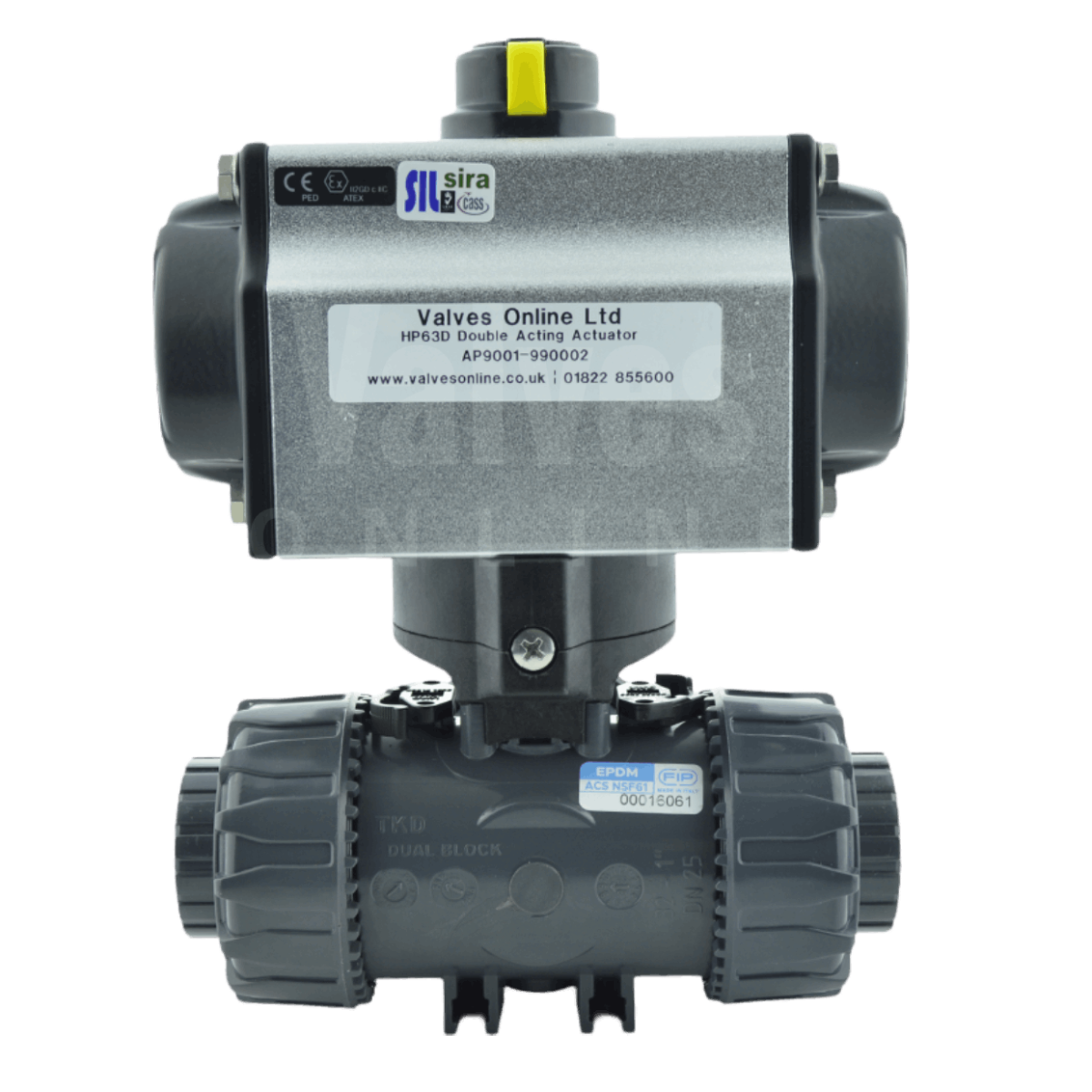

Pneumatic Actuated Durapipe PVC 3 Way Ball Valve – Imperial Solvent Socket
SKU PA5576
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
Description
This Pneumatic Actuated Durapipe TKD 3 Way PVC Imperial Solvent Socket Ball Valve is designed for on/off operation for installation in piping systems, suitable for water and non-hazardous media; corrosive, inert, gaseous and liquid media which have no negative impact on the physical and chemical properties of the body and seal material.
Parts that come into contact with the medium are manufactured from high-grade plastics making them ideally suited to corrosive media.
This air operated 3-way ball valve is available with T-Port or L-Port configurations and is available with FKM or EPDM seal materials. The HP Pneumatic Actuator is available in either Spring Return or Double acting.
Technical specification
- End Connection
- Imperial Solvent Socket
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 3 Way
- Main Features
- PVC Ball Valve Body L or T Port EPDM or FKM Seals
