Durapipe

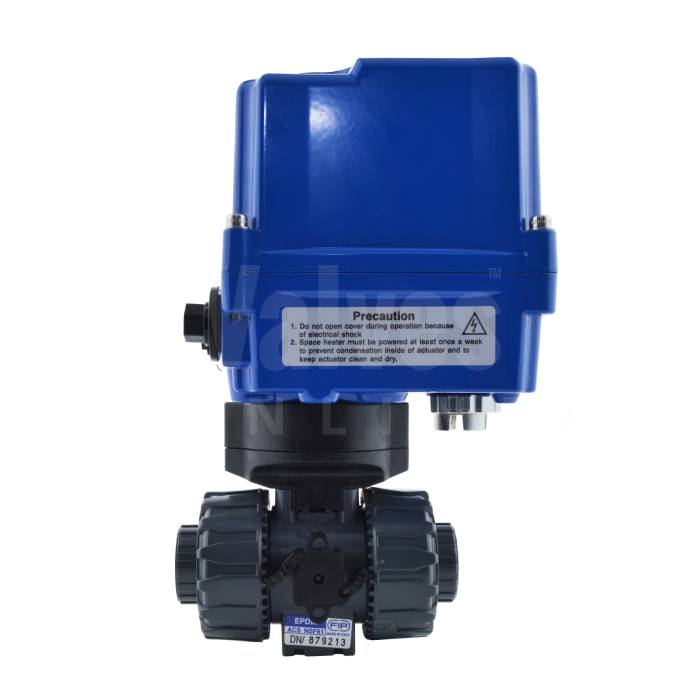

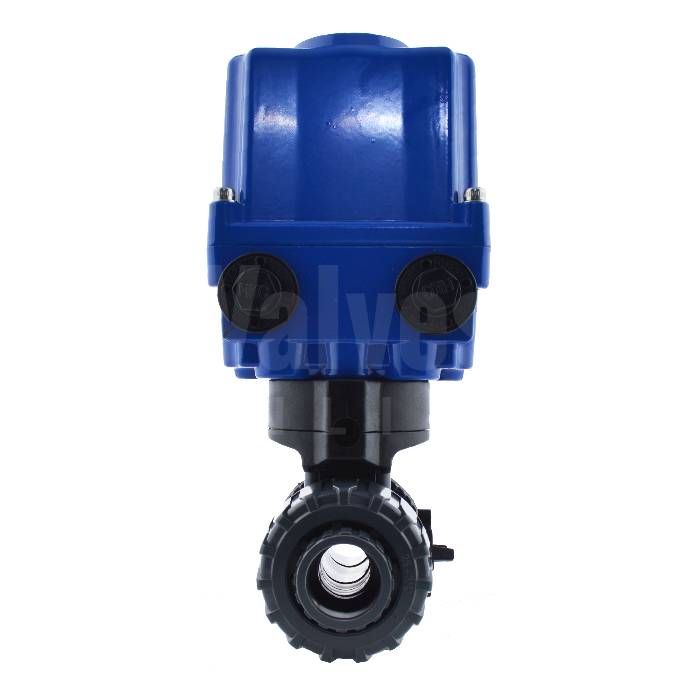

Electric Actuated Durapipe VKD PVC Ball Valve - with HQ004 Actuator
SKU EA5562
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Electric Actuated – HQ004/VKD PVC-U Ball Valve
- PVC Valve Body
- Full Flow
- EPDM or FKM Seals
- HQ004 Electric Actuator
- BSP, Imperial & Metric End Connections
- Sizes: 1/2" to 2" & 16mm to 63mm
- PN16 Pressure Rated
- 24V AC & Dc, 110V & 230V Options
Description
An electrically actuated HQ004/VKD ball valve with PVC-U body from the FIP (Durapipe) VKD product range. Ideal for isolation duties, having a double union design making use of a unique ANTI-BLOCK systems that prevents and avoids ball blockages.
Suitable for processes up to 16 Bar at 20 °C using PVC-U pipework systems.
EPDM or FPM seals are offered as standard, offering options for use with many inorganic chemicals and processes across industries such as Water Treatment, Chemical Processing, Energy and associated industries.
This ball valve holds WRAS Approval.
Technical specification
- End Connection
- BSP, Imperial Solvent Socket, Metric Solvent Socket
- Body Material
- PVC-U
- Seal Material
- EPDM or FKM
- Seat Material
- PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm
- Design
- Full Bore, Double Union
- Industry / Approvals
- Aggressive Chemicals
- Temperature Range
- 10°C to 80°C
- Pressure
- PN16 Rated
- Actuator
- HQ004 Electric Actuator
- Actuator Voltages
- 24VAC, 24VDC, 110VAC, 230VAC
- Actuator Features
- On/Off
