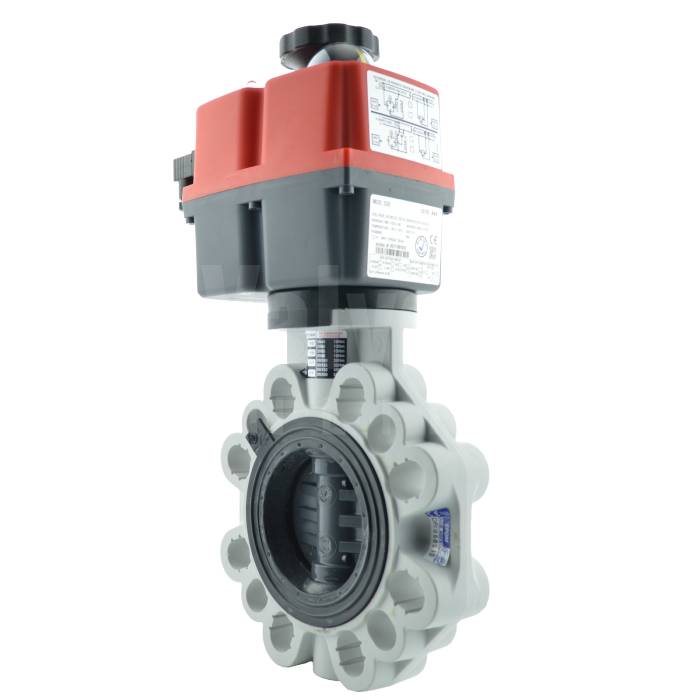

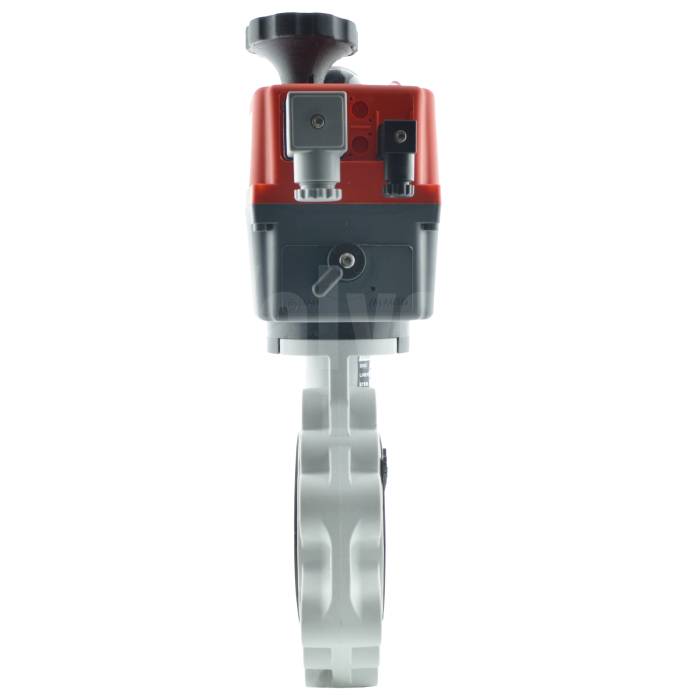

Electric Actuated Durapipe FK Butterfly Valve - PVC Disc - J+J Actuator
SKU EA5600
from£668.70ex VAT Not the right one? Identify your valve by photo
Sizes: 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
Description
This J+J electric actuated Durapipe (Aliaxis) butterfly valve with PVC-U Disc offers high performance and excellent flow characteristics, with minimal pressure drop over a wide range of fluid applications.
The body is manufactured from Glass Reinforced Polypropylene and the disc in PVC and offered in sizes from 1½” to 8". Options for either EPDM or FKM liners.
The oval holes in the valve body (DN50 to DN200) allow connection to the following flange drilling standards:
Technical specification
- Flange Accommodation
- PN10, ANSI 150, Table D, Table E
- Body Material
- PP-GR
- Size
- 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
- Disc Material
- PVC-U
- Liner
- EPDM, FKM Viton
- Main Features
- PVC-U Disc EPDM or FKM Liner 1 1/2" to 8"
