VOLT
Panel Mount Gauge
SKU PG2002
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Panel Mount Gauge
- Black Enamelled or Stainless Steel case
- Chrome crimped bezel
- Plastic window
- Brass / Bronze wetted parts
- Sizes: 40mm to 63mm
- -1 / 0 Bar up to 0 / 414 Bar
Description

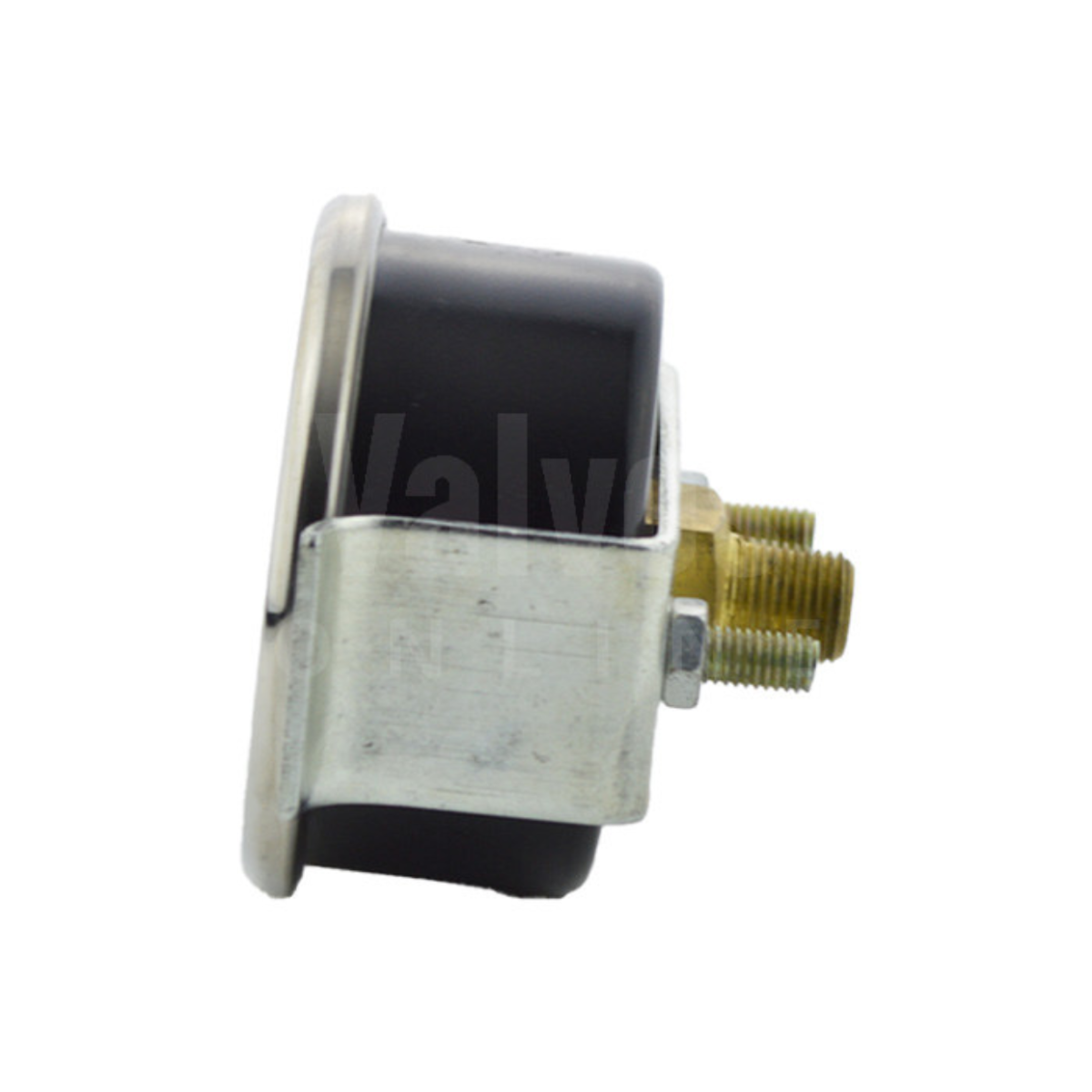

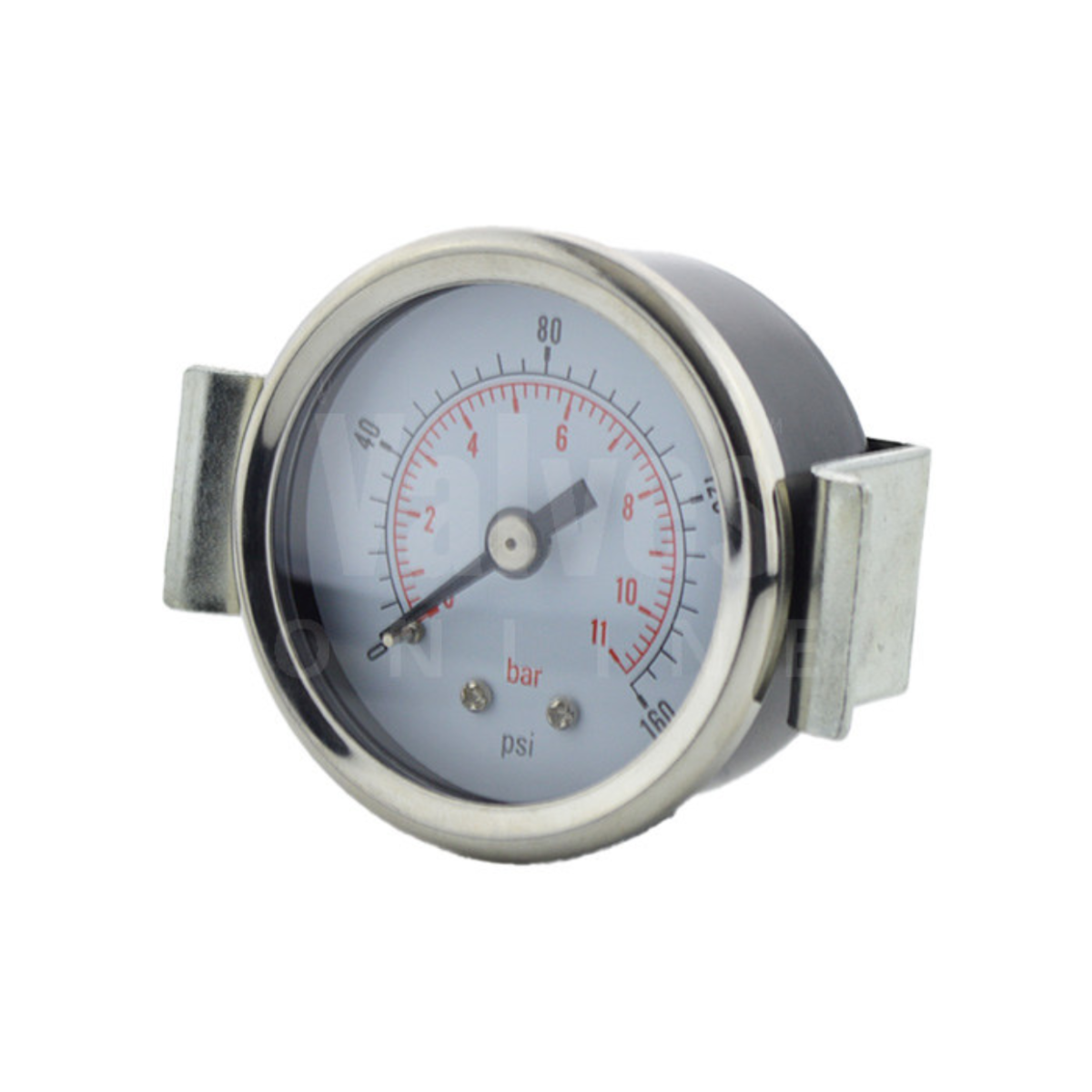

Our Panel Mount Gauge is a key part of our range of gauges and accessories, designed for various industrial uses, including pneumatic and HVAC applications. It features a durable black enamelled case with a chrome bezel and a U type bracket for easy panel mounting. You can also choose a stainless steel case with either a U type bracket or a 3 hole front flange. This gauge is suitable for gases (except oxygen or acetylene) up to 25 Bar and for measuring fluid liquids that are not high viscosity, high temperature (over 60°C), prone to crystallization, or corrosive to copper or tin alloys.
Configurable as either Bottom or Back connection, Panel Mount Bracket or 3 Hole Flange versions.
All our Panel Mount Gauges are designed for applications and use according to European Standard EN837-1.
Panel Mount Gauge Datasheet
Technical specification
- Type
- Pressure
- Design / Use
- Panel Mount, HVAC
- Entry
- Back
- Face Diameter
- 40mm, 50mm, 63mm
- Range
- -1 / 0 Bar, 0 / 1 Bar, 0 / 2 Bar, 0 / 4 Bar, 0 / 7 Bar, 0 / 11 Bar, 0 / 14 Bar, 0 / 21 Bar, 0 / 28 Bar, 0 / 41 Bar, 0 / 70 Bar, 0 / 103 Bar, 0 / 172 Bar, 0 / 275 Bar, 0 / 414 Bar
- Connection Size / Stem Length
- 1/8", 1/4"
- Case Material
- Black Enamelled Steel, Stainless Steel
- Main Features
- 40mm to 63mm -1 / 0 Bar up to 0 / 414 Bar Black Enamelled or Stainless Steel Case
