VOLT

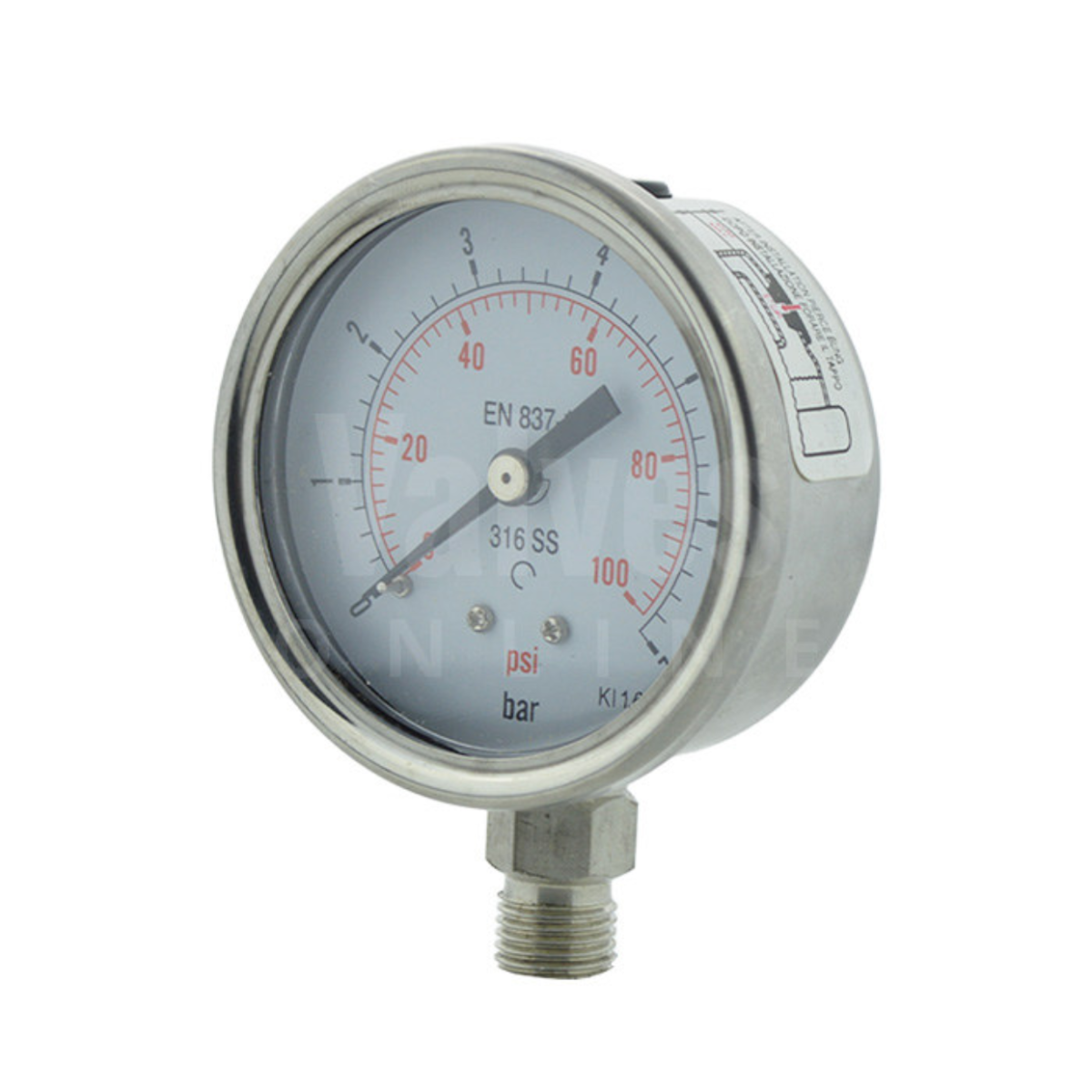

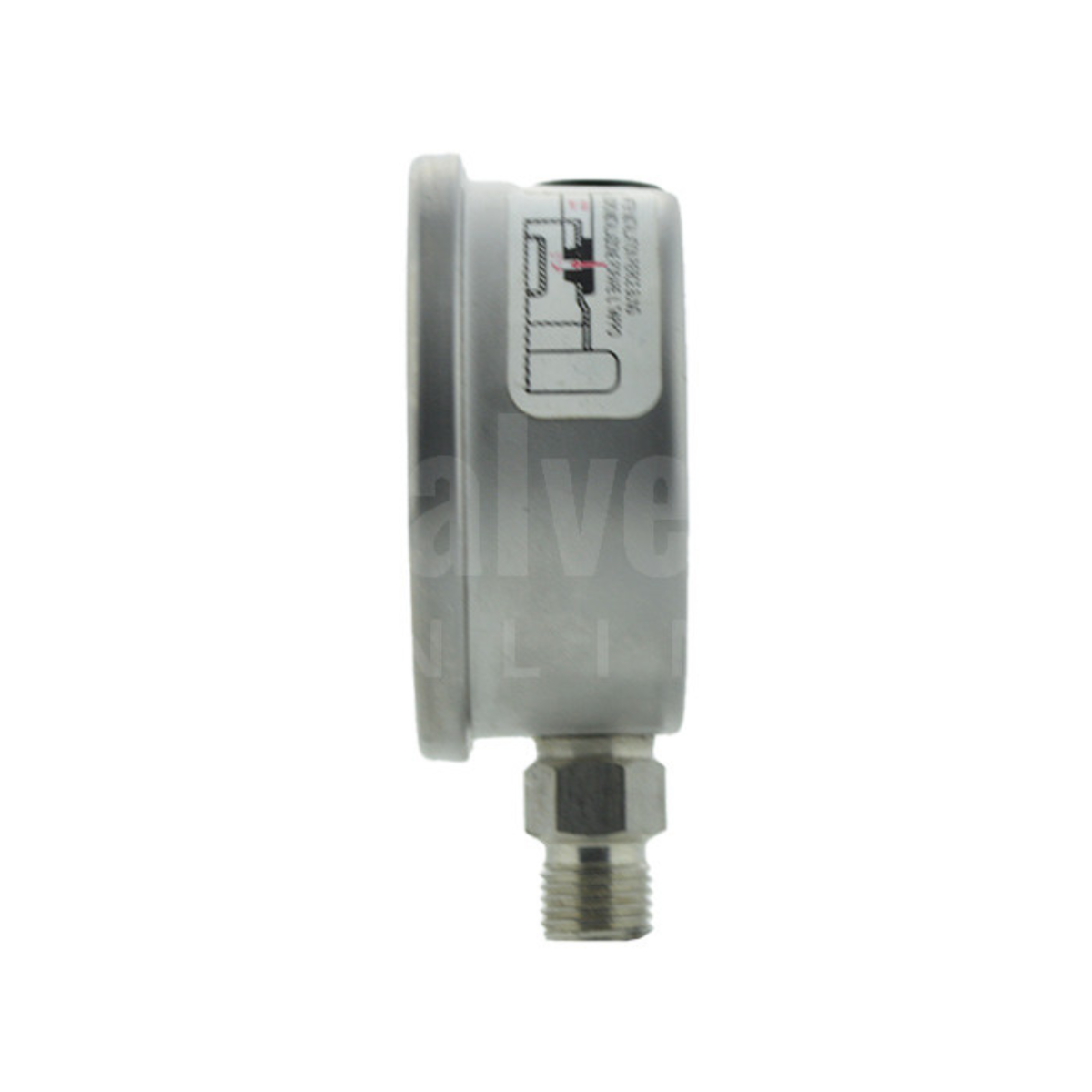

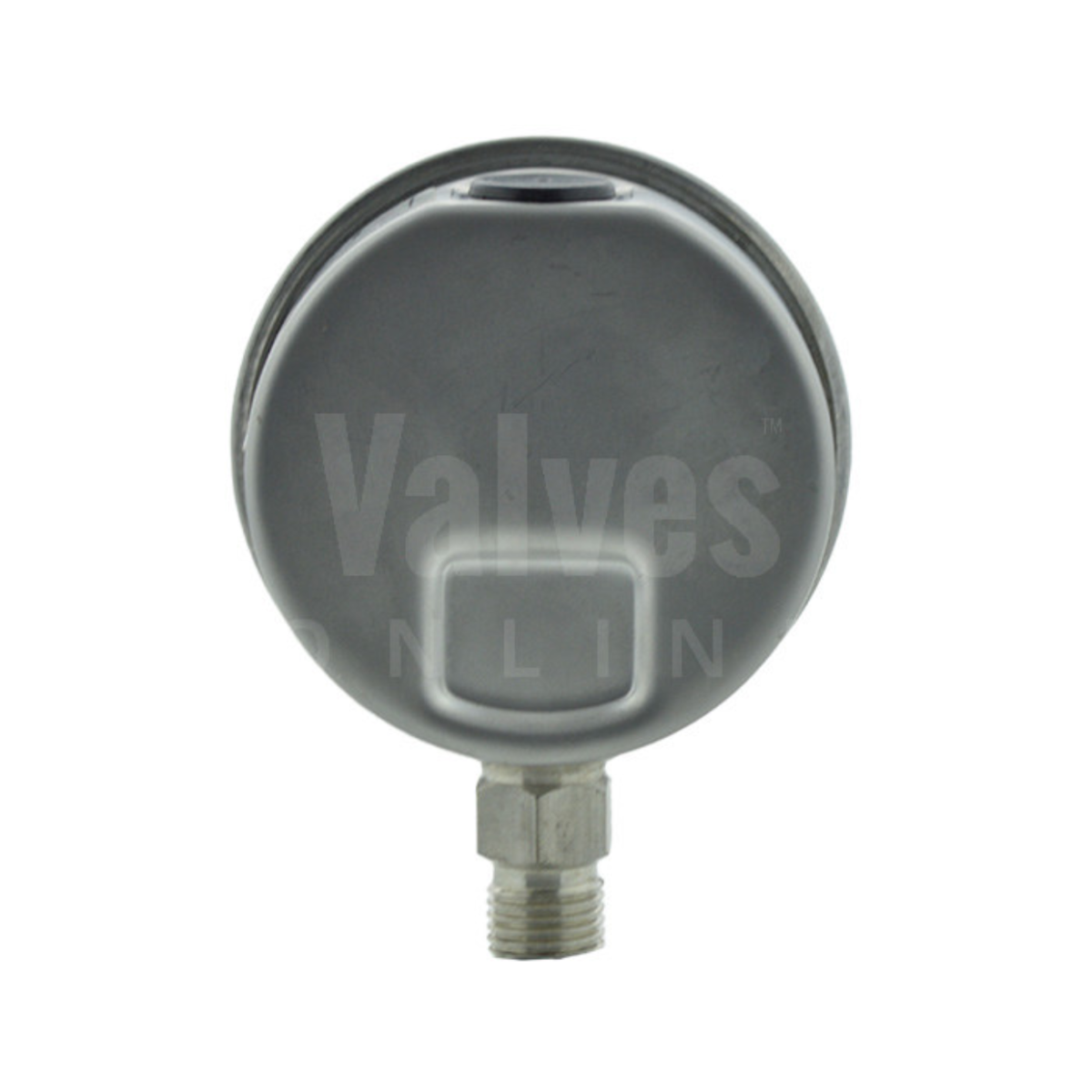

All Stainless Steel Bottom Entry Process Pressure Gauge
SKU PG2005
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- All Stainless Steel Process Pressure Gauge
- Bottom Entry, Dual Scale (Bar/PSI)
- Stainless Steel Case and Bezel
- Plastic Window (Safety Glass Option)
- AISI 316L Stainless Steel Wetted Parts
- Sizes: 40mm to 160mm, 1/8" to 1/2"
- -1 / 0 Bar up to 0 / 1000 Bar
- Standard Dry (But can be Liquid Filled)
Description
The Bottom Entry Stainless Steel Process Pressure Gauge from Gauge Select is perfect for the pharmaceutical, petrochemical, and food and drink industries. It comes in 100mm and 160mm sizes, both featuring a micro-adjustable pointer, a 30mm rear blow-out disc, and a removable stainless steel bezel.
This gauge is suitable for gases (except oxygen and acetylene) up to 25 Bar and can measure fluid liquids that are not high viscosity, high temperature (over 150°C), prone to crystallization, or corrosive to copper or tin alloys.
All our Process Pressure Gauges are designed for applications and use according to European Standard EN837-1.
Technical specification
- Type
- Pressure
- Design / Use
- All Stainless Steel
- Entry
- Bottom
- Face Diameter
- 40mm, 50mm, 63mm, 100mm, 160mm
- Range
- -1 / 0 Bar, 0 / 1 Bar, 0 / 2 Bar, 0 / 4 Bar, 0 / 7 Bar, 0 / 11 Bar, 0 / 14 Bar, 0 / 16 Bar, 0 / 20 Bar, 0 / 28 Bar, 0 / 40 Bar, 0 / 70 Bar, 0 / 160 Bar, 0 / 200 Bar, 0 / 280 Bar, 0 / 400 Bar, 0 / 700 Bar, 0 / 1000 Bar
- Connection Size / Stem Length
- 1/8", 1/4", 3/8", 1/2"
- Case Material
- Stainless Steel
- Main Features
- 40mm to 160mm -1 / 0 Bar up to 0 / 1000 Bar Dry as Standard
