VOLT

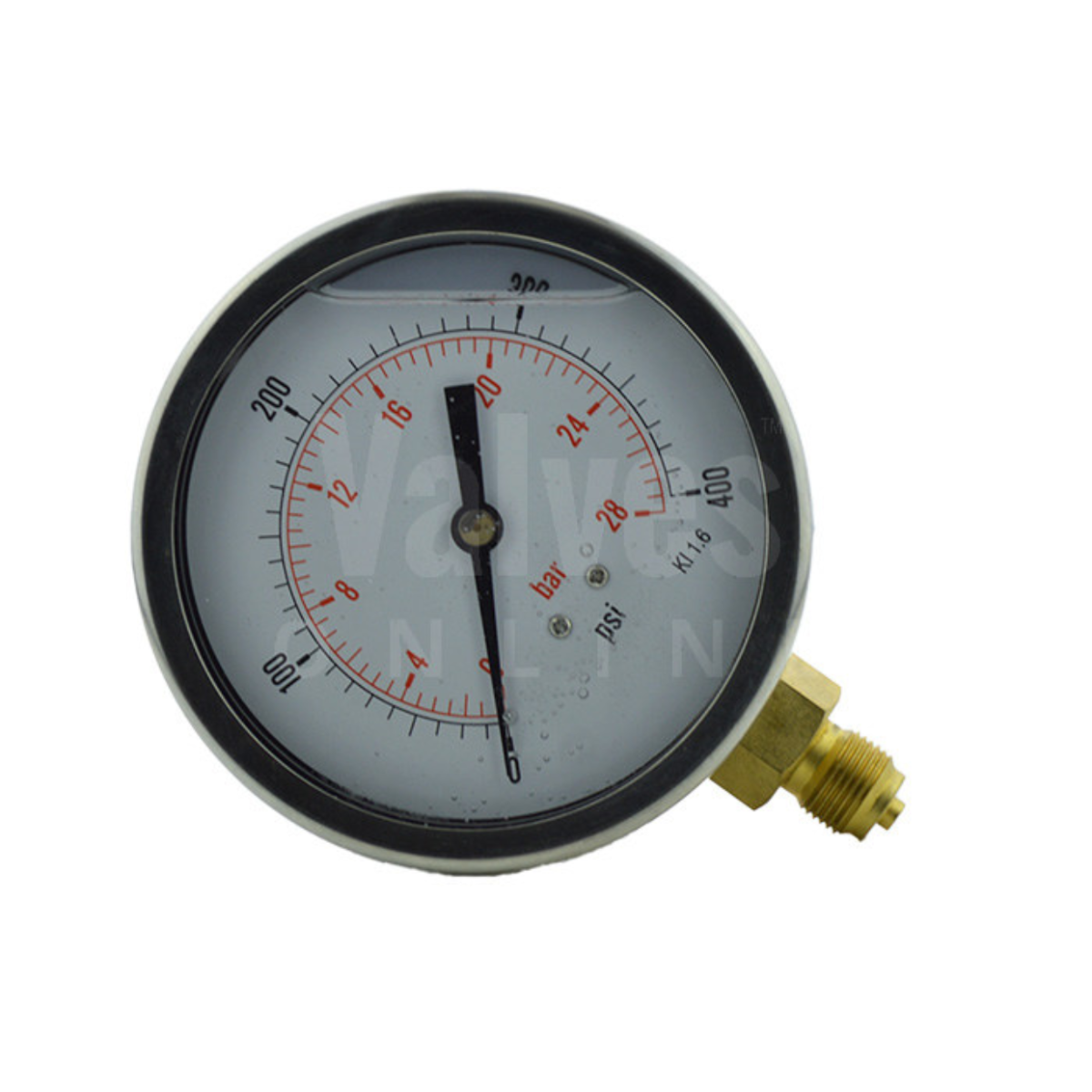

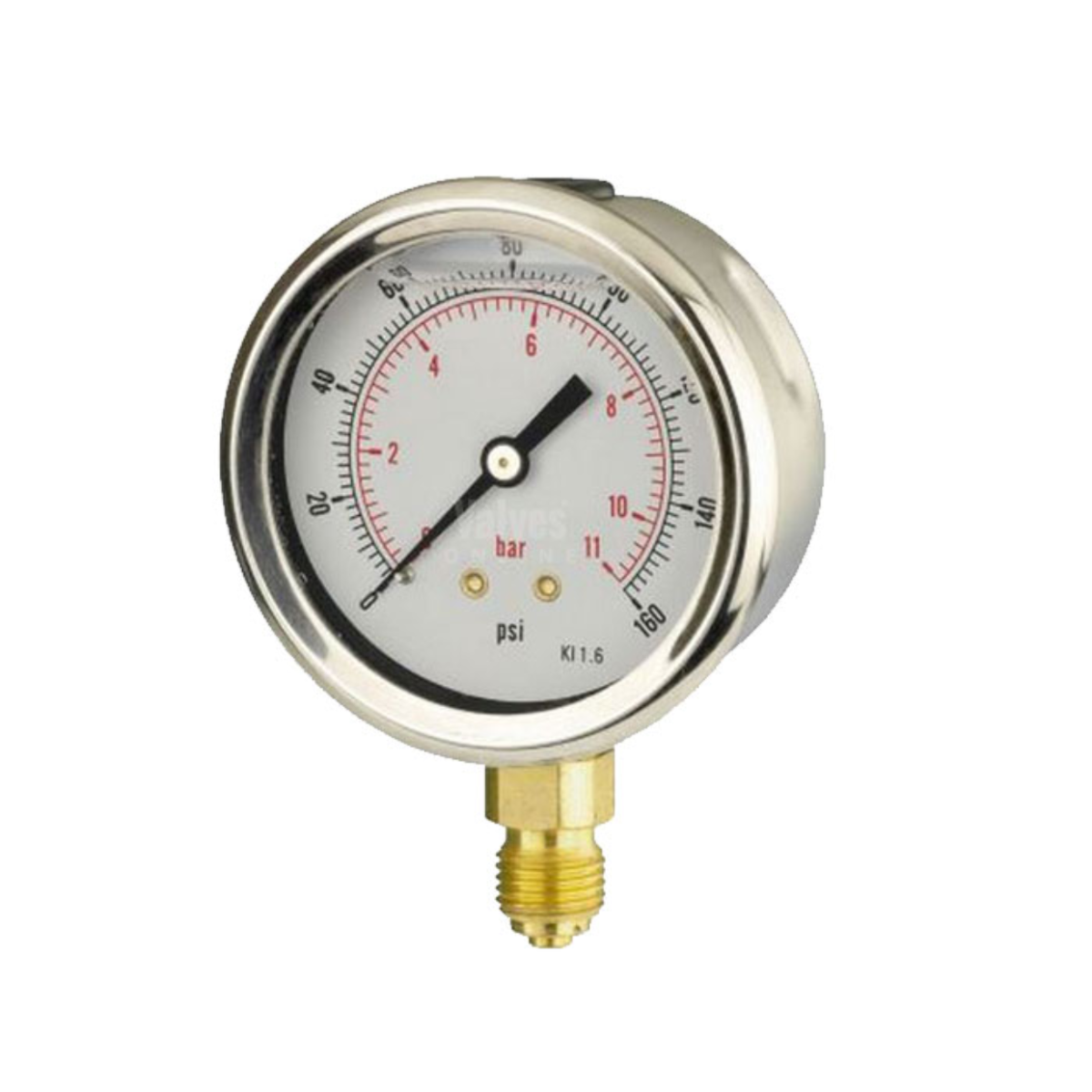

Glycerine Filled Bottom Entry Gauge
SKU PG2003
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Glycerine Filled Bottom Entry Gauge

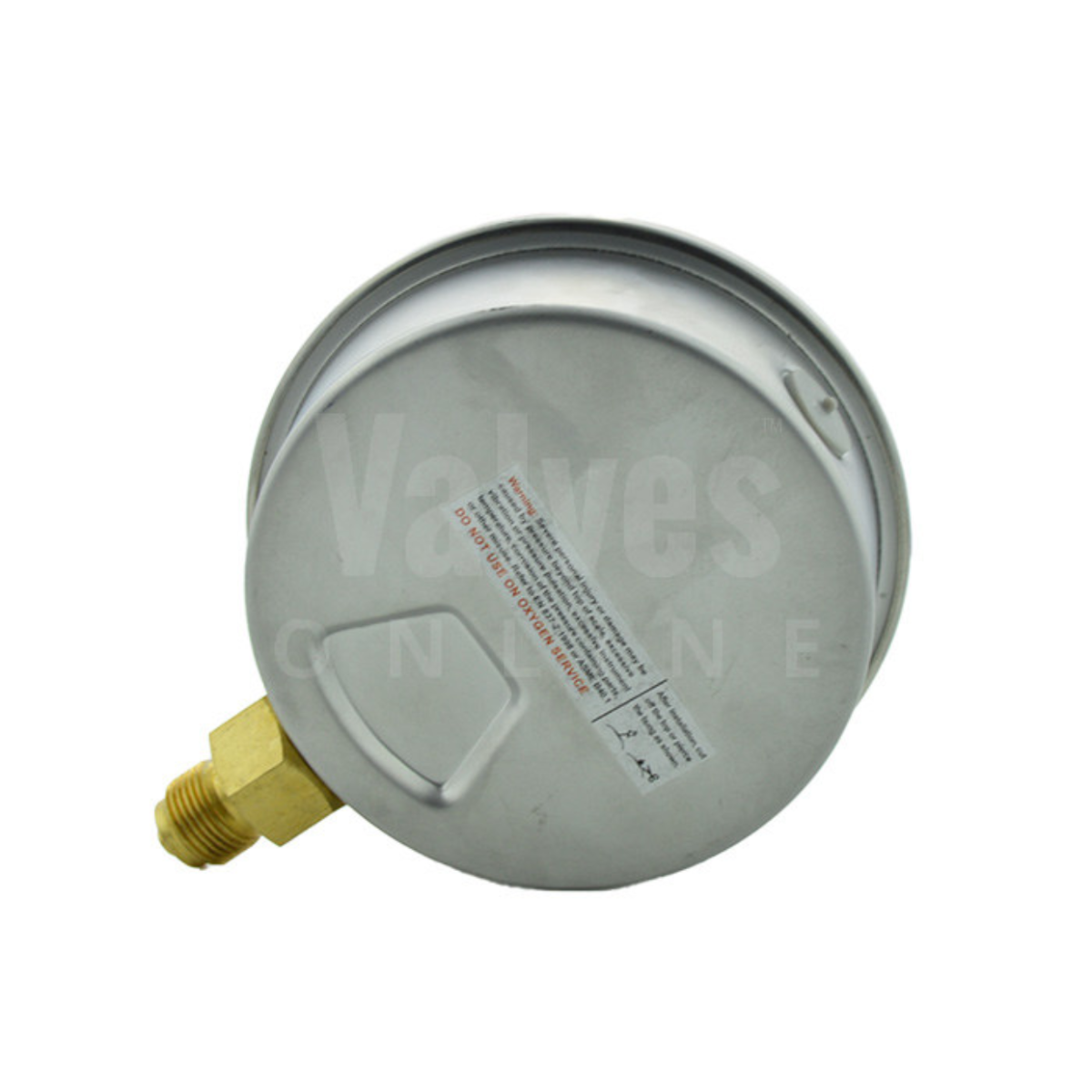

- Stainless Steel case and crimped bezel
- Plastic window
- Brass / Bronze wetted parts
- Sizes: 40mm to 160mm, 1/8" to 1/2"
- -1 / 0 Bar up to 0 / 414 Bar
Description
Our bottom entry Glycerine Filled Gauge forms part of our carefully selected range of gauges and accessories; ideally suited for applications where oscillating and / or surging pressures or vibration are present. Features a Stainless Steel case and crimped bezel, plastic window and Brass / Bronze wetted parts.
The damping effect of the Glycerine within the gauge steadies the pointer, ensuring accurate readings are taken.
All our Glycerine Filled Gauges are designed for applications and use according to European Standard EN837-1.
Please note: Chemical reactions can occur between strong oxidizing agents including: Ammonia, Chlorine, Oxygen etc and Glycerine. Gauges filled with Glycerine should therefore NOT be used with oxidizing agents.
Discolouration of Glycerine will also occur at temperatures above 55-60°C.
Glycerine Filled Bottom Entry Gauge Datasheet
Technical specification
- Type
- Pressure
- Design / Use
- Liquid Filled
- Entry
- Bottom
- Face Diameter
- 40mm, 50mm, 63mm, 100mm, 160mm
- Range
- -1 / 0 Bar, 0 / 1 Bar, 0 / 2 Bar, 0 / 4 Bar, 0 / 7 Bar, 0 / 11 Bar, 0 / 14 Bar, 0 / 21 Bar, 0 / 28 Bar, 0 / 41 Bar, 0 / 70 Bar, 0 / 103 Bar, 0 / 138 Bar, 0 / 172 Bar, 0 / 207 Bar, 0 / 275 Bar
- Connection Size / Stem Length
- 1/8", 1/4", 3/8", 1/2"
- Case Material
- Stainless Steel
- Main Features
- 40mm to 160mm -1 / 0 Bar up to 0 / 414 Bar Glycerine Filled
