VOLT

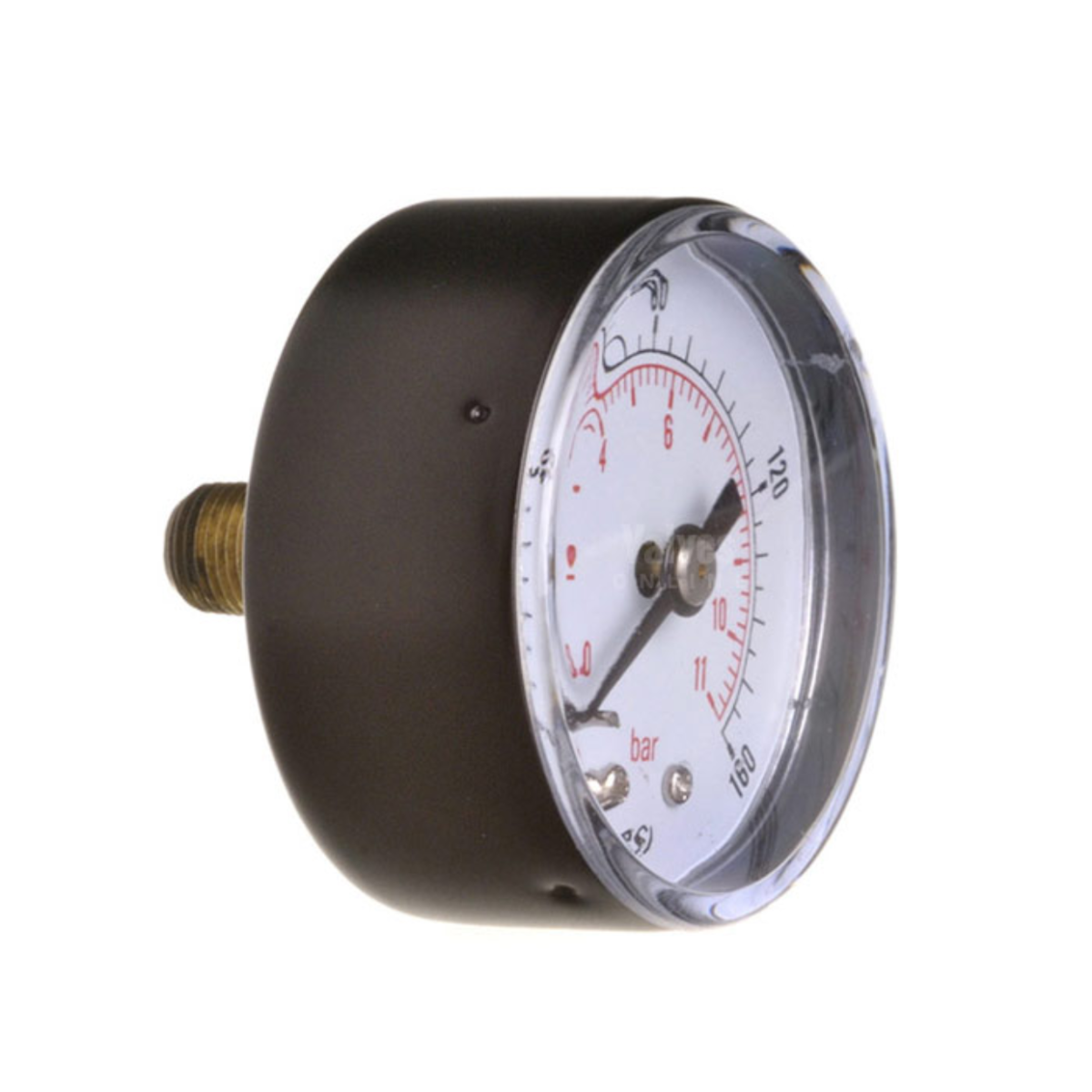

General Purpose Pressure Gauge
SKU PG2000
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- General Purpose Pressure Gauge
- Black enameled case
- Plastic window
- Brass / Bronze wetted parts
- Sizes: 40mm to 160mm, 1/8" to 1/2"
- -30 / 0 Bar up to 0 / 70 Bar
Description
Our General Purpose Pressure Gauge forms part of our carefully selected range of gauges and accessories; ideally suited for the compressed air market sector, in addition to HVAC and pneumatic applications. Features a Black enameled steel case, plastic window and Brass / Bronze wetted parts. Configurable as either Bottom or Back Entry connection.
Suitable for gases, excluding oxygen or acetylene, up to a maximum of 25 Bar and the the measurement of fluid liquids that are NOT : high viscous, high temperature (over 60°C), likely to crystallize / solidify or that are corrosive to copper or tin alloys.
All our General Purpose Gauges are designed for applications and use according to European Standard EN837-1.
General Purpose Pressure Gauge Datasheet
Technical specification
- Type
- Pressure
- Design / Use
- General Purpose
- Entry
- Bottom, Back
- Face Diameter
- 40mm, 50mm, 63mm, 100mm, 160mm
- Range
- -30 / 0 Bar, 0 / 1 Bar, 0 / 2 Bar, 0 / 4 Bar, 0 / 7 Bar, 0 / 11 Bar, 0 / 14 Bar, 0 / 21 Bar, 0 / 28 Bar, 0 / 41 Bar, 0 / 70 Bar
- Connection Size / Stem Length
- 1/8", 1/4", 3/8", 1/2"
- Case Material
- Black Enamelled Steel
- Main Features
- 40mm to 160mm -30 / 0 Bar up to 0 / 70 Bar Back or Bottom Entry
