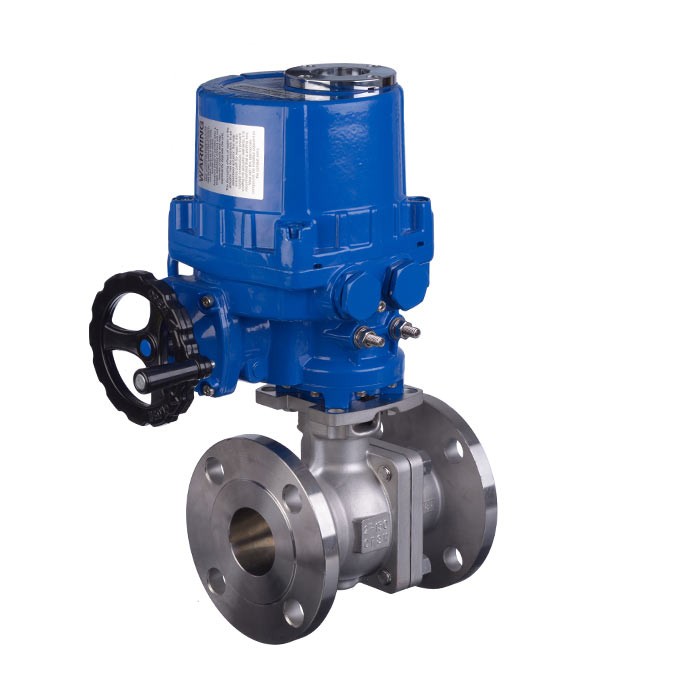

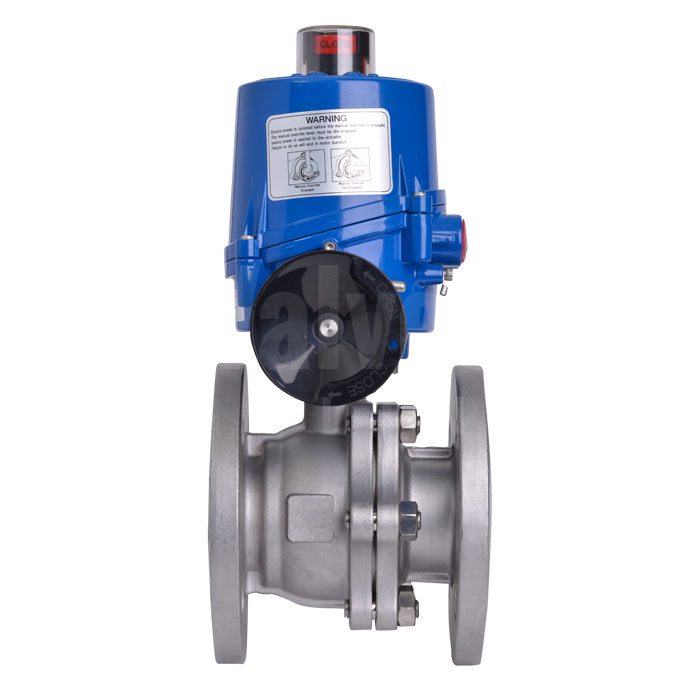

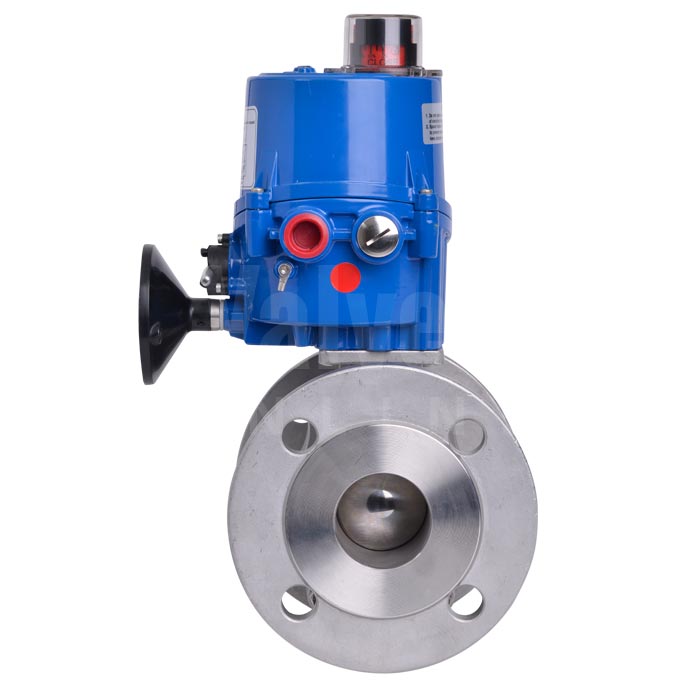

Electric Actuated Stainless Steel PN40 Ball Valve – Mars Series 90D
SKU EA5052
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars 90D PN40 Motorised Ball Valve
- Direct Mounting between Valve and Actuator
- Stainless Steel Body – Full Bore
- Flanged PN40
- RPTFE Seats, Graphite Seals
- Sizes: 1/2" - 6" (DN15 - DN150)
- Powerful Electric Actuator
- Manual Override & Limit Switches Included
- Various Voltage Options
Description
A combination of a powerful Electric actuator, fitted to our Mars series 90D-60-F4 heavy duty high performance, flanged PN40 ball valve in stainless steel. The valve comprises of a split 2-piece body with RPTFE Seats and graphite seals. The electric actuator has the capabilities to bring to you an exceptional combination, that offers trouble free operation and long life.
The actuator can be supplied in a range of voltages and has limit switches, optical indicator manual override and torque limiter as standard.
Technical specification
- End Connection
- Flanged PN40
- Body Material
- Stainless Steel
- Seal Material
- Graphite
- Seat Material
- RPTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
- Design
- 2 Piece, Full Bore
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- Up to: 180°C
- Pressure
- PN40 Rated
- Actuator
- HQ Electric Actuator
- Actuator Voltages
- 24V DC, 24V AC, 110V AC, 230V AC
- Actuator Features
- On/Off, Manual Override, Limit Switches, Optical Indicator
