Images are illustrative and may not show every size or variation.
Mars

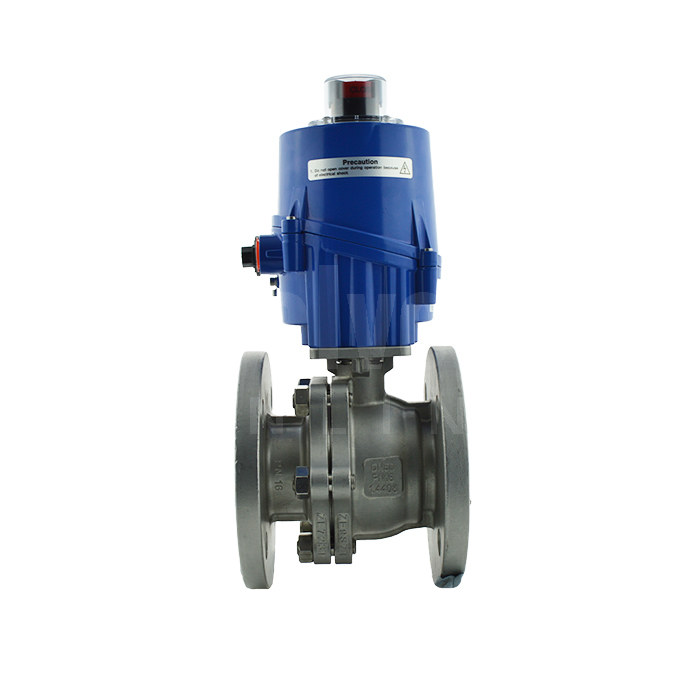

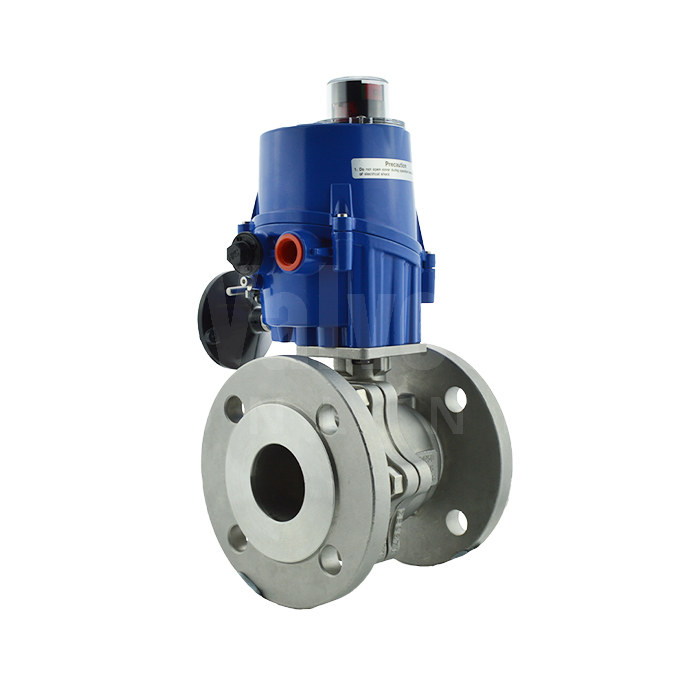

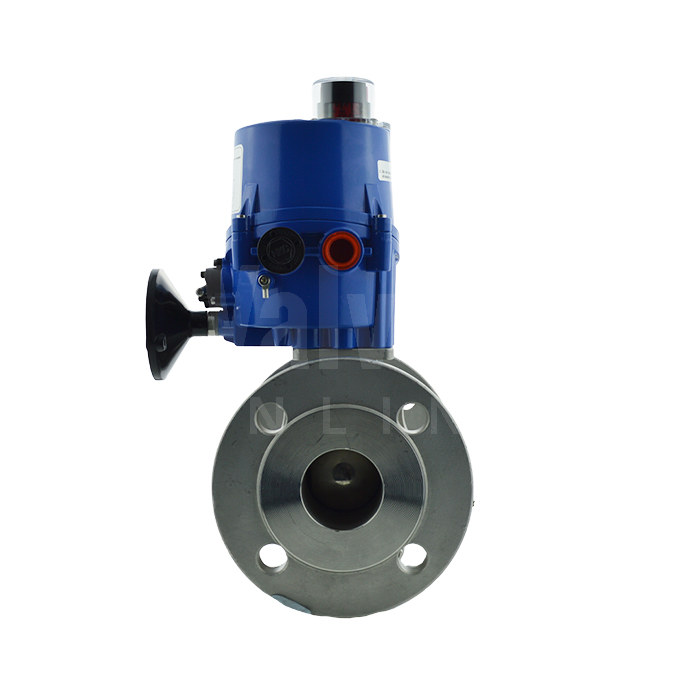

Electric Actuated Stainless Steel PN16 Ball Valve – Mars Series 90D
SKU EA5050
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Motorised Mars 90D PN16 Ball valve
- Direct Mounting between Valve and Actuator
- Stainless Steel Body – Full Bore
- Flanged PN16 - PN16 Rated
- Powerful Electric Actuator
- RPTFE Seats, Graphite Seals
- Sizes: 1/2" - 6" (DN15 - DN150)
- Various Voltage Options
Description
A combination of a powerful Electric actuator, fitted to our Mars series 90D-40-F4 heavy duty high performance, flanged PN16 ball valve in stainless steel. The valve comprises of a split 2-piece body with RPTFE Seats and graphite seals. The electric actuator has the capabilities to bring to you an exceptional combination, that offers trouble free operation and long life.
The actuator can be supplied in a range of voltages and has limit switches, optical indicator manual override and torque limiter as standard.
Technical specification
- End Connection
- Flanged PN16
- Body Material
- Stainless Steel
- Seal Material
- Graphite
- Seat Material
- RPTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
- Design
- 2 Piece
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- Up to: 180°C
- Actuator
- HQ Electric Actuator
- Actuator Voltages
- 24V DC, 24V AC, 110V AC, 230V AC
- Actuator Features
- On/Off, Manual Override, Limit Switches, Optical Indicator
