Images are illustrative and may not show every size or variation.
Mars

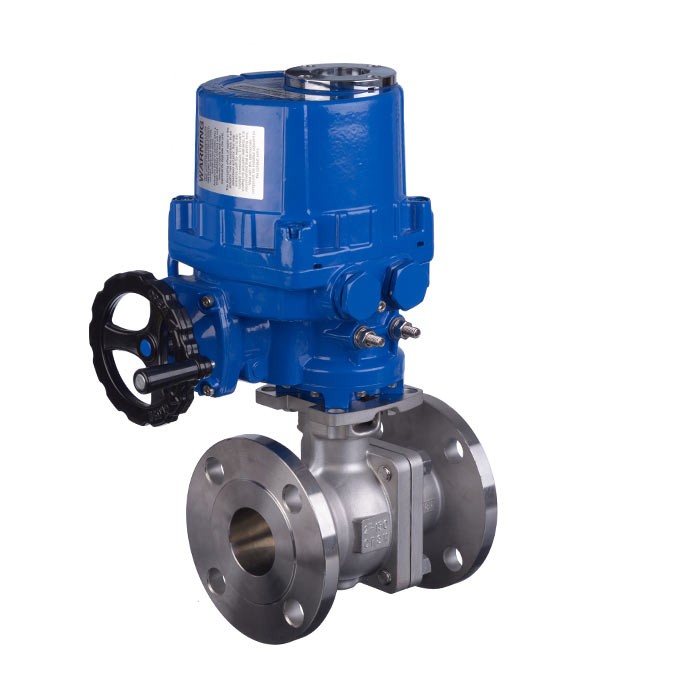

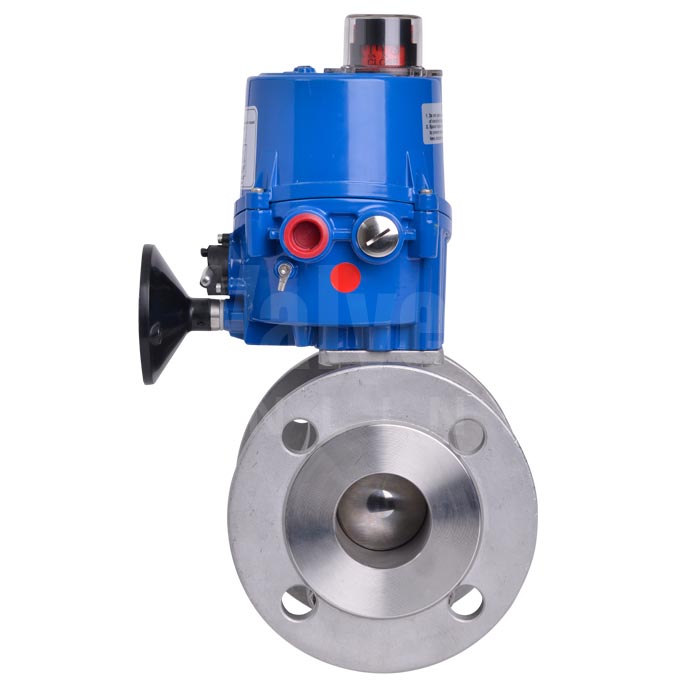

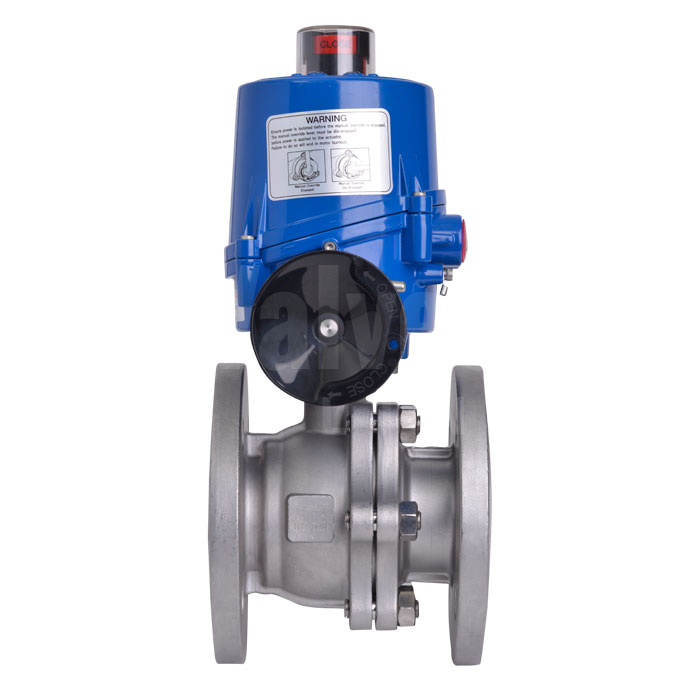

Electric Actuated Stainless Steel ANSI 300 Ball Valve – Mars Series 90D
SKU EA5053
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Motorised Mars 90D ANSI 300 Ball Valve
- Direct Mounting between Valve & Actuator
- Stainless Steel Body – Full Bore
- Flanged ANSI 300
- RPTFE Seats, Graphite Seals
- Sizes: 1/2" - 6" (DN15 - DN150)
- Powerful Electric Actuator
- Manual Override & Limit Switches
- Various Voltage Options
Description
A combination of a powerful Electric actuator, fitted to the Mars series 90D-20-F4 heavy duty high performance, flanged ANSI 300 ball valve in stainless steel. The valve comprises of a split 2-piece body with RPTFE Seats and graphite seals. The electric actuator has the capabilities to bring to you an exceptional combination, that offers trouble free operation and long life.
The actuator can be supplied in a range of voltages and has limit switches, optical indicator manual override and torque limiter as standard.
Technical specification
- End Connection
- Flanged ANSI 300
- Body Material
- Stainless Steel
- Seal Material
- Graphite
- Seat Material
- RPTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
- Design
- Full Bore
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- Up to: 180°C
- Pressure
- Class 300 Rated
- Actuator
- HQ Electric Actuator
- Actuator Voltages
- 24V DC, 24VAC, 110VAC, 230VAC
- Actuator Features
- On/Off, Manual Override, Optical Indicator, Limit Switches
