Mars

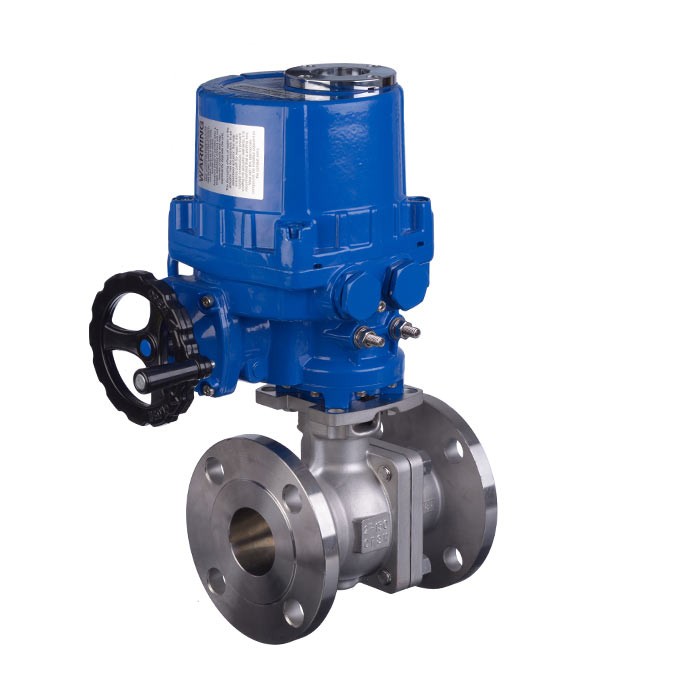

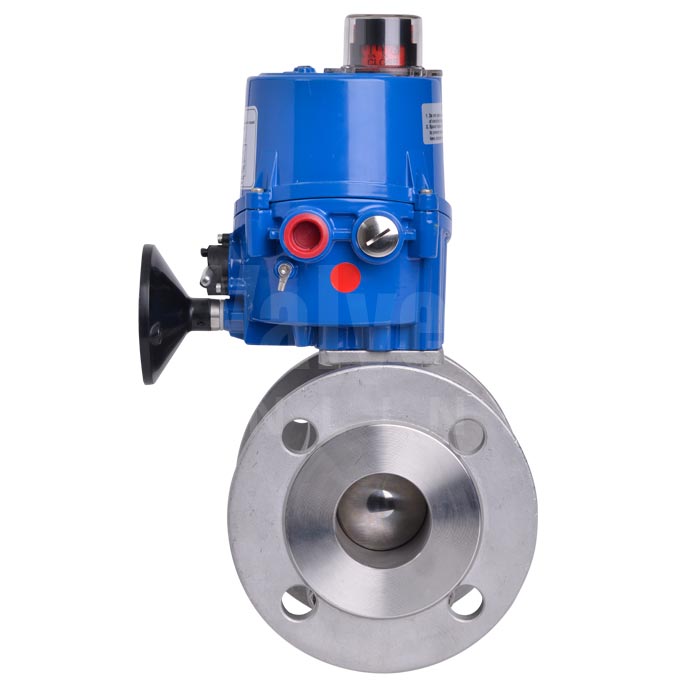

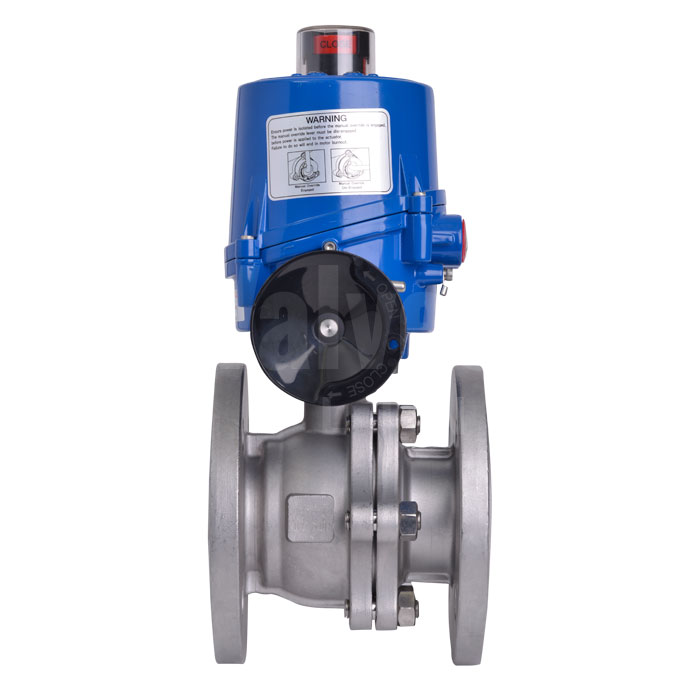

Electric Actuated Stainless Steel ANSI 150 Ball Valve – Mars Series 90D
SKU EA5051
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Motorised Mars 90D ANSI 150 Ball Valve
- Direct Mounting between Valve & Actuator
- Stainless Steel Body – Full Bore
- Flanged ANSI 150
- RPTFE Seats, Graphite Seals
- Sizes: 1/2" - 6" (DN15 - DN150)
- Powerful Electric Actuator
- Manual Override & Limit Switches
- Various Voltage Options
Description
A combination of a powerful Electric actuator, fitted to our Mars series 90D-10-F4 heavy duty high performance, flanged ANSI 150 ball valve in stainless steel. The valve comprises of a split 2-piece body with RPTFE Seats and graphite seals. The electric actuator has the capabilities to bring to you an exceptional combination, that offers trouble free operation and long life.
The actuator can be supplied in a range of voltages and has limit switches, optical indicator, manual override and torque limiter as standard.
Technical specification
- End Connection
- Flanged ANSI 150
- Body Material
- Stainless Steel
- Seal Material
- Graphite
- Seat Material
- RPTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
- Design
- 2 Piece, Full Bore
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- Up to: 180°C
- Pressure
- Class 150 Rated
- Actuator
- HQ Electric Actuator
- Actuator Voltages
- 24V DC, 24V AC, 110V AC, 230V AC
- Actuator Features
- On/Off, Manual Override, Limit Switches, Optical Indicator
