Mars
ATEX 90D Pneumatic Actuated ANSI 150 Ball Valve
SKU PX5051
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 6" (DN150)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumatic Actuated Mars 90D Ball Valve ANSI 150
- Fire safe seats and Anti static device API607
- ATEX approval on Valve and Actuator
- RPTFE Seat, Stainless steel body
- Flanged ANSI 150#
- Sizes from 1/2” – 6”
- Spring close or double acting actuator options
Description
Our Pneumatic Actuated Mars Ball Valve 90D Fire Safe Anti Static ANSI 150 provides safe operation for both general and industrial chemical applications and hazardous environments. Assembled from ATEX approved components, a full bore high performance valve with Stainless Steel body, reinforced RTFE ball seat, Graphite filled body and neck seals.

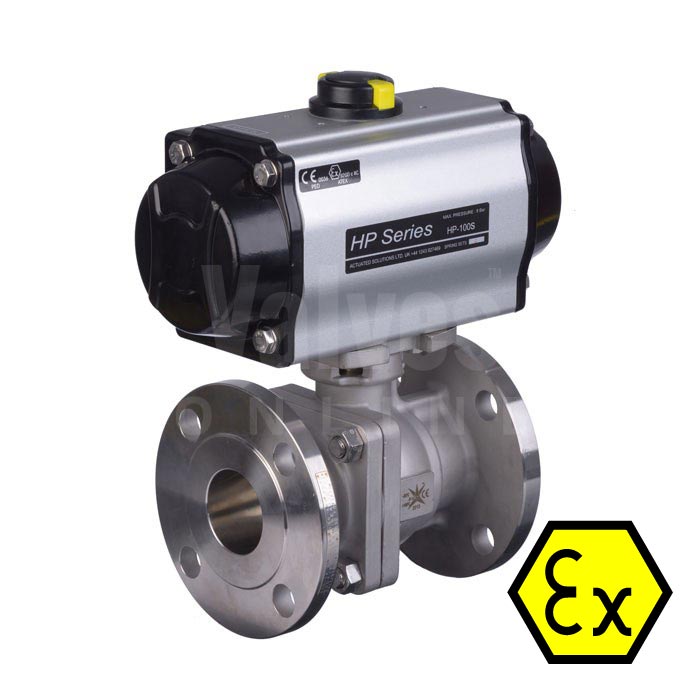

A combination of a powerful pneumatic ATEX approved actuator, fitted to a series 90D heavy duty high performance, flanged ANSI 150 ball valve. The valve comprises of a split 2- piece body with seals that are Fire Safe Certified to API 607 4th Edition and fitted with an Antistatic spring-loaded device. The Pneumatic actuator offers single acting (fail closed or open) or Double acting options. Sized on 5.5 bar pilot air supply with 30% added safety factor. This unit gives you an exceptional combination, that’s trouble free.

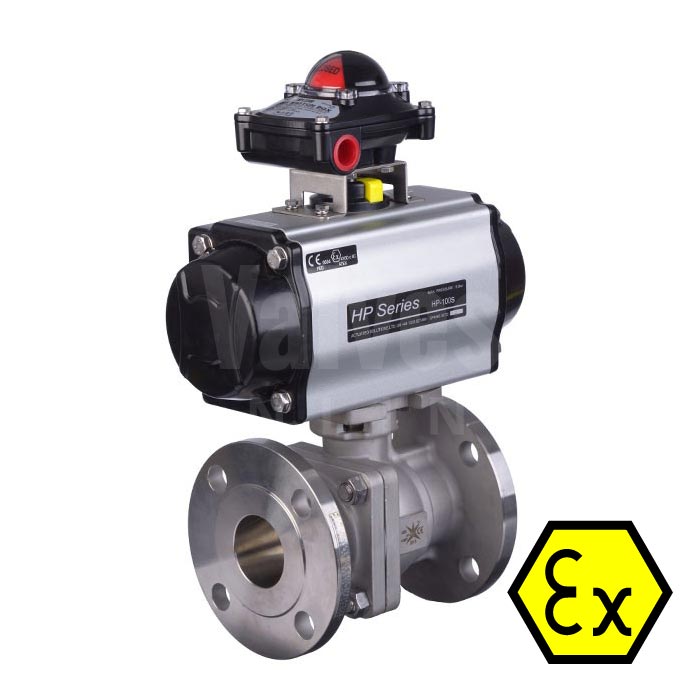

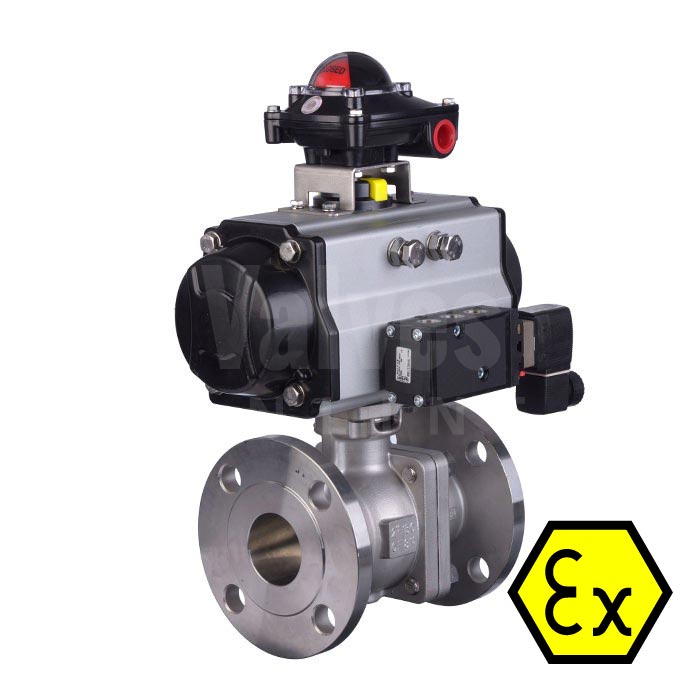

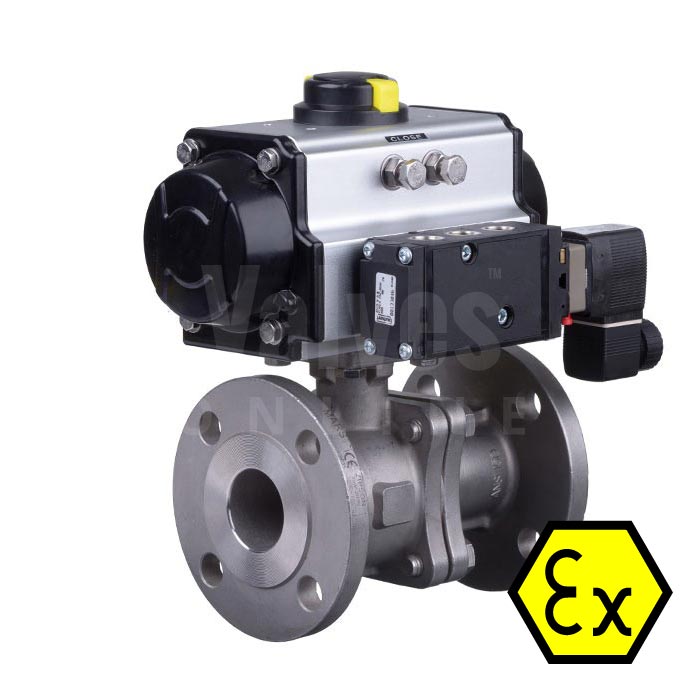

We offer various accessories that can be fitted onto the actuator such as I.S or EX switch boxes, solenoids and positioners, all suitable for hazardous areas.
ATEX / PED certified actuator and CE marked approved. SIL2 rated.
All Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- Flanged ANSI 150
- Body Material
- Stainless Steel
- Seat Material
- RPTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 6" (DN150)
- Design
- 2 Piece, Full Bore, Fire Safe
- Industry / Approvals
- ATEX
- Temperature Range
- -20°C to 180°C
- Pressure
- ANSI 150 Rated
- Actuator
- HP Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
