Images are illustrative and may not show every size or variation.
VOLT

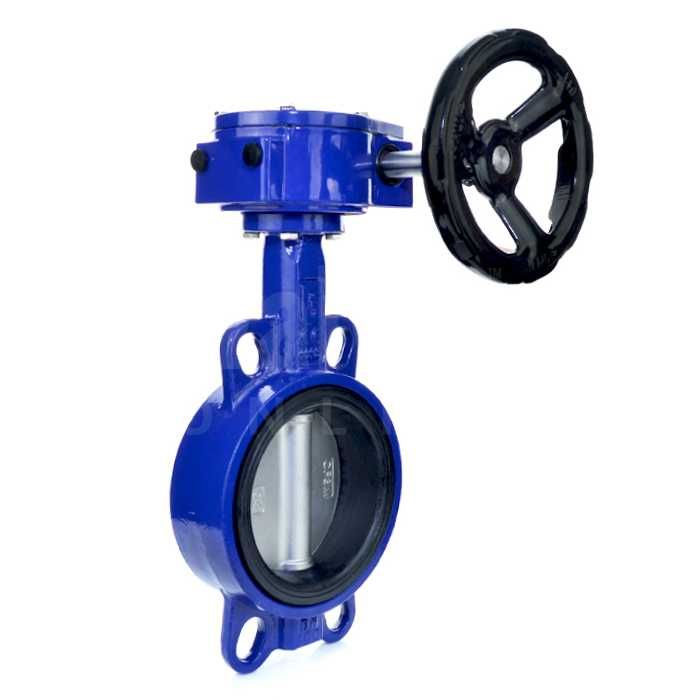

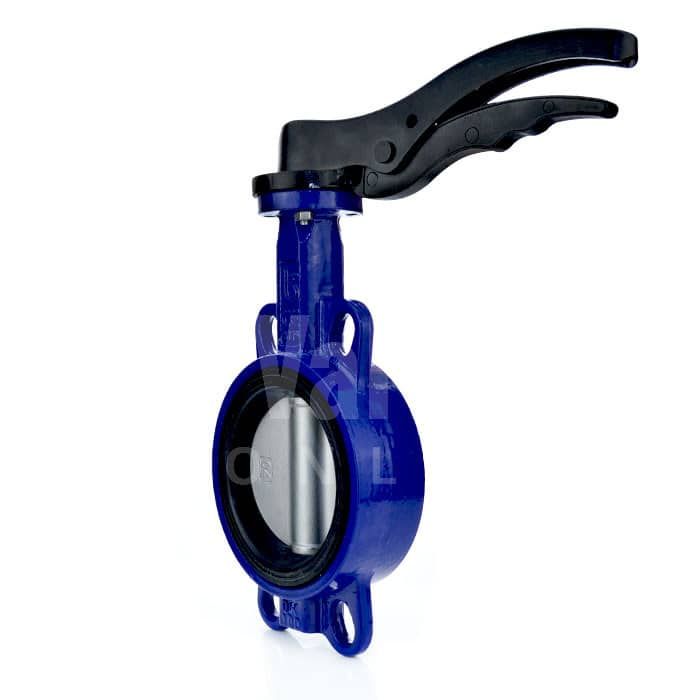

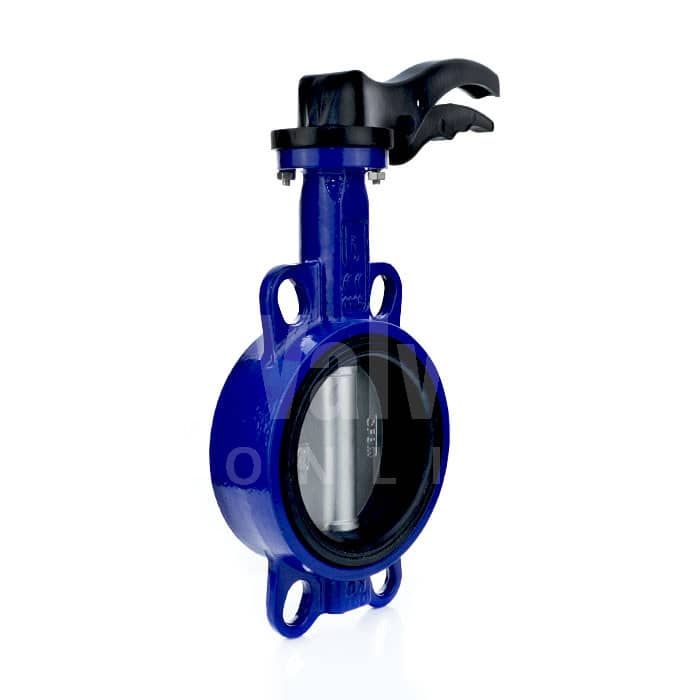

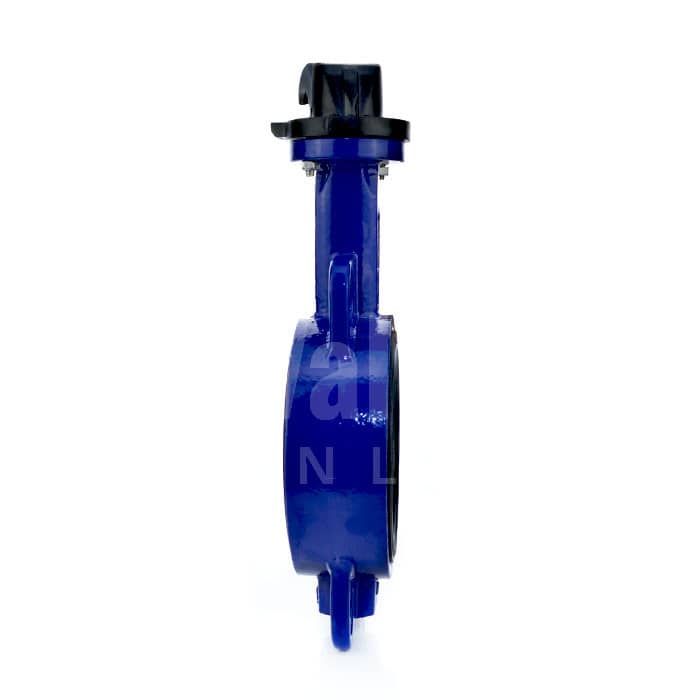

WRAS Approved Wafer Butterfly Valve - EPDM Liner
SKU BF4686
Sizes: 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Ductile Iron body
- Stainless Steel disc
- EPDM liner
- Wafer Pattern
- Lever or Gearbox operator
- Sizes 1 1/2" to 12"
- WRAS approved
- To fit between PN6/10/16, ANSI 150, Table D & Table E flanges
Description
Our WRAS Wafer Butterfly Valve is suitable for a range of general purpose, agricultural, industrial and water process applications; water distribution, water treatment, heating and conditioning (HVAC) and media including compressed air, gas, oils and hydrocarbons. A reliable butterfly valve featuring an epoxy coated Ductile Iron body, Stainless Steel disc, EPDM liner and ISO mounting top for actuation.
VOLT butterfly valves are maintenance free, economical and comply with 97/23/CE (PED) Directive CE 1115.
Suitable to fit between PN6/10/16, ANSI 150, Table D and Table E flanges.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
A range of VOLT WRAS Approved Actuated Butterfly Valves are available on request, subject to your requirements and specifications. Why not discuss your project or application further with a member of our technical team..
Call 01822 855600, 0161 480 5700 or contact us via our online form.
Technical specification
- Design
- Wafer
- Flange Accommodation
- PN6, PN10, PN16, ANSI 150, Table D, Table E
- Body Material
- Ductile Iron
- Size
- 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- Stainless Steel
- Liner
- EPDM
- Industry / Approvals
- WRAS, HVAC
