VOLT

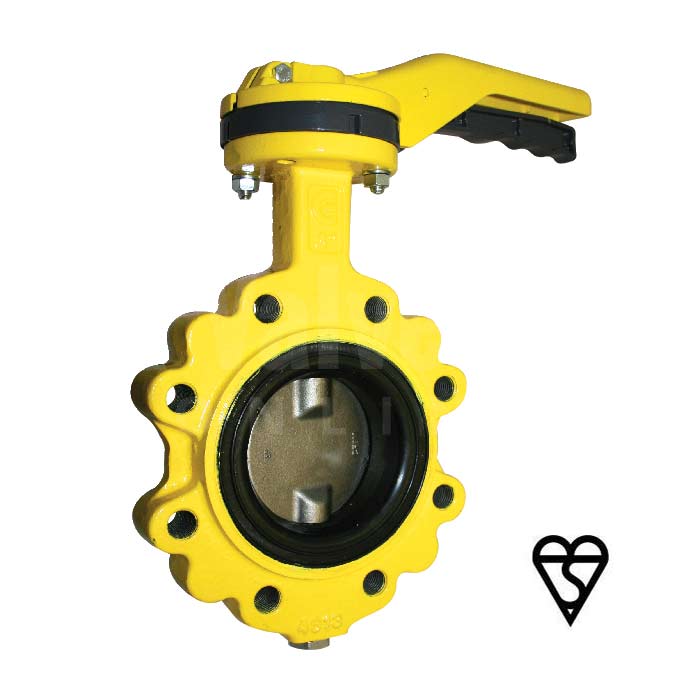

Ductile Iron Butterfly Valve BSI Gas Approved
SKU BF5019
Sizes: 3" (DN80), 4" (DN100), 6" (DN150)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
Description
A Resilient seated Gas Approved butterfly valve suitable for a maximum operating pressure of 16 bar at temperatures between -25°C to + 100°C. Epoxy coated ductile iron body with NBR soft seated liner and stainless steel disc. The valve is lugged and tapped and suitable for end of line duty. Supplied with notched lever handle ideally suited to throttling. Available in sizes 3", 4" and 6" with 2", 8" and 10" available on request.
Can easily be adapted for electric or pneumatic actuation on request.
Natural gas lines at medium working pressure and temperature range from -25° to +100°C
Gas approved M9 Specifications T/SP/PRS/38
Technical specification
- Design
- Lugged
- Flange Accommodation
- PN16
- Body Material
- Ductile Iron
- Size
- 3" (DN80), 4" (DN100), 6" (DN150)
- Disc Material
- Stainless Steel
- Liner
- NBR (BUNA)
- Industry / Approvals
- Gas
- Main Features
- 3" to 6" Lugged PN16 M9 Specifications T/SP/PRS/3
