VOLT

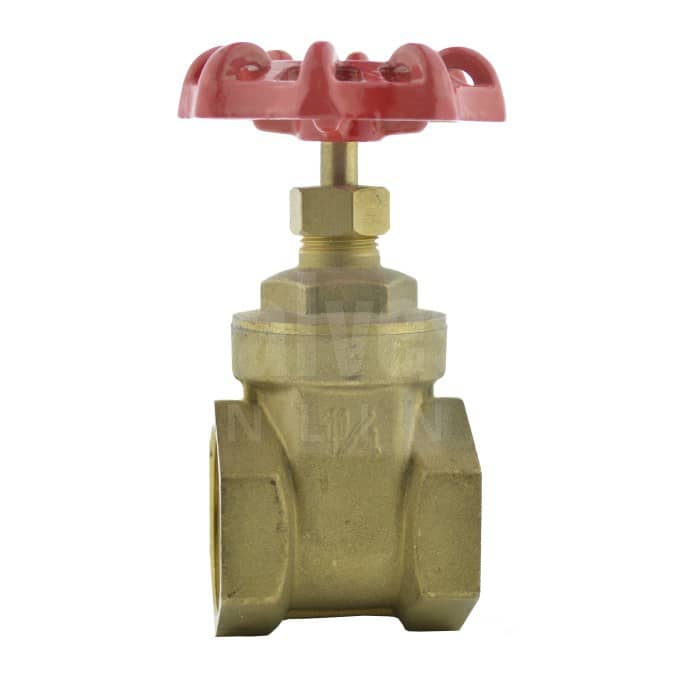

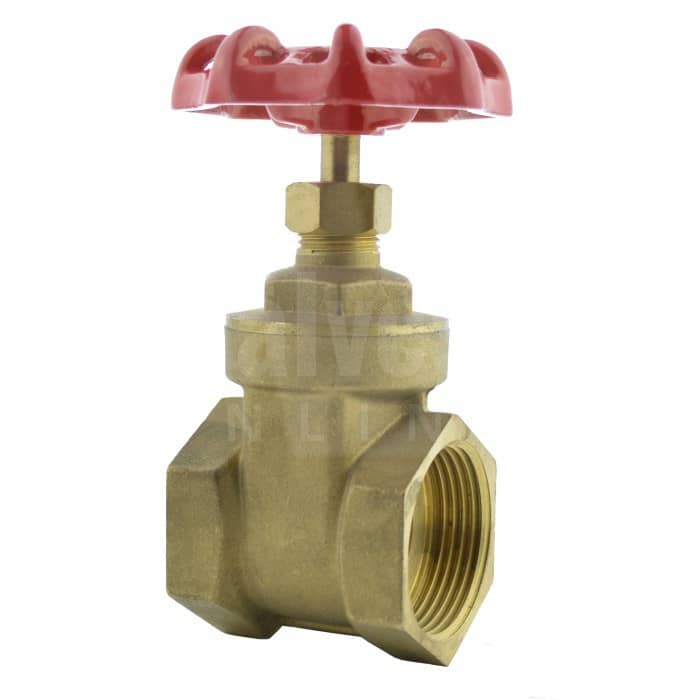

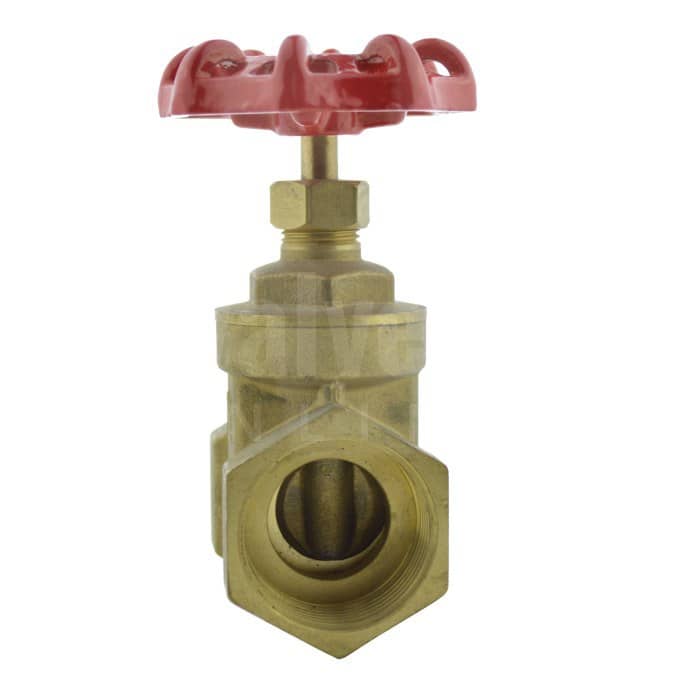

WRAS Approved Screwed Brass Gate Valve - BSPT
SKU GV5000
Sizes: 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Manual Gate Valve
- Brass Body
- PTFE seals
- Screwed BSPT (PN20)
- Sizes 1/4" to 4"
- WRAS Approved
Description
Our Screwed Brass Gate Valve forms part of our VOLT range of manual valves; suitable for isolation of fluids and general purpose applications. Rated to PN20 this full bore manual valve with non-rising stem offers a robust and smooth operation via a handwheel. Available with BSP screwed threaded connections. For NPT connections please see GV5009 .
VOLT Brass Gate valves are maintenance free, economical and feature a brass body, bonnet and where applicable cast hand wheel.
Manufactured to BS5154.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Size
- 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
- Industry / Approvals
- WRAS, HVAC
- Design
- Handwheel Non Rising Stem
- Main Features
- 1/4" to 4" BSPT PN20 Rated
