Plimat

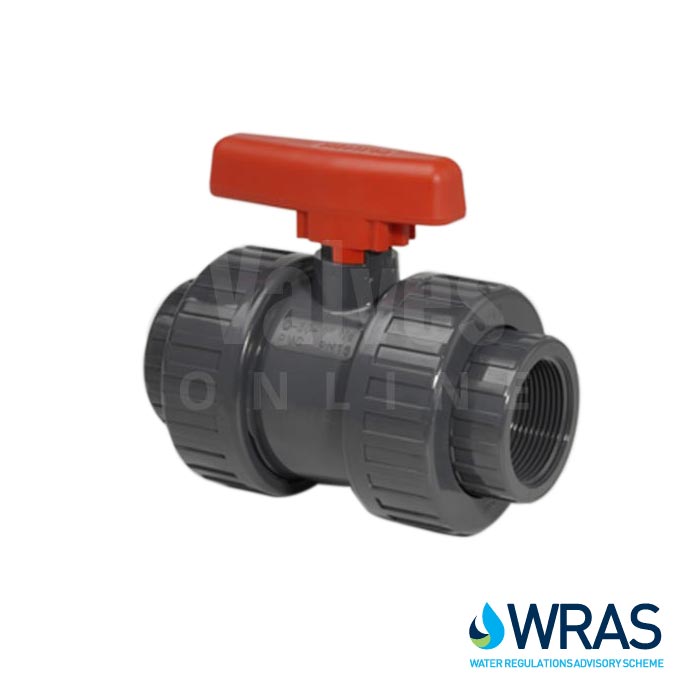

WRAS Approved PVC Double Union Ball Valve
SKU BV5560
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- PVC-U Ball Valve
- WRAS Approved
- BSP Threaded, Imperial or Metric Solvent Socket
- 1/2" to 3" & 20mm to 90mm
- EN 1452 Part 3, DIN 2999, ISO 7/1
Description
Our PVC-U industrial double union ball valve is WRAS approved and available with a choice of BSP Threaded, Imperial or Metric Solvent Socket in sizes 1/2" to 3" and 20mm to 90mm.
This ball valve has WRAS Approval, with the material meeting the requirements of the Water Regulations Advisory Scheme for potable water. A valid certificate and approval number can be obtained upon request.
The chemical resistance properties of PVC-U are excellent and is resistant to most solutions of acids, alkalis, salts and solvents that can be mixed with water.
WRAS Approved PVC Double Union Ball Valve Datasheet
Technical specification
- End Connection
- BSP, Imperial Solvent Socket, Metric Solvent Socket
- Body Material
- PVC-U
- Seal Material
- EPDM
- Seat Material
- HYTREL
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm
- Design
- Double Union
- Industry / Approvals
- WRAS
- Lever
- Manual Lever
- Pressure
- Up to: 16 bar (1/2" to 2"), 10 Bar (2 1/2" to 3")
