Images are illustrative and may not show every size or variation.
Plimat

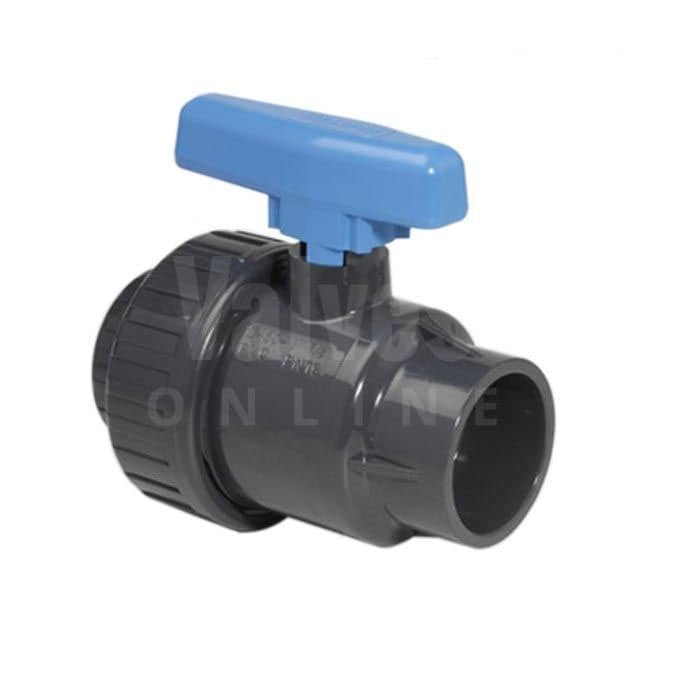

PVC-U Economy Single Union Ball Valve
SKU BV5562
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- PVC-U Single Union Ball Valve
- Economy
- Imperial or Metric Solvent Socket
- Single Union x BSP Threaded
- 1/2" to 3" & 20mm to 90mm
- EN 1452 Part 3, DIN 2999, ISO 7/1
Description
Our PVC-U economy single union ball valve is available with a choice of Imperial Solvent Socket, Metric Solvent Socket or Single Union x BSP Threaded end connections.
This low cost plastic ball valve is available in sizes 1/2" to 3" and 20mm to 90mm and features EPDM seals.
The chemical resistance properties of PVC-U are excellent and is resistant to most solutions of acids, alkalis, salts and solvents that can be mixed with water.
PVC-U Economy Single Union Ball Valve Datasheet
Technical specification
- End Connection
- BSP, Imperial Solvent Socket, Metric Solvent Socket
- Body Material
- PVC-U
- Seal Material
- EPDM
- Seat Material
- HYTREL
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm
- Design
- Single Union
- Lever
- Manual Lever
- Pressure
- Up to: 16 Bar (1/2" to 2"), 10 Bar (2 1/2" to 3")
