VOLT

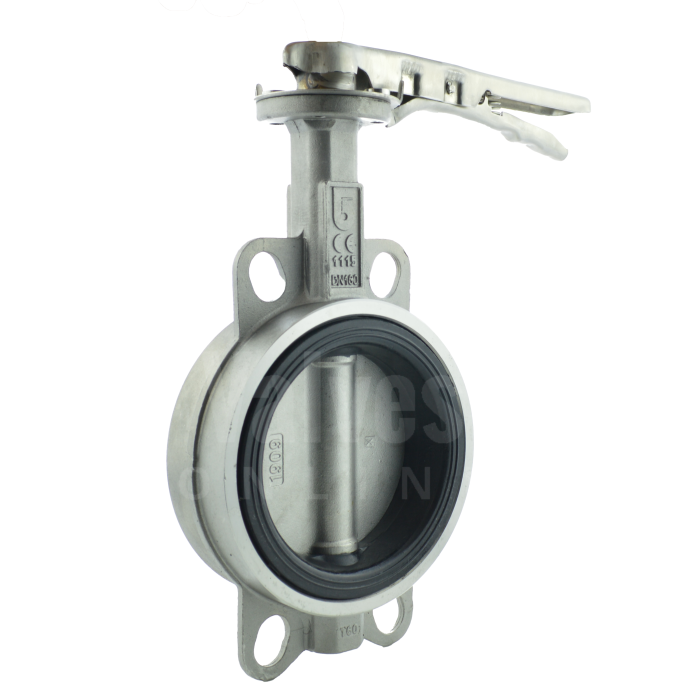

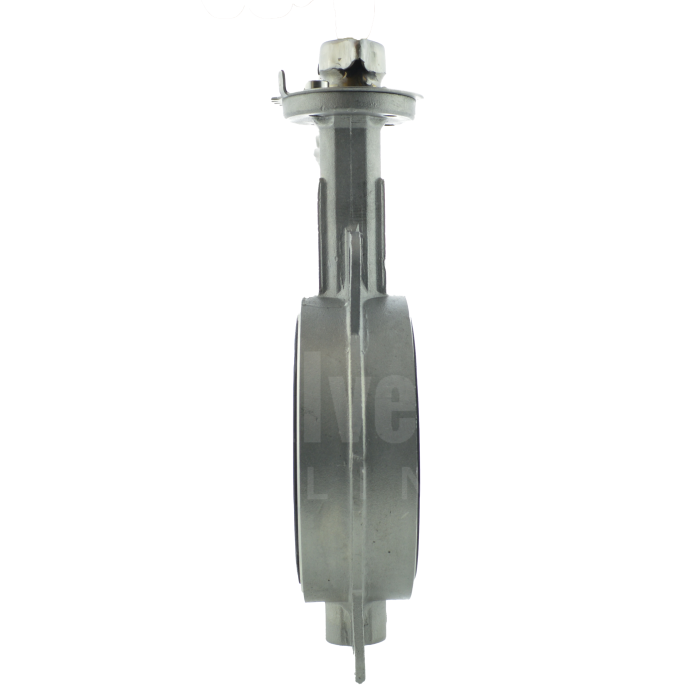

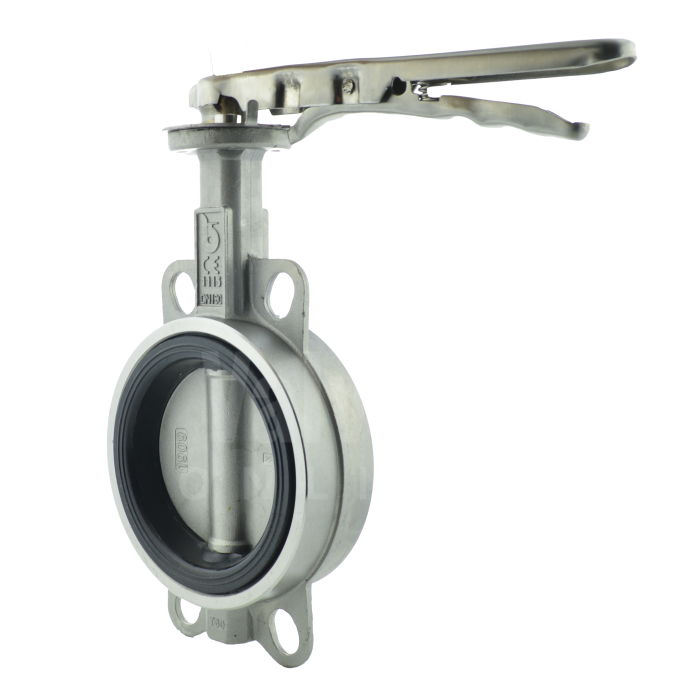

WRAS Approved EPDM Lined Stainless Steel Butterfly Valve
SKU BF5012
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Stainless Steel Butterfly Valve
- WRAS Approved Product
- 316 Stainless Steel body, shaft & disc
- Wafer Pattern
- EPDM Liner
- Lever or Gearbox operator
- Sizes: 2" to 8"
- To fit between PN6/10/16, ANSI 150, Table D & Table E flanges
- Suitable for Potable Water
Description
Our WRAS Approved Stainless Steel Butterfly Valve is suitable for a wide range of processes including water treatment, drinking water, chemical, process and aggressive or corrosive environments, where the aseptic value of Stainless Steel is a requirement.
A reliable manual butterfly valve featuring a 316 Stainless Steel body, shaft and disc with EPDM liner and an ISO mounting top for actuation.
Our Stainless steel Butterfly valves are maintenance free, economical and suitable to fit between PN6/10/16, ANSI 150, Table D and Table E flanges.
Butterfly valve lock out is ideal for process and semi aggressive fluid applications.
Complies with 97/23/CE (PED) Directive CE 1115.
Electric or pneumatic actuation available with a choice of options including solenoid and/or switchbox.
Technical specification
- Design
- Wafer
- Flange Accommodation
- PN6, PN10, PN16, ANSI 150, Table D, Table E
- Body Material
- Stainless Steel, Stainless Steel 316L
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
- Disc Material
- Stainless Steel 316L
- Liner
- EPDM
- Industry / Approvals
- WRAS, HVAC
