VOLT
Wafer Pattern Butterfly Valve
SKU BF5009
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Epoxy coated ductile iron body
- Nickel Plated Ductile Iron Disc
- Wafer Pattern
- Lever or Gearbox operator
- NBR (Buna) liner
- Sizes: 2" to 6"
- To fit between PN6/10/16, ANSI 150, Table D & Table E flanges
Description
Our Wafer Pattern Butterfly Valve forms part of our VOLT range of manual valves and is suitable for a range of general purpose, HVAC and industrial applications; isolation, heating and conditioning (HVAC) and media including compressed air, gas, oils and hydrocarbons. A reliable low cost butterfly valve featuring an epoxy coated Ductile Iron body, Nickel Plated Ductile Iron Disc, NBR (Buna) liner and ISO 5211 mounting top for actuation.
VOLT butterfly valves are maintenance free, economical and comply with 97/23/CE (PED) Directive CE 1115.
Suitable to fit between PN6/10/16, ANSI 150, Table D and Table E flanges.
Additional sizes available upon request from 1/2" up to 24" (POA).
Technical specification
- Design
- Wafer
- Flange Accommodation
- PN6, PN10, PN16, ANSI 150, Table D, Table E
- Body Material
- Ductile Iron
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
- Disc Material
- Nickel Plated
- Liner
- NBR (BUNA)
- Industry / Approvals
- HVAC
- Main Features
- 2" to 6" Fits between PN6/10/16, ANSI 150, Table D & Table E Flanges NBR (BUNA) Liner
Related products
VOLTSKU VL1021

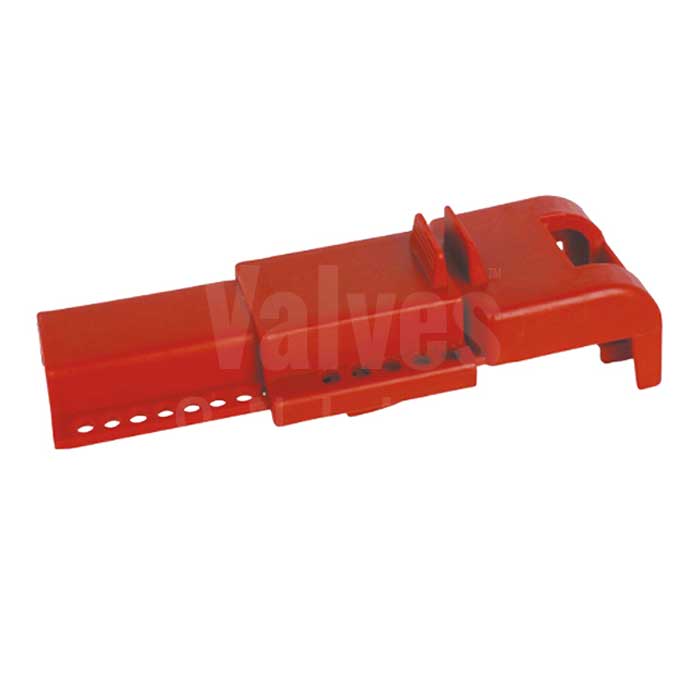

Butterfly Valve Lockout
VOLTSKU BF5019

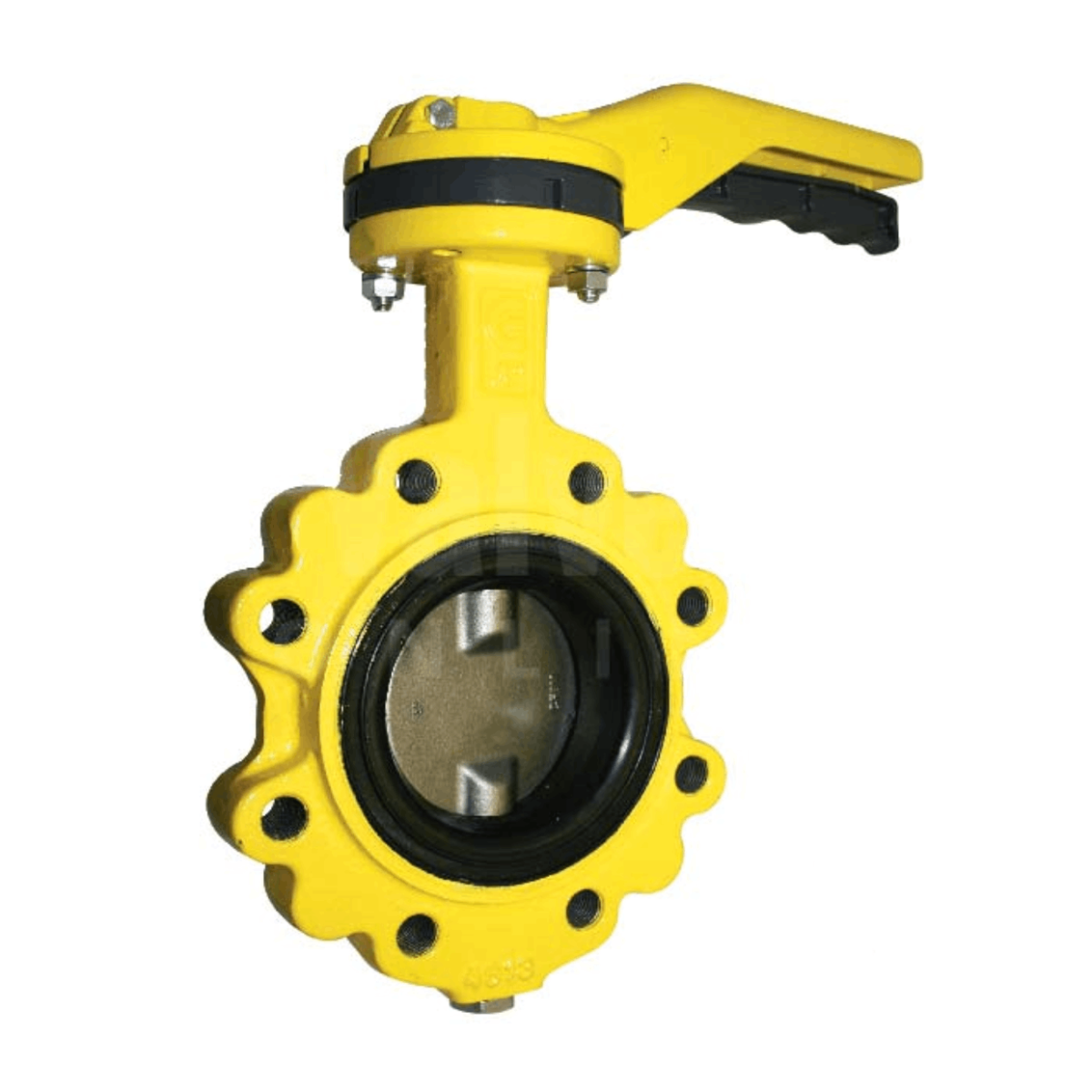

Ductile Iron Butterfly Valve BSI Gas Approved
VOLTSKU BF4603

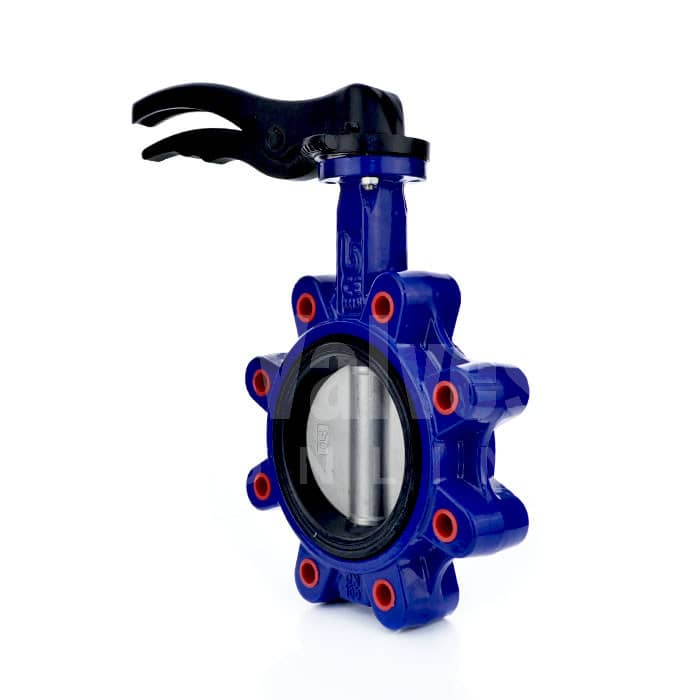

Ductile Iron Lugged Butterfly Valve - FKM Liner
