VOLT

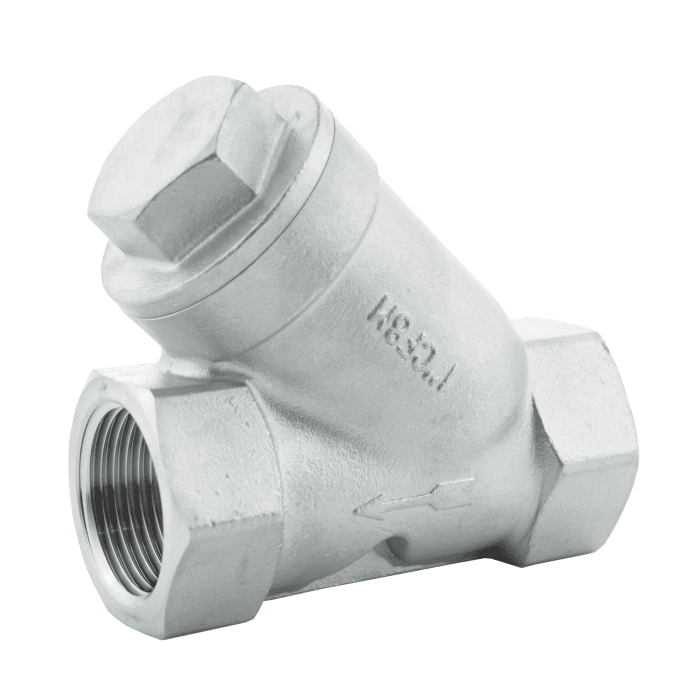

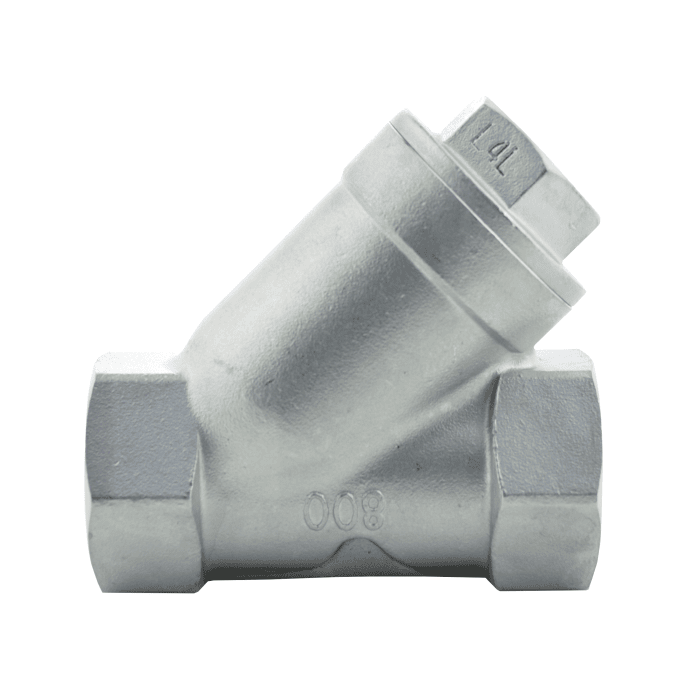

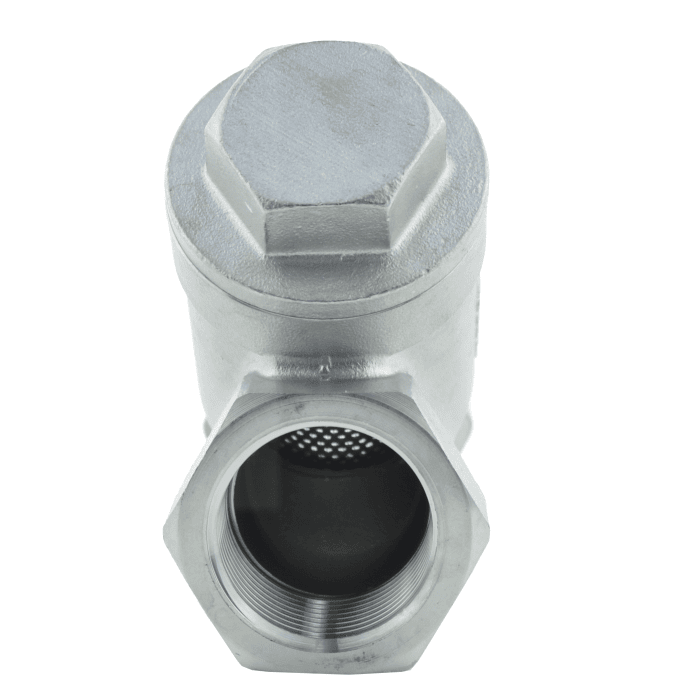

Stainless Steel Y Type Strainer Screwed
SKU YS5037
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Y Type Strainer
- 1mm screen mesh
- 316 Stainless Steel (CF8M) body
- Screwed BSPP, NPT or Socket Weld
- Sizes: 1/4" to 4"
Description
Our Stainless Steel Y Type Strainer Screwed is compact, easy to clean and features a removable drain plug and 316 Stainless Steel 1mm screen mesh with 2mm pitch. It provides an economical solution and is recommended for applications where damage to valves and other related mechanical equipment needs to be avoided.
Pipeline debris including dirt and scale is often the cause of failure, damage, energy loss and a reduction in productivity.
Suitable for semi aggressive applications found in chemical and process industries.
The installation of a strainer is always recommended to ensure trouble-free service.
Technical specification
- End Connection
- BSP, NPT, Socket Weld
- Body Material
- Stainless Steel 316
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Filtration
- 1mm (Mesh 19)
- Design
- Y Type
- Industry / Approvals
- Liquid
- Main Features
- 316 Stainless Steel (CF8M) body Screwed BSPP, NPT or Socket Weld Sizes: 1/4" to 4"
