VOLT

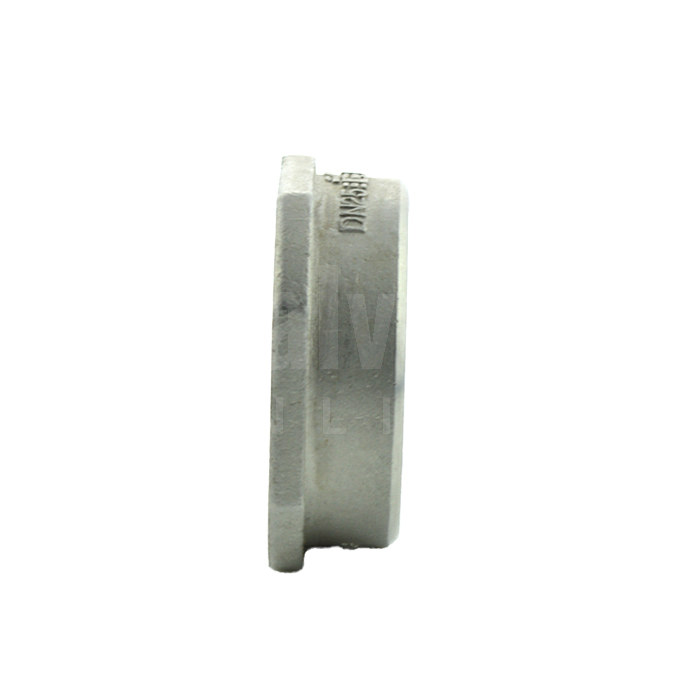

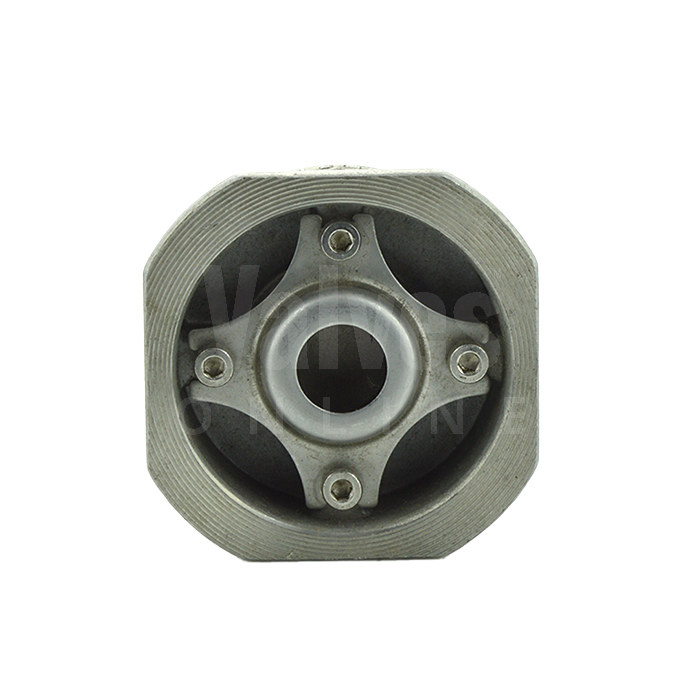

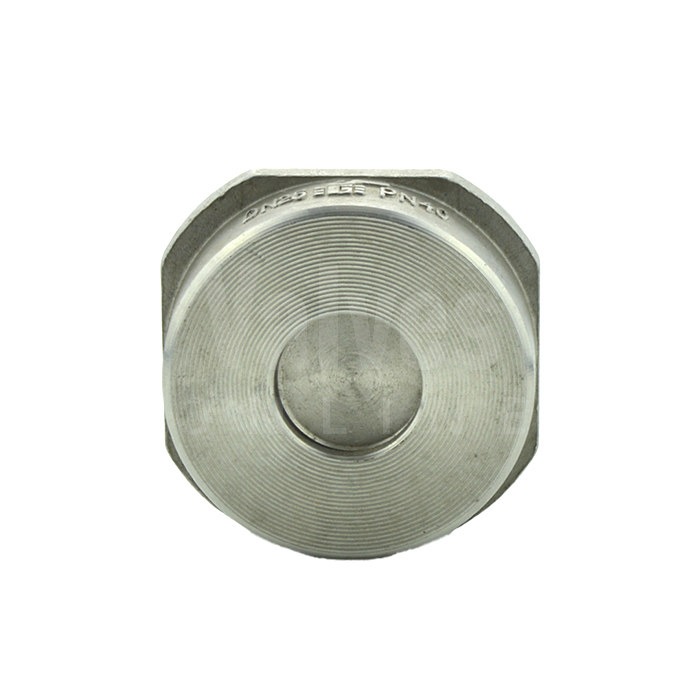

Stainless Steel Spring Disc Check Valve Wafer Pattern
SKU CV5175
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Wafer Spring Disc Check Valve
- Stainless Steel Body & Disc
- Wafer Pattern
- To Suit PN16/25/40, ANSI150 Flanges
- Sizes: 1/2" to 4"
- Economical
Description
Our Stainless Steel Wafer Pattern Spring Disc Check Valve, offers excellent sealing capabilities for both high and low pressures, used in general industrial and HVAC applications include water, steam, heating, air-conditioning plants and compressed air systems. An economical, space saving spring loaded valve with Stainless Steel body and metal seal.
Installed either vertically (upwards only) or horizontally.
For full details please download the accompanying datasheet.
Stainless Steel Spring Disc Check Valve Wafer Pattern Datasheet
Technical specification
- End Connection
- Wafer Pattern
- Design / Type
- Disc Check, Spring Check
- Industry / Approvals
- HVAC
- Body Material
- Stainless Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Main Features
- 1/2" to 4" 0°C to 200°C Rated Up to 40 Bar
