VOLT
Stainless Steel Spring Check Valve Screwed BSP
SKU CV4660
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Spring Check Valve
- Stainless Steel Body
- PTFE Seal
- Heavy Duty
- Screwed BSP
- Spring Check or Foot Valve
- Sizes 1/4" to 2"
- Temperature range: -20°C to 120°C
- Pressure rating: up to 20 Bar
Description

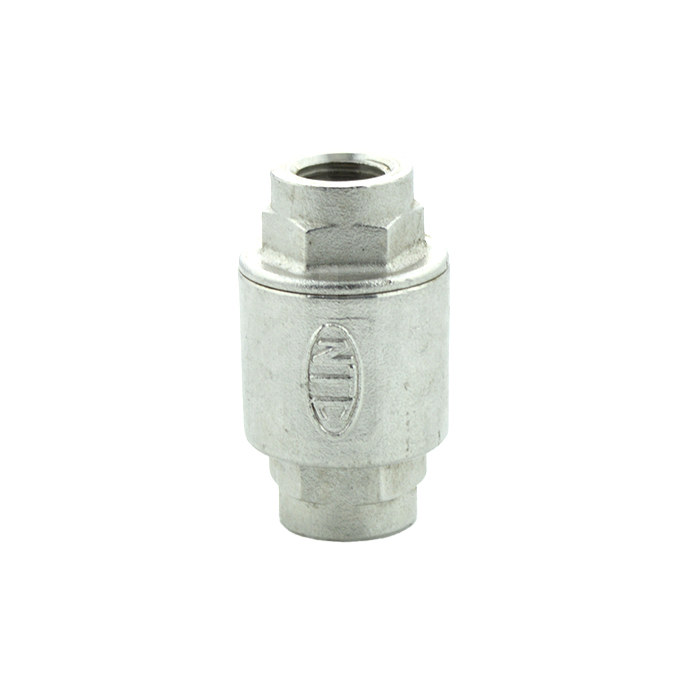

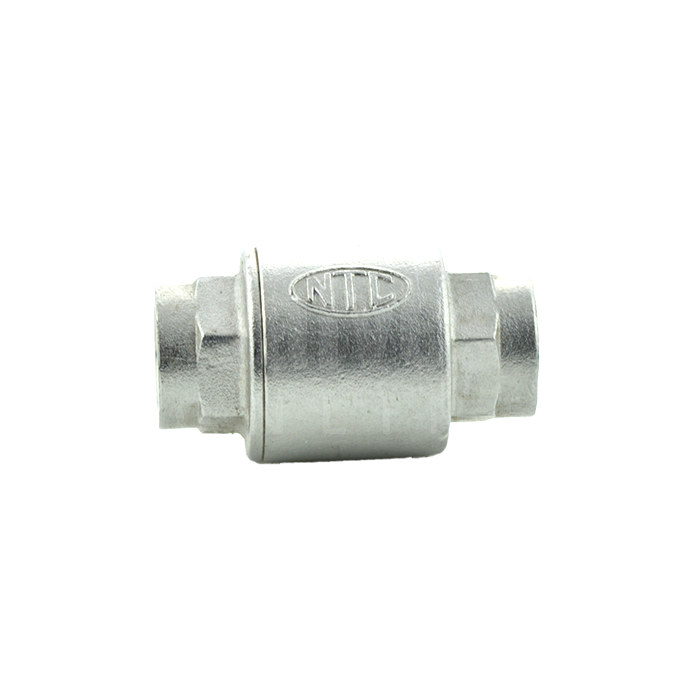

Our Stainless steel spring check valve with screwed BSP connections, offers excellent sealing capabilities for both high and low pressures. Mildly corrosive applications are ideal for this stainless steel valve in water treatment, heating, air-conditioning plants and process systems.
This valve offers substantial advantages over other spring check valves that are available.
A reliable and robust non return valve featuring a 2 piece body, PTFE seal and Viton seat.

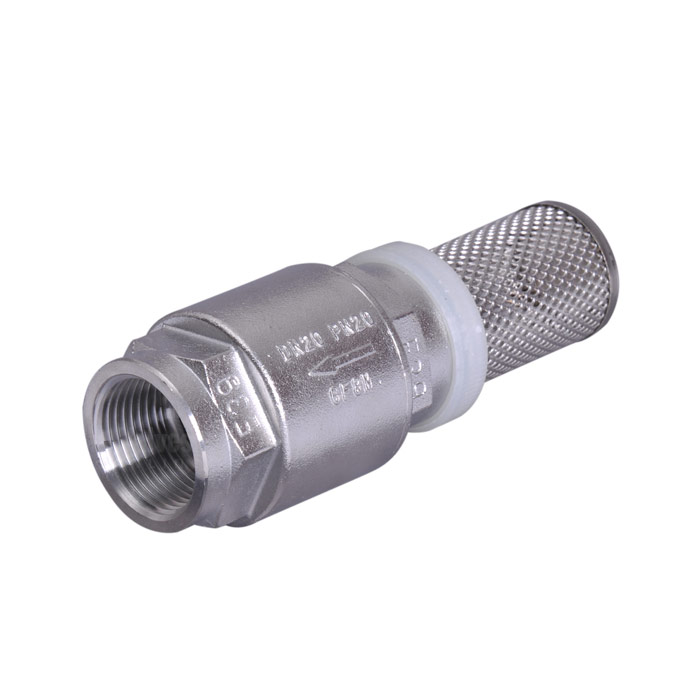

When fitted with a Stainless Steel basket the valve becomes a fully functional Foot Valve.
Installed either vertically (upwards only) or horizontally.
For full details please download the accompanying datasheet.
Stainless Steel Spring Check Valve Screwed BSP Datasheet
Technical specification
- End Connection
- BSP
- Design / Type
- Spring Check, Foot Valve
- Industry / Approvals
- HVAC
- Body Material
- Stainless Steel
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Main Features
- 1/4" to 2" -20°C to 120°C Up to 20 Bar Rated
