VOLT

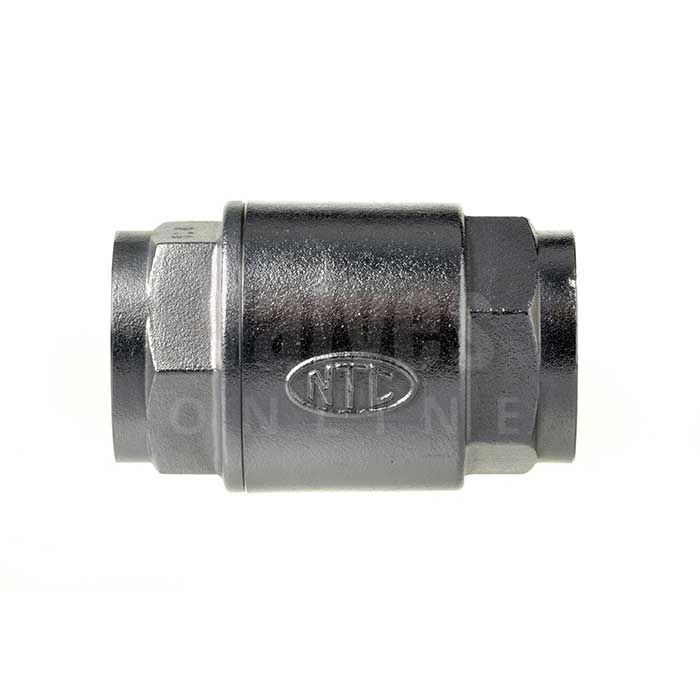

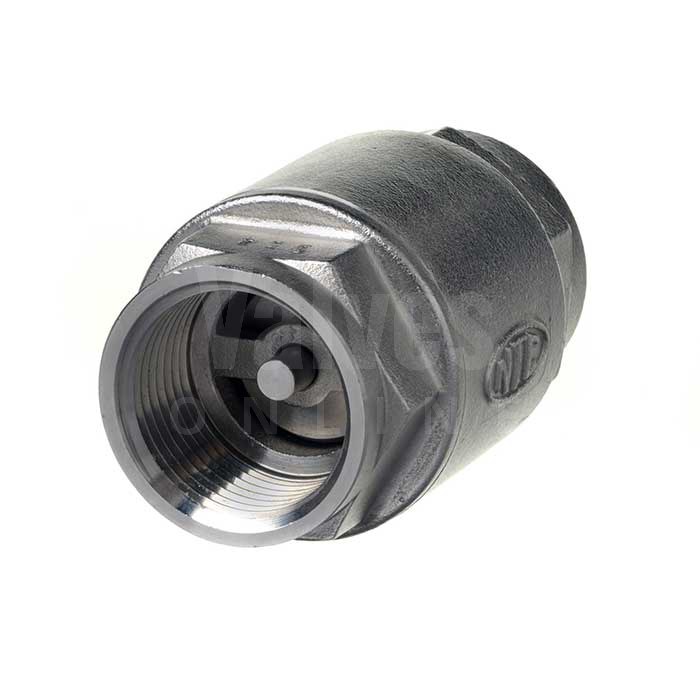

Stainless Steel Spring Check Valve High Pressure Screwed BSP
SKU CV4680
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Barrel Type Spring Check Valve
- High Pressure
- High Performance with Quiet Operation
- Stainless Steel Body
- Metal Seat
- Screwed BSP
- Sizes 1/2" to 2"
- Pressure Rated 69 Bar (1000 PSI)
- Temperature -25°C to + 250°C
Description
Our stainless-steel spring check valve is high pressure, with screwed BSP end connections. it offers excellent sealing capabilities in general purpose, industrial applications include water, heating, air-conditioning plants and high temperature lines systems (especially where elevated temperatures are involved such as steam and thermal fluid applications).
A reliable and robust, heavy duty non return valve featuring a 2-piece body, PPL body seal and metal seat.
Installed either vertically (upwards only) or horizontally.
We are able to offer full material certification to EN 10204 3.1.
For full details please download the accompanying datasheet.
Technical specification
- End Connection
- BSP
- Design / Type
- Spring Check
- Industry / Approvals
- High Pressure
- Body Material
- Stainless Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Main Features
- 1/2" to 2" -25°C to 260°C Up to 69 Bar
