VOLT

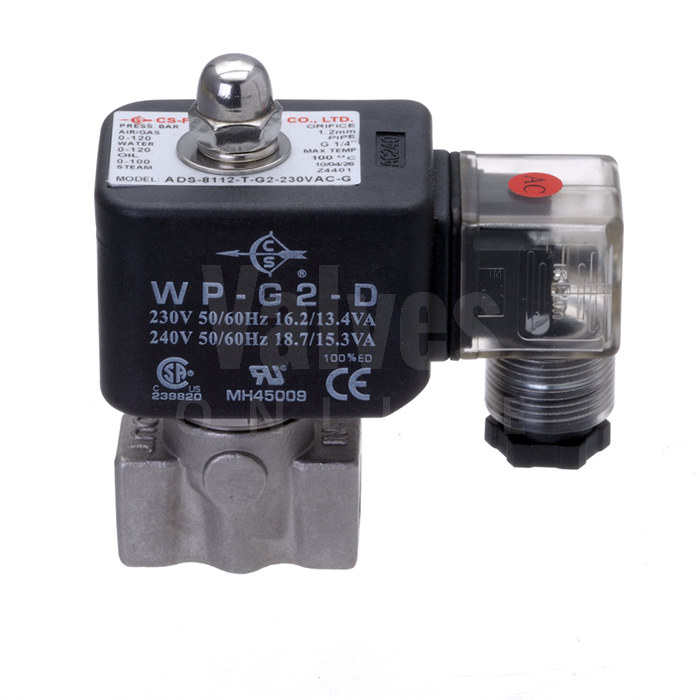

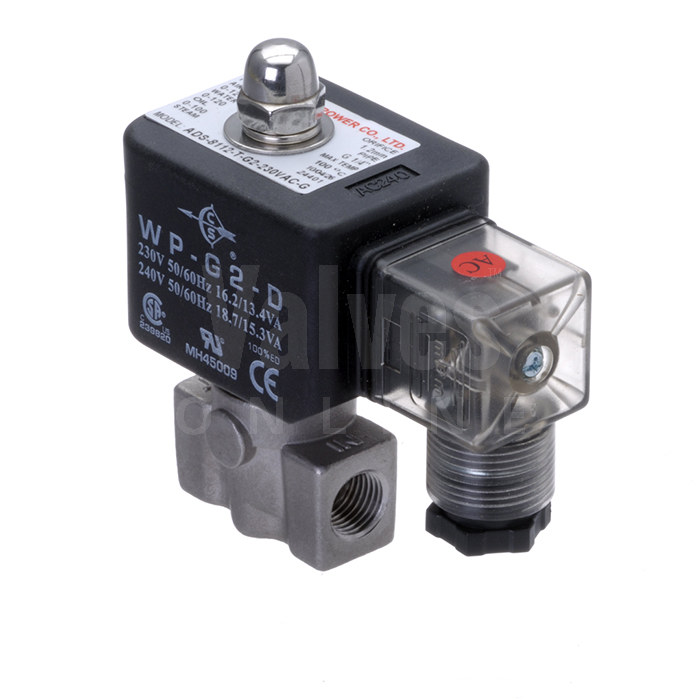

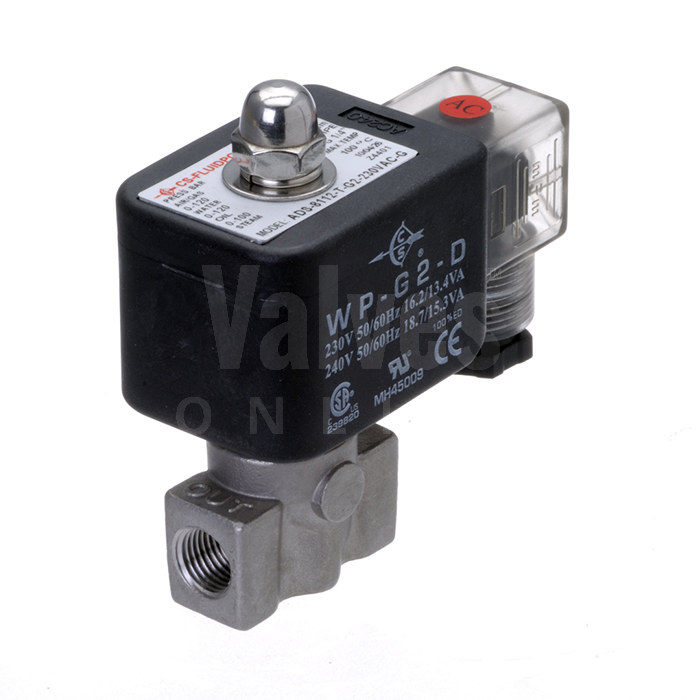

Stainless Steel Solenoid Valve 0 Bar Rated Direct Acting
SKU SV5220
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Economically Priced
- Normally Closed Function
- CF8M 316 Stainless Steel body
- FKM or PTFE seals
- Sizes: 1/4" to 1/2"
- Voltage: 24V AC to 230V DC
- Media: Air, Water, Gas & Light Oil
- Supplied with Plug Connector
Description
The SV5220 is a very reliable Direct Acting Stainless Steel Solenoid Valve, specifically designed for pressures up to 15 Bar. Used on many applications with media such as, air, water, natural gas, light oils and slightly contaminated or aggressive fluids.
Offered in 1/4" up to 1/4" screwed BSP with the option of NPT. The valve has options for various seals. The valve should be mounted with the coil in the upright position and opening / closing time 20 milli second. Maximum media viscosity is 50 centistokes.
Options are available for ATEX Coils to be fitted on request.
Stainless Steel Solenoid Valve 0 Bar Rated Direct Acting Datasheet
Technical specification
- Process / Industry
- General Purpose
- Body Material
- Stainless Steel
- Design
- 2 Way
- Function
- Normally Closed
- Port Size
- 1/4", 3/8", 1/2"
- Seal Material
- FKM, PTFE
- Voltage
- 24V DC, 24V AC, 110V AC, 230V AC
- Main Features
- CF8M 316 Stainless Steel body FKM or PTFE seals Sizes: 1/4" to 1/2"
