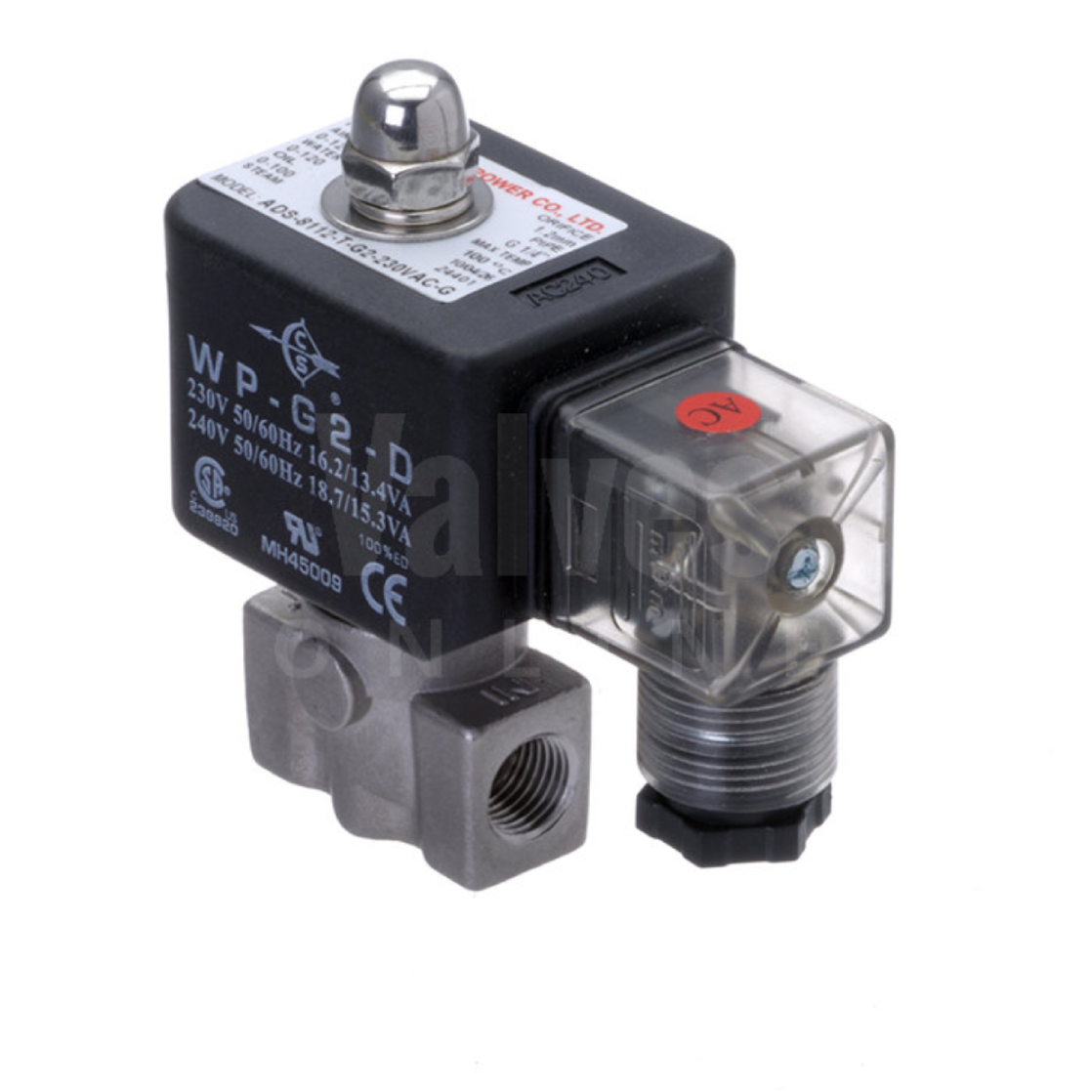

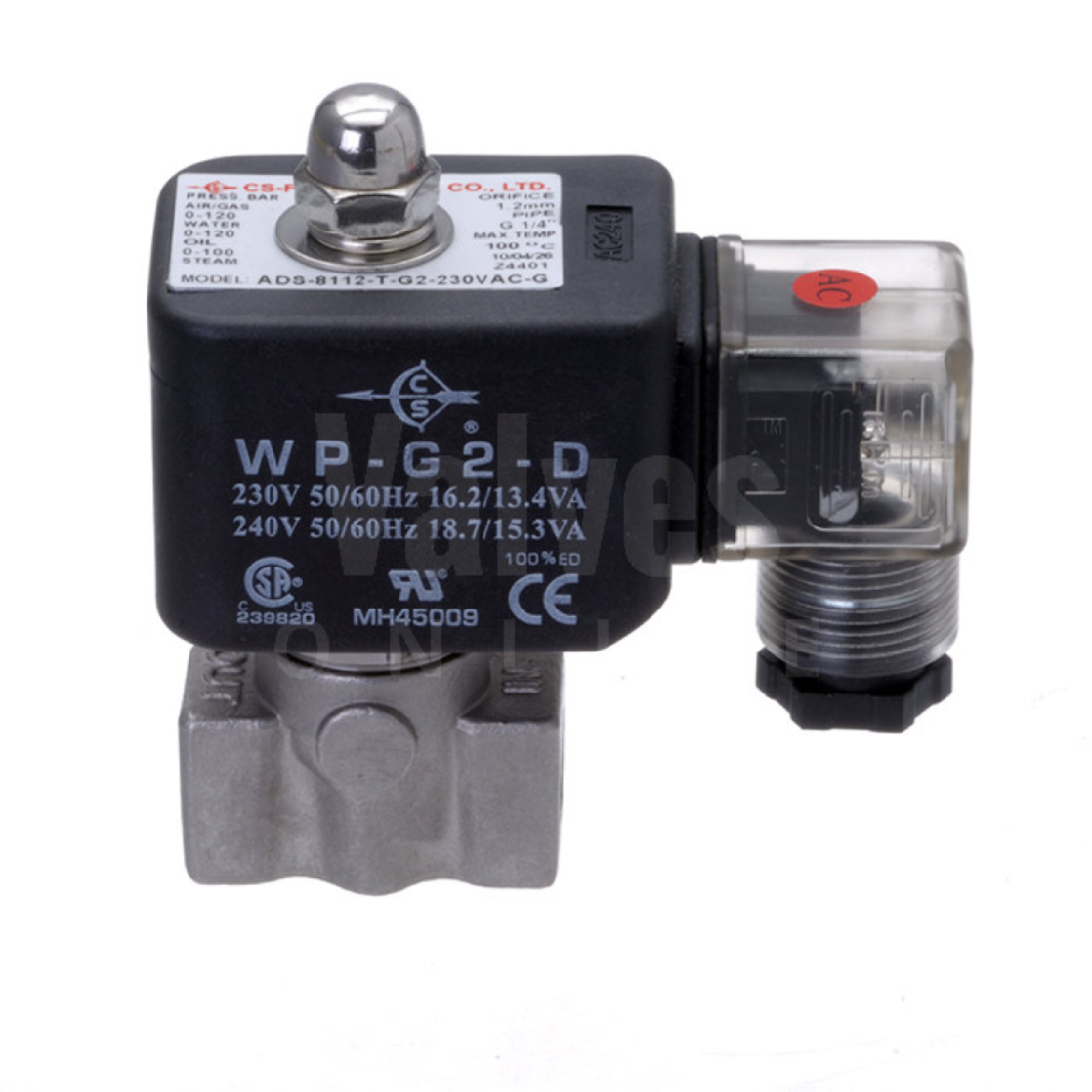

2/2 Stainless Steel Solenoid Valve 1-100 Bar Rated High Pressure - Size: 1/8" - 3/8" Servo Assisted
SKU SV5229
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- VOLT Servo Assisted Stainless Steel Solenoid Valve
- Servo Assisted, Normally Closed (NC)
- 316 Stainless Steel (CF8M) Body
- PTFE/NBR Seals/Gaskets -30°C to 100°C
- Size: 1/8" - 3/8" BSPP
- Media temperature: 100 °C
- Pressure rating up to 1-100 Bar
- Voltage: 24V DC, 24V AC, 110V AC & 230V AC
- Suitable for use with gasses such as compressed air and natural gas, light oils and water
- IP65 Rated
Description
Our 316 Stainless Steel (CF8M) High Pressure Solenoid Valve is rated up to 0-100 Bar, see selector.
Available in 1/8" - 3/8" screwed BSPP connections, with stainless steel body and PTFE seals, it is suitable for use with gasses such as compressed air and natural gas, light oils and water.
Featuring a normally closed function, 1-100 Bar, servo assisted, which must have 1 bar differential pressure to allow the valve to operate.
Stainless Steel Solenoid Valve 0-100 Bar Rated High Pressure Datasheet
*To help you select the correct solenoid valve please use the data found on our Technical Information tab.
Technical specification
- Process / Industry
- High Pressure
- Body Material
- Stainless Steel
- Design
- 2 Way
- Function
- Normally Closed
- Port Size
- 1/8", 1/4", 3/8"
- Seal Material
- PTFE
- Voltage
- 24V DC, 24V AC, 110V AC, 230V AC
- Main Features
- Temperature up to 100°C 1 – 100 Bar 1/8” – 3/8”
