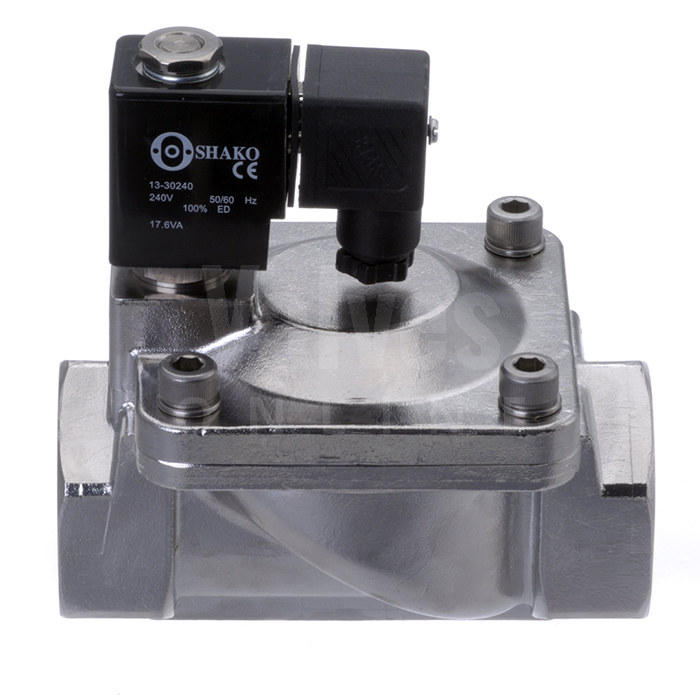

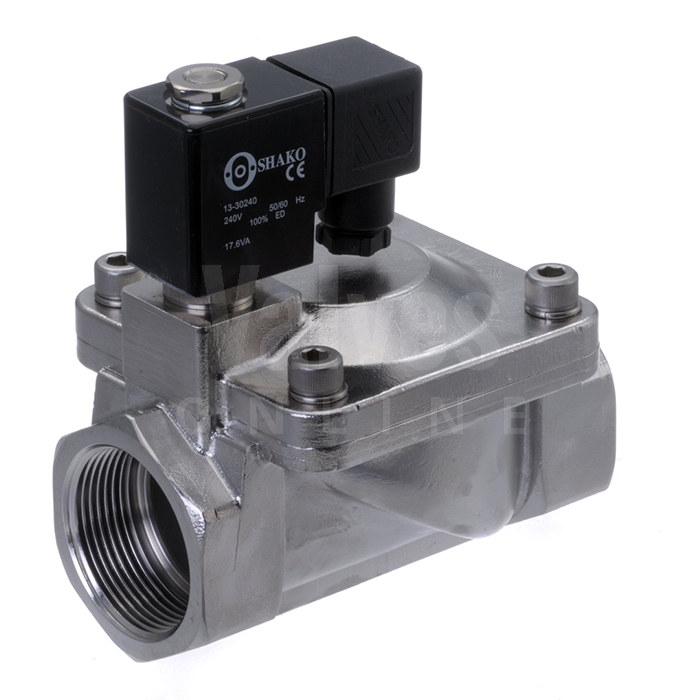

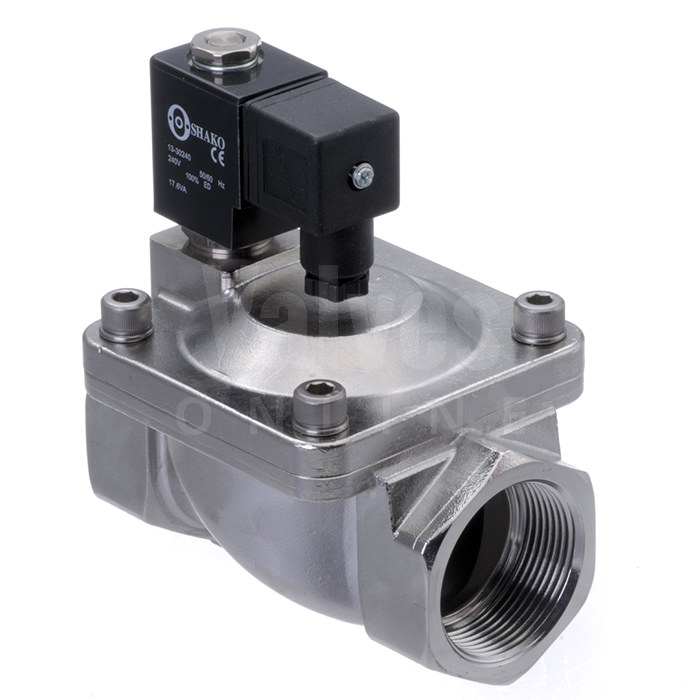

316 Stainless Steel Solenoid Valve Servo Assisted
SKU SV5221
from£174.74ex VAT Not the right one? Identify your valve by photo
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Servo Assisted, Normally Closed, 2 Way
- 316 Stainless Steel Body (CF8M)
- NBR, FKM or EPDM Seal Options
- Sizes: 3/8" to 2" BSP
- Pressure rating 0.5-10 Bar
- Voltage: 24V AC to 230V DC
- Supplied with Plug
- General Purpose suitable for use with fluids and neutral gasses
Description
Our Stainless Solenoid Valve Servo Assisted is offered in sizes from 3/8" to 2". It is designed for use with neutral gases and slightly corrosive and mildly aggressive fluids. Applications that include chemical process, pumping systems, processing systems, water/sewage treatment and sterilizers.
Normally Closed function, 2 Way servo assisted 0.5 to 10 Bar, solenoid valve consisting of a Stainless Steel body and options of NBR, FKM or EPDM seals.
Offers high flow rates and low noise; requiring a minimum differential pressure of 0.5 Bar to operate fully. Can be fitted with ATEX Coil.
Technical specification
- Process / Industry
- General Purpose
- Body Material
- Stainless Steel
- Design
- 2 Way
- Function
- Normally Closed
- Port Size
- 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
- Seal Material
- NBR, FKM, EPDM
- Voltage
- 24V DC, 24V AC, 110V AC, 230V AC
- Main Features
- 0.5 to 10 Bar 3/8" to 2" Normally Closed
