VOLT

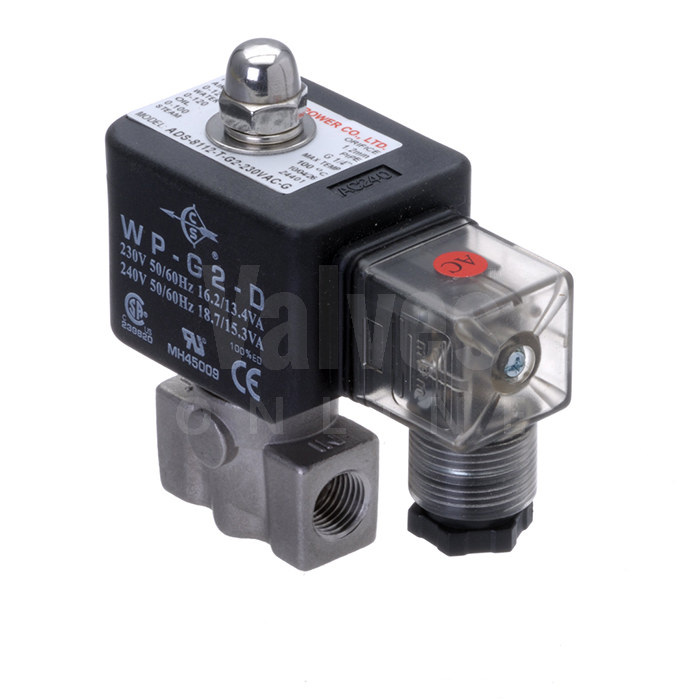

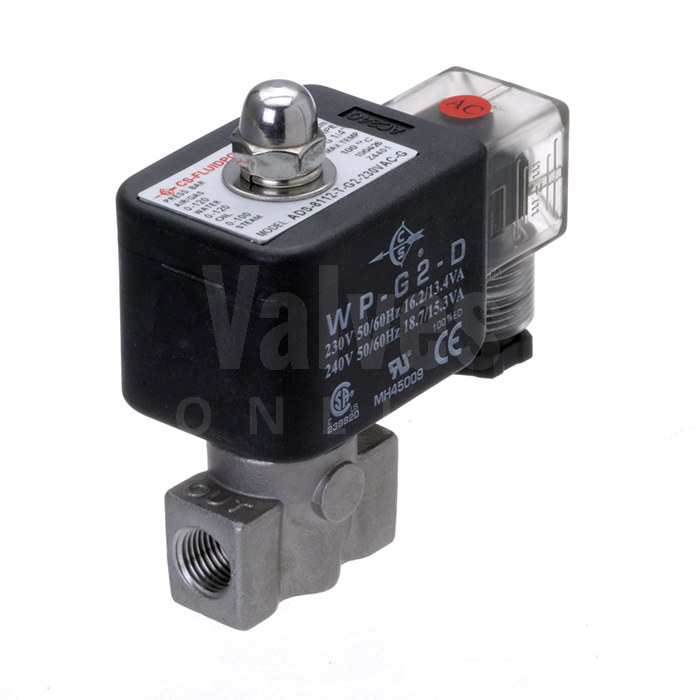

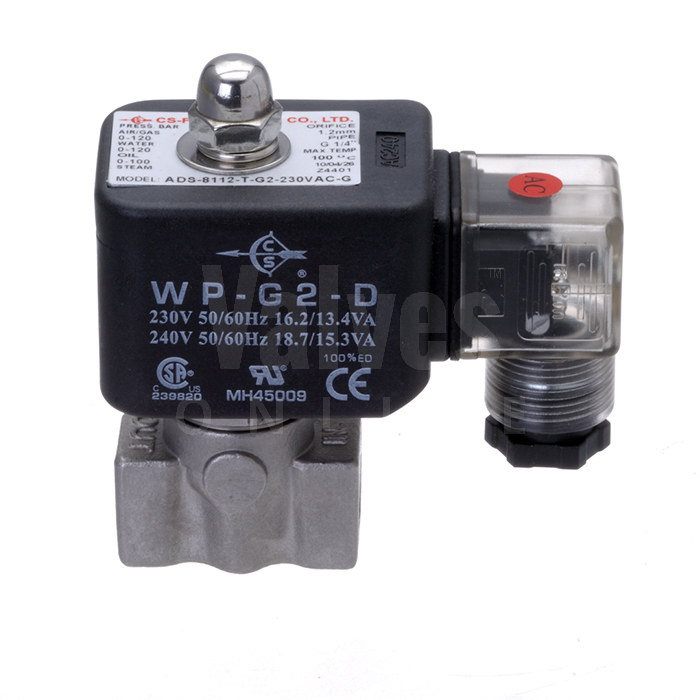

Stainless Steel Solenoid Valve 0-150 Bar Rated High Pressure - Size: 1/8"
SKU SV5227
from£202.02ex VAT Not the right one? Identify your valve by photo
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- VOLT Stainless Steel High Pressure Solenoid Valve
- Direct Acting, Normally Closed (NC)
- 316 Stainless Steel (CF8M) Body
- PTFE Seals up to 180°C
- Size: 1/8" BSPP
- Media temperature: 180°C
- Pressure rating up to: 0-150 Bar
- Voltage: 24V DC, 24V AC, 110V AC & 230V AC
- Suitable for use with gasses such as compressed air and natural gas, light oils and water
- IP65 Rated
Description
Our Stainless Steel High Pressure Solenoid Valve is rated up to 0-150 Bar, see selector.
It is available in 1/8" screwed BSPP and is suitable for use with gasses such as compressed air and natural gas, light oils and water.
A normally closed function, 0-150 Bar direct acting solenoid valve, which allows the valve to operate from zero pressure and consists of a 316 Stainless Steel body and PTFE seals.
Stainless Steel Solenoid Valve 0-150 Bar Rated High Pressure Datasheet
*To help you select the correct solenoid valve please use the data found on our Technical Information tab.
Technical specification
- Process / Industry
- High Pressure
- Body Material
- Stainless Steel
- Design
- 2 Way
- Function
- Normally Closed
- Port Size
- 1/8"
- Seal Material
- PTFE
- Voltage
- 24V DC, 24V AC, 110V AC, 230V AC
