VOLT

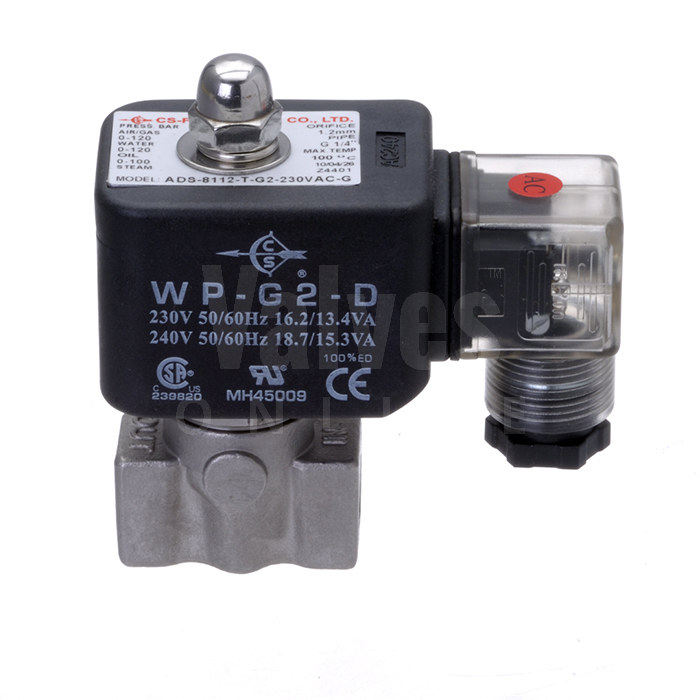

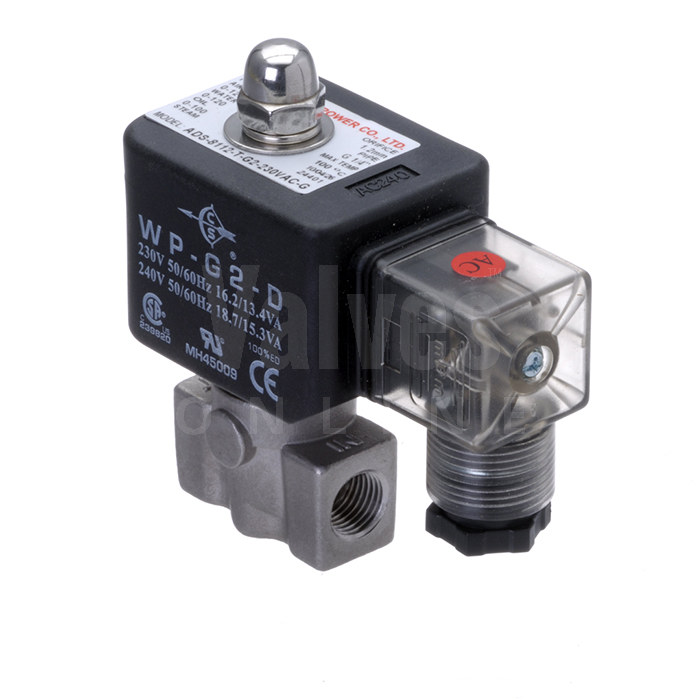

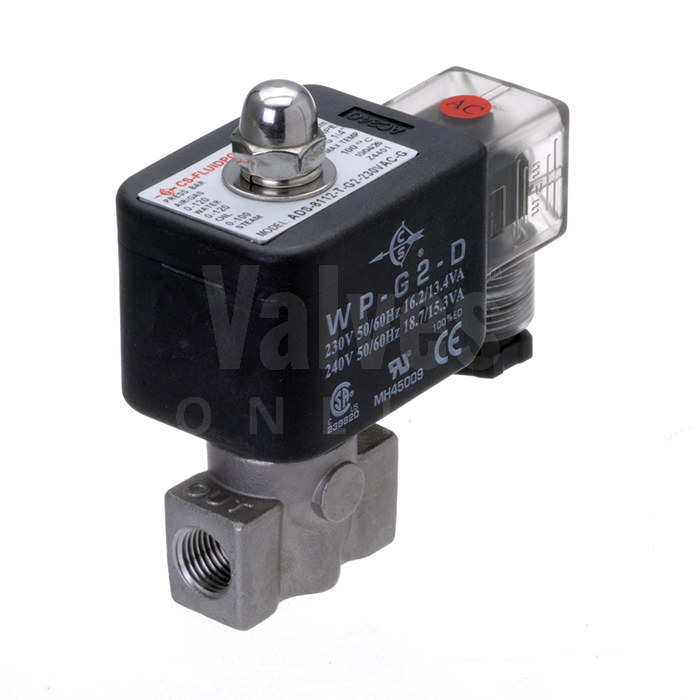

Stainless Steel Solenoid Valve 0-120 Bar Rated High Pressure - Size: 1/4"
SKU SV5228
from£202.02ex VAT Not the right one? Identify your valve by photo
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- VOLT Stainless Steel High Pressure Solenoid Valve
- Direct Acting, Normally Closed (NC)
- 316 Stainless Steel (CF8M) Body
- PTFE Seals up to 180°C
- Size: 1/4" BSPT
- Media temperature: 180°C
- Pressure rating up to 0-120 Bar
- Voltage: 24V DC, 24V AC, 110V AC & 230V AC
- Suitable for use with gasses such as compressed air and natural gas, light oils and water
- IP65 Rated
Description
Our 316 Stainless Steel High Pressure Solenoid Valve is rarated up to 0-120 Bar, see selector.
It is available with 1/4" screwed BSPT connections and is suitable for use with gasses such as compressed air and natural gas, light oils and water.
Featuring a normally closed function, 0-120 Bar, direct acting, which allows the valve to operate from zero pressure and consists of a 316 Stainless Steel body and PTFE seals.
Technical specification
- Process / Industry
- High Pressure
- Body Material
- Stainless Steel
- Design
- 2 Way
- Function
- Normally Closed
- Port Size
- 1/4"
- Seal Material
- PTFE
- Voltage
- 24V DC, 24V AC, 110V AC, 230V AC
